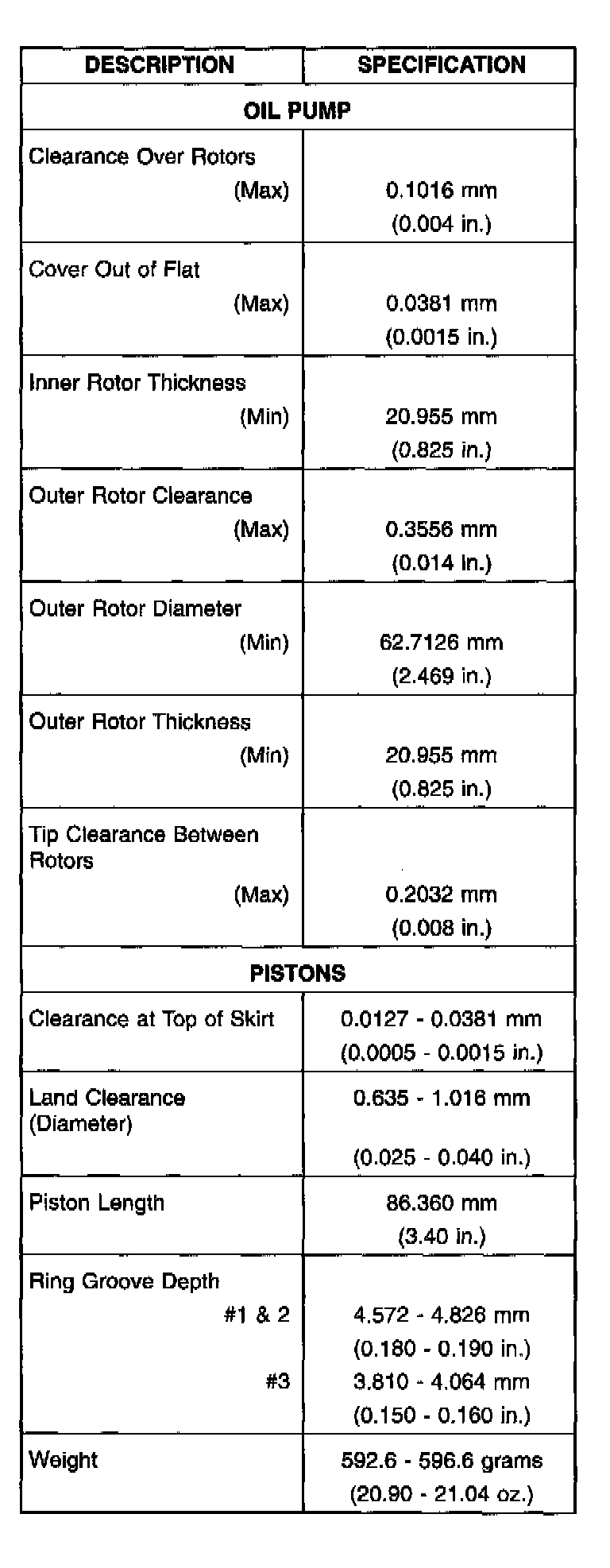

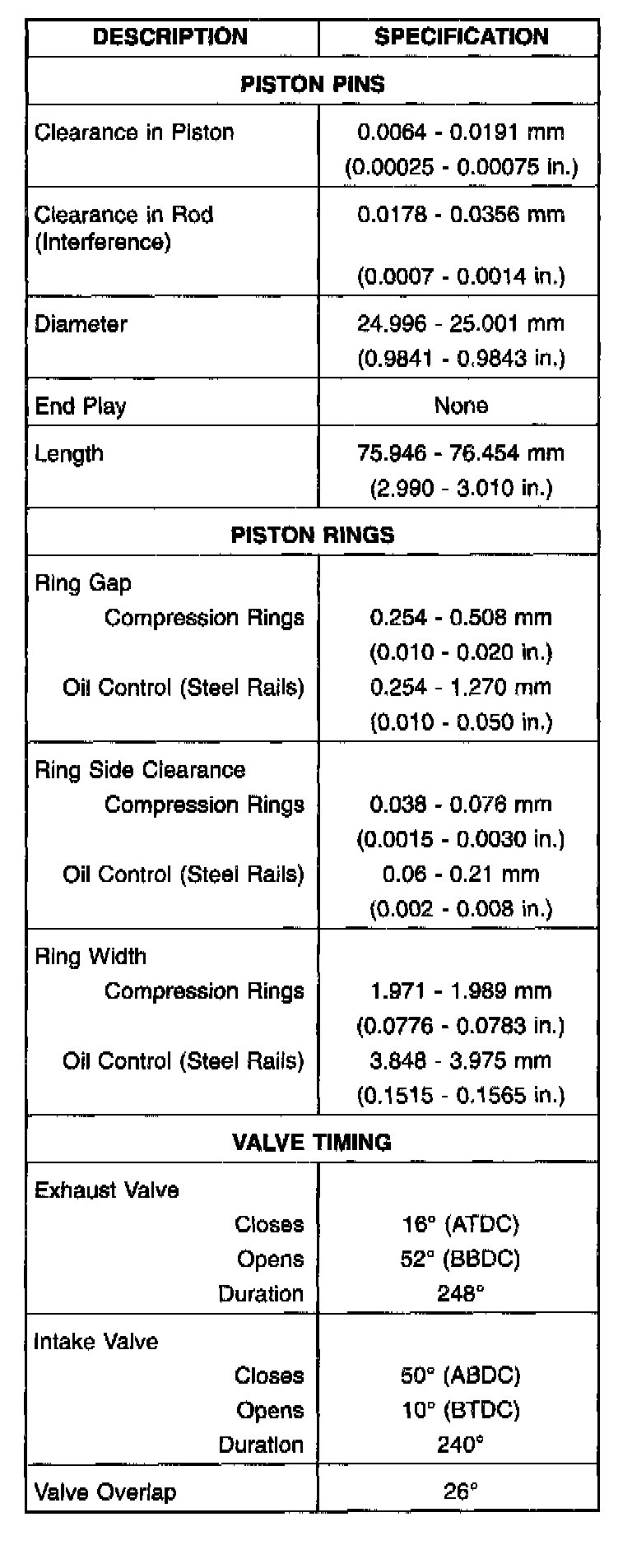

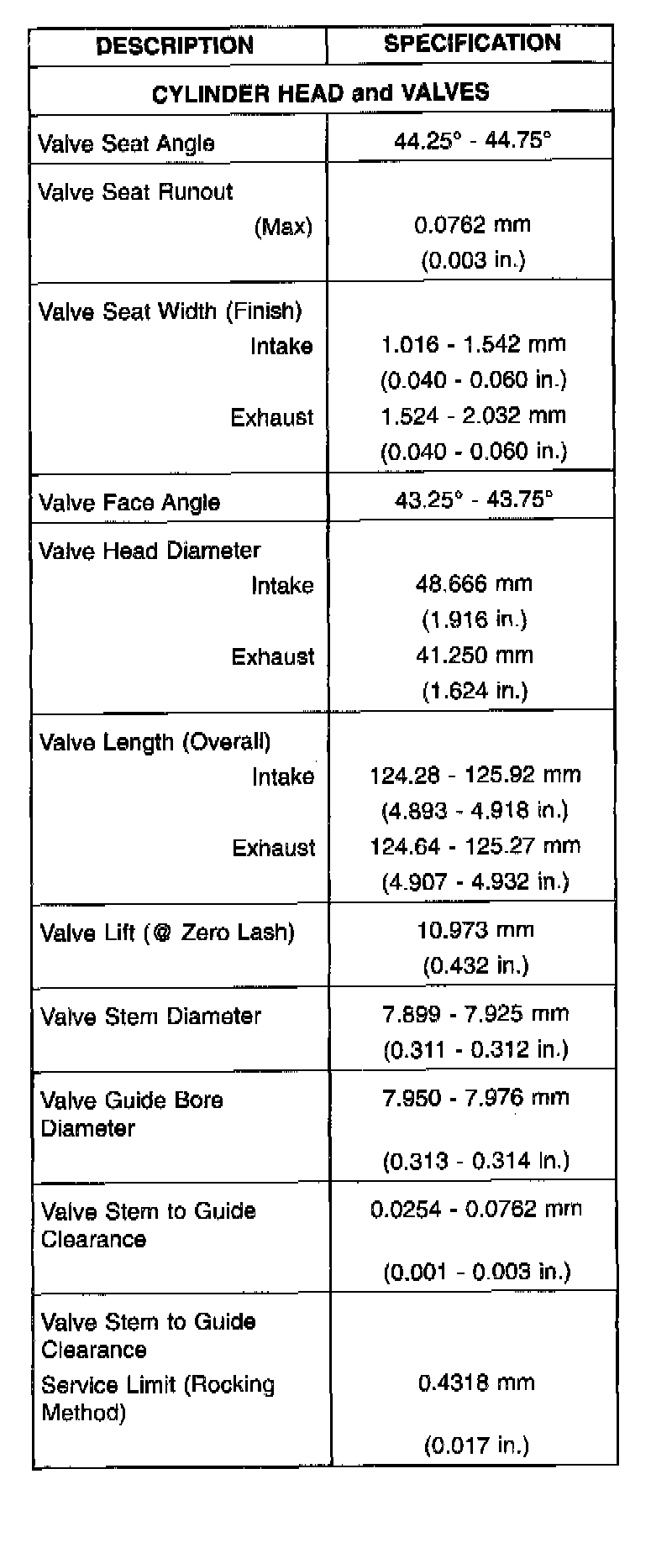

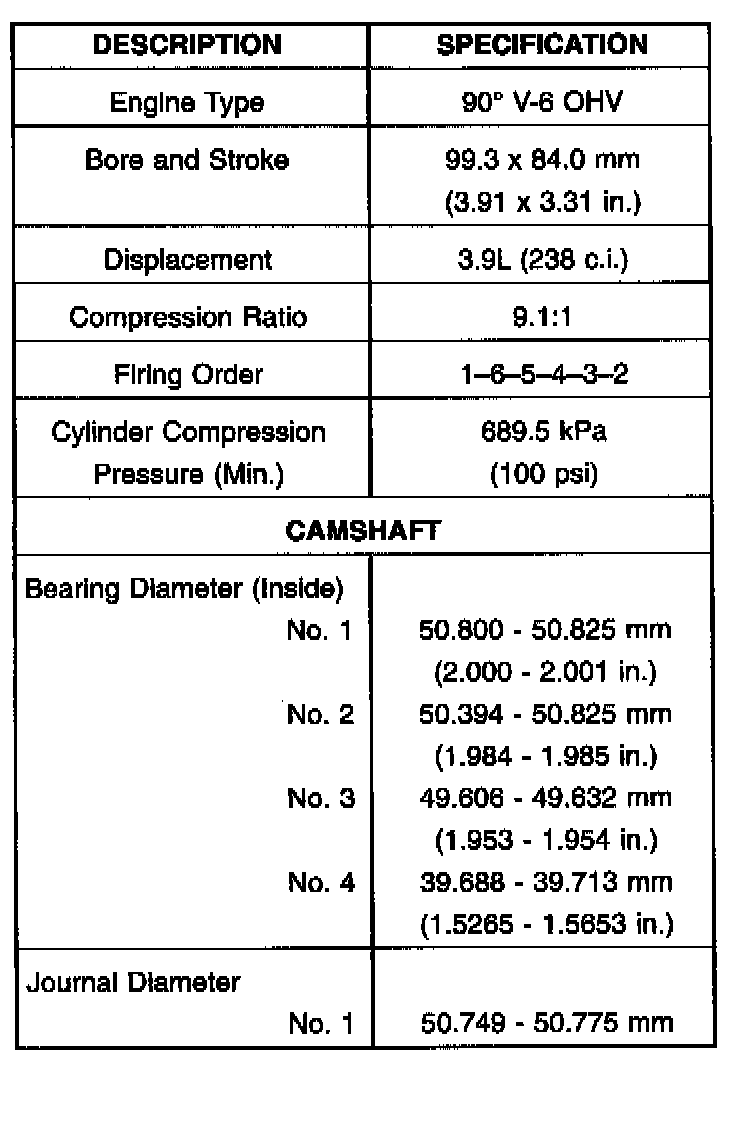

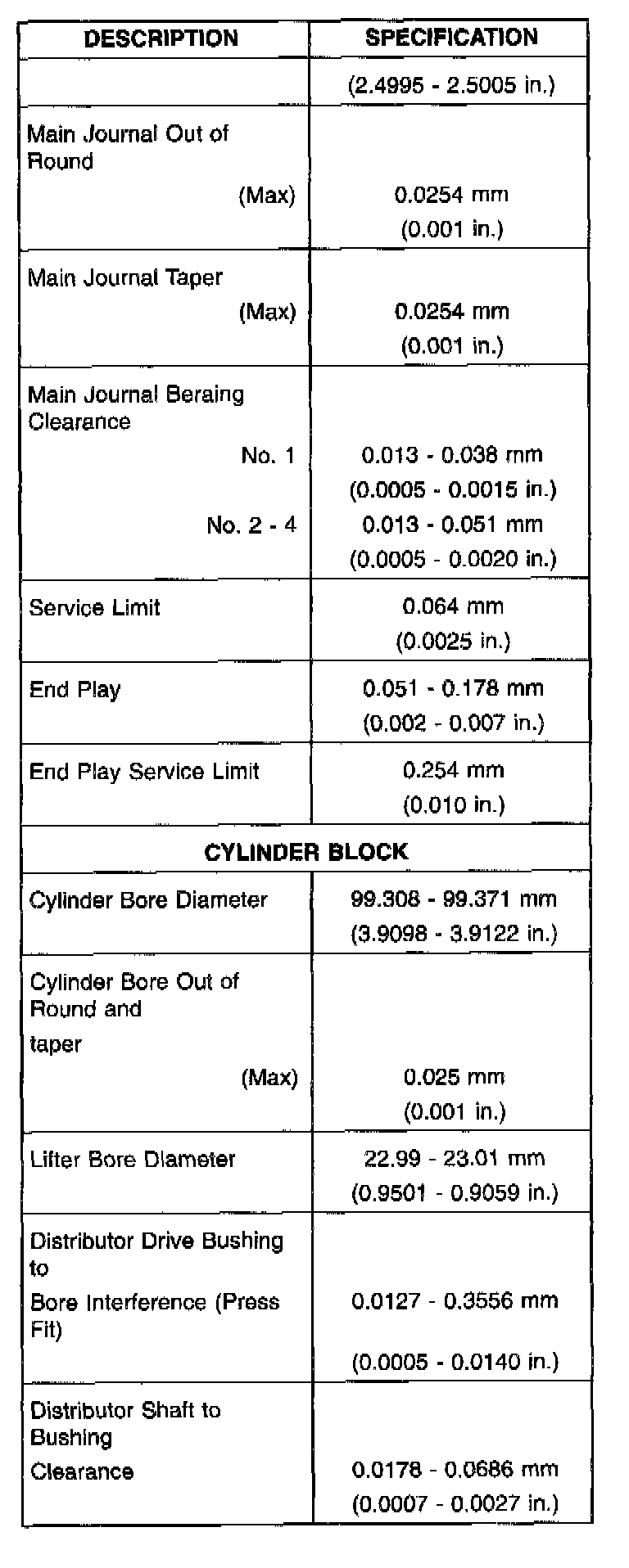

Engine Specifications

Part 1 Of 10:

Part 2 Of 10:

Part 3 Of 10:

Part 4 Of 10:

Part 5 Of 10:

Part 6 Of 10:

Part 7 Of 10:

Dimensional Specifications

Part 8 Of 10:

Oversize and Undersize Engine Component Marking Chart
