P1772

Test 1 Through 2:

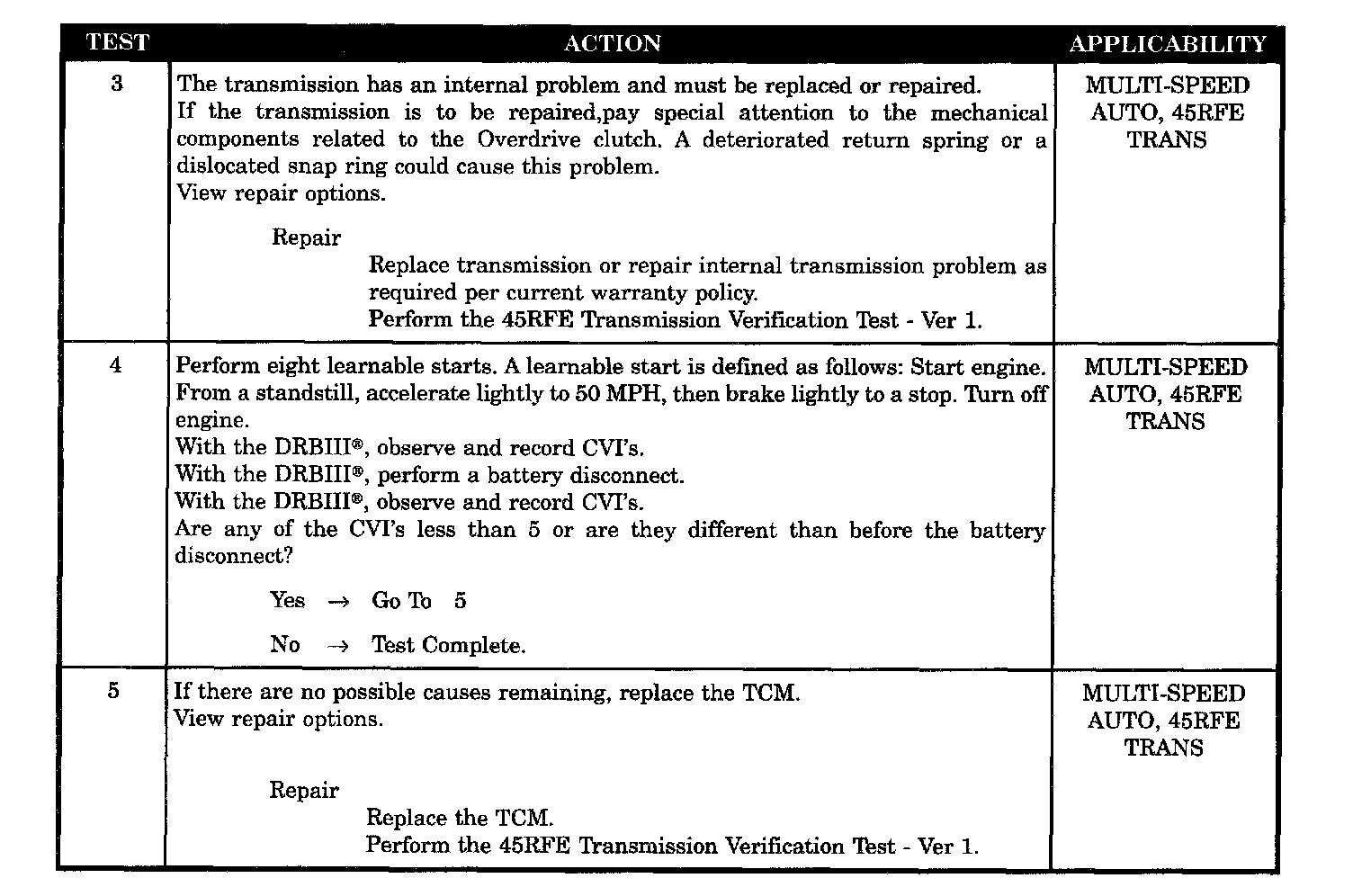

Test 3 Through 5:

Symptom:
P1772-INADEQUATE ELEMENT VOLUME OD

When Monitored and Set Condition
P1772-INADEQUATE ELEMENT VOLUME OD

When Monitored:Whenever the engine is running. The OD volume is updated during a 2-3 upshift with throttle angle between 5 and 54 degrees. Trans temp must be at least 110°F.

Set Condition: When the OD volume falls below 6.

POSSIBLE CAUSES
INCORRECT FLUID LEVEL
INTERNAL TRANSMISSION PROBLEM - OD VOLUME LOW
TCM- OD VOLUME LOW
