Safety Latch

SAFETY LATCH

REMOVAL

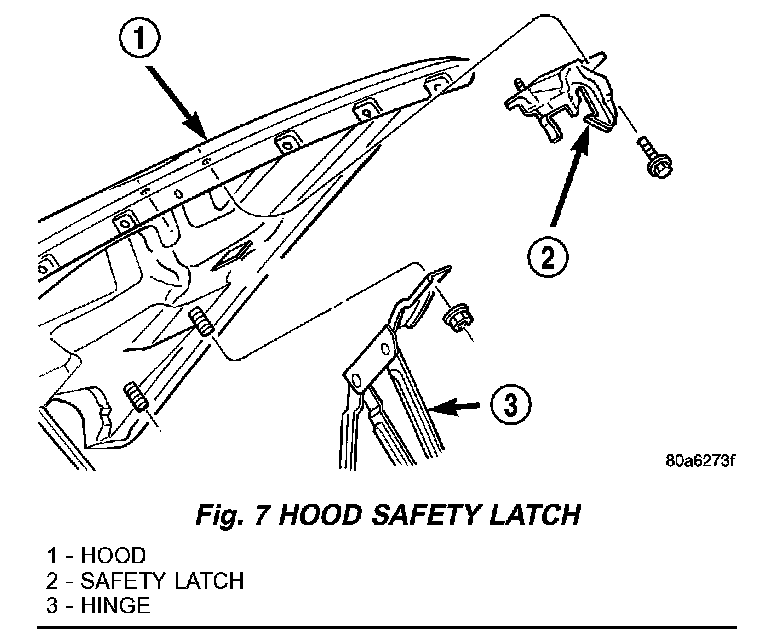

Fig. 7:

1. Open the hood and remove bolts attaching hood safety latch to hood (Fig. 7).
2. Separate safety latch from hood.

INSTALLATION

1. Position safety latch on hood.
2. Install bolts attaching safety latch to hood and tighten to 9.6 N.m (85 in.lbs.).
3. Close hood and verify operation. Adjust as necessary.
