P0713

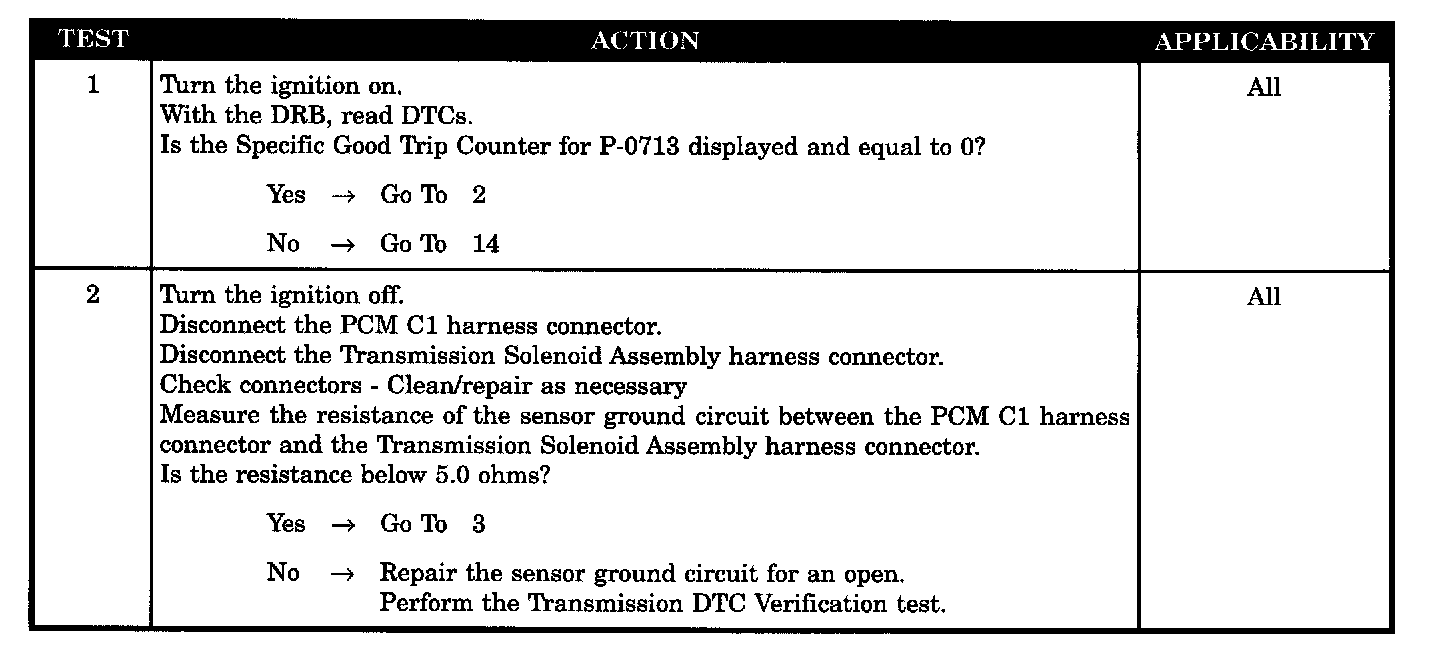

Tests 1 - 2:

Tests 3 - 6:

Tests 7 - 9:

Tests 10 - 13:

Tests 14:

SYMPTOM
P0713 - TRANSMISSION TEMPERATURE SENSOR VOLTAGE TOO HIGH

WHEN MONITORED
Continuously with the key ON and the engine running.

SET CONDITION
This code will set if the Transmission Temperature Sensor Signal circuit voltage goes above 3.76 volts for 2.2 seconds.

POSSIBLE CAUSES
- Powertrain Control Module
- 5 volt supply circuit open
- Intermittent transmission temperature sensor
- Sensor ground circuit open
- Sensor ground circuit open inside transmission
- PCM
- 5 volt supply circuit open
- 5 volt supply circuit open inside transmission
- Transmission temperature sensor signal circuit open
- Transmission temperature sensor signal circuit shorted to voltage
- Transmission temperature sensor signal circuit open inside transmission
- Transmission temperature sensor signal circuit shorted to voltage inside transmission
- Transmission temperature sensor high
