P1694

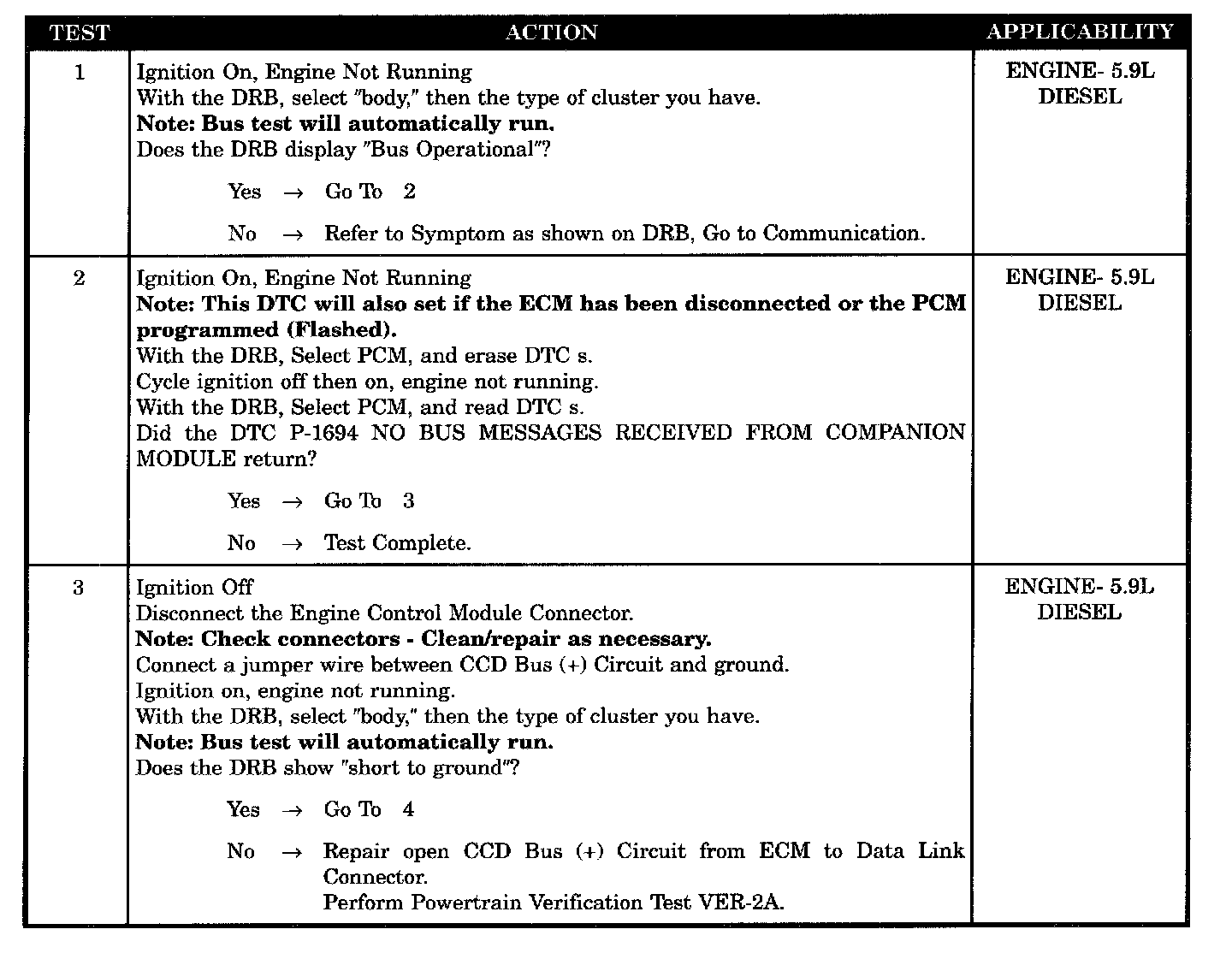

Tests 1 - 3:

Tests 4 - 6:

SYMPTOM
P1694 - NO BUS MESSAGES RECEIVED FROM COMPANION MODULE

POSSIBLE CAUSES
- DRB not display Bus operational
- CCD Bus (+) circuit open
- CCD Bus (-) circuit open
- ECM ground circuit open
- Engine Control Module
