P1762

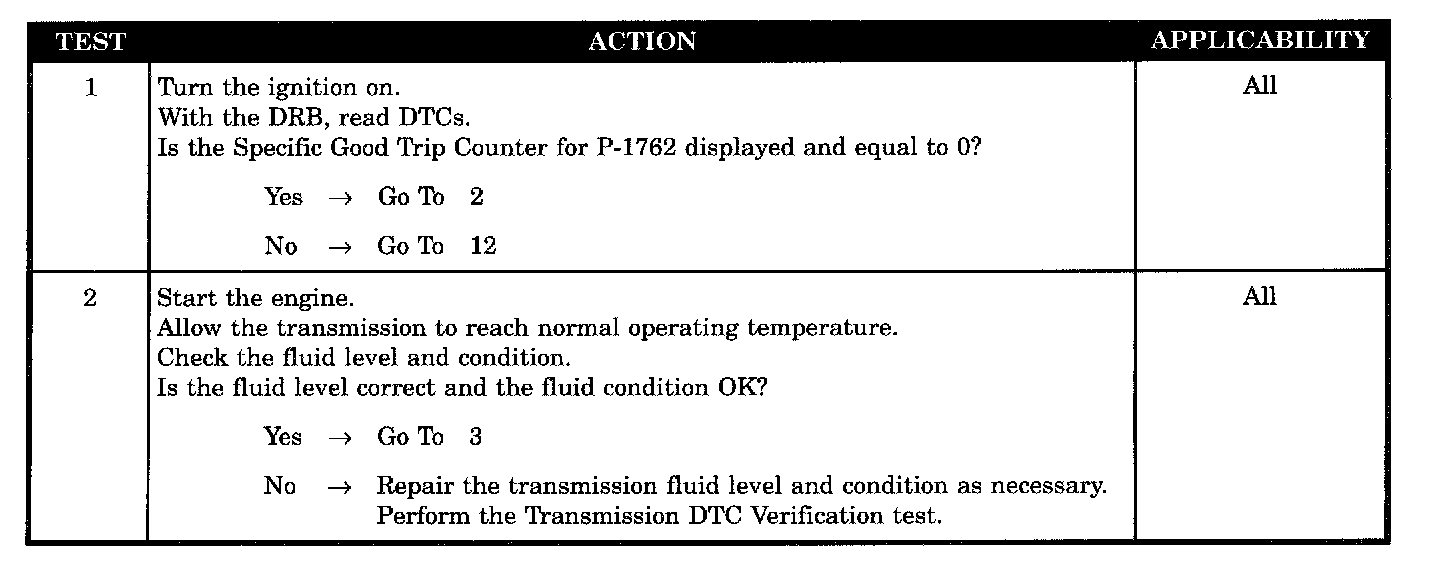

Tests 1 - 2:

Tests 3 - 7:

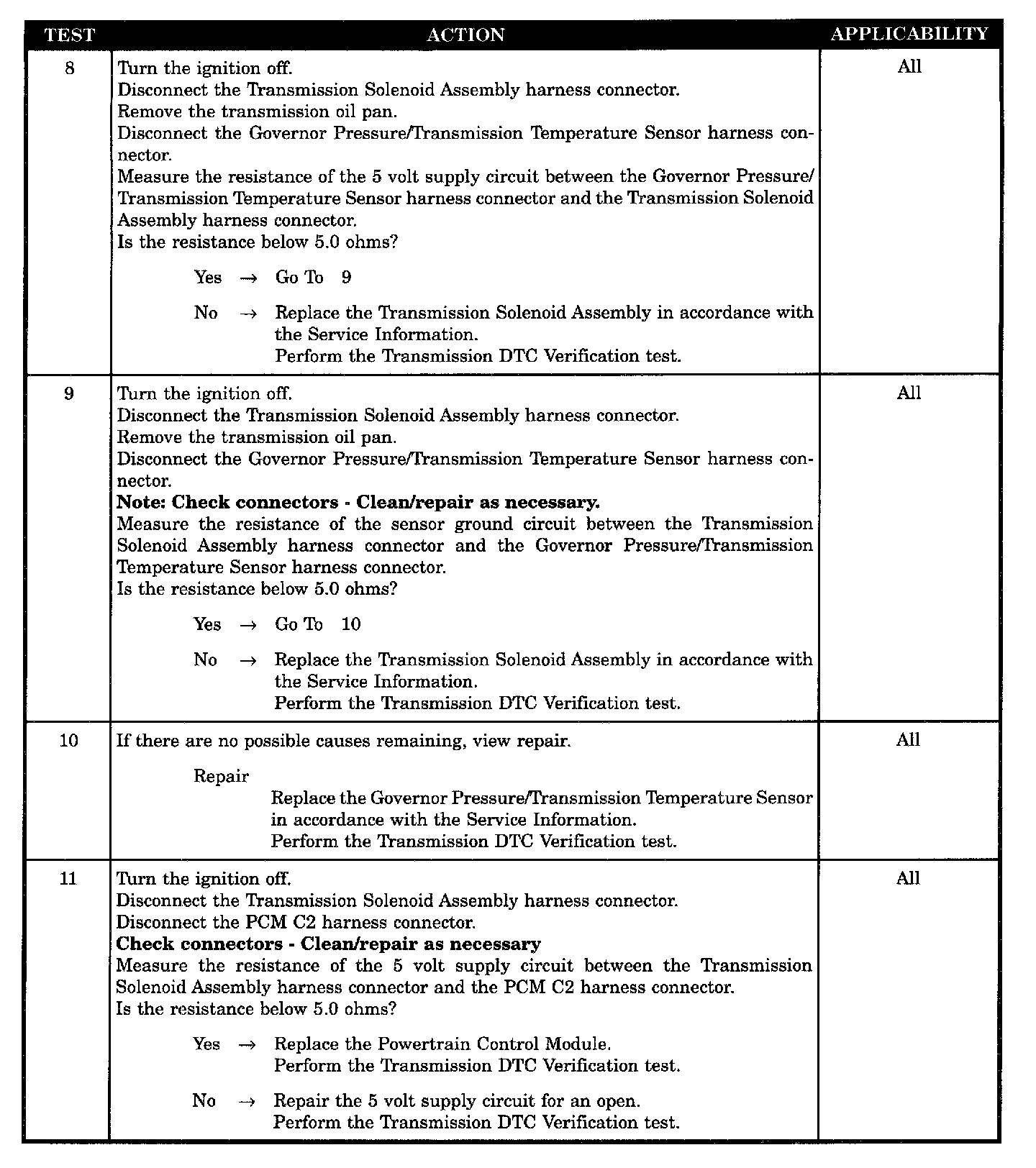

Tests 8 - 11:

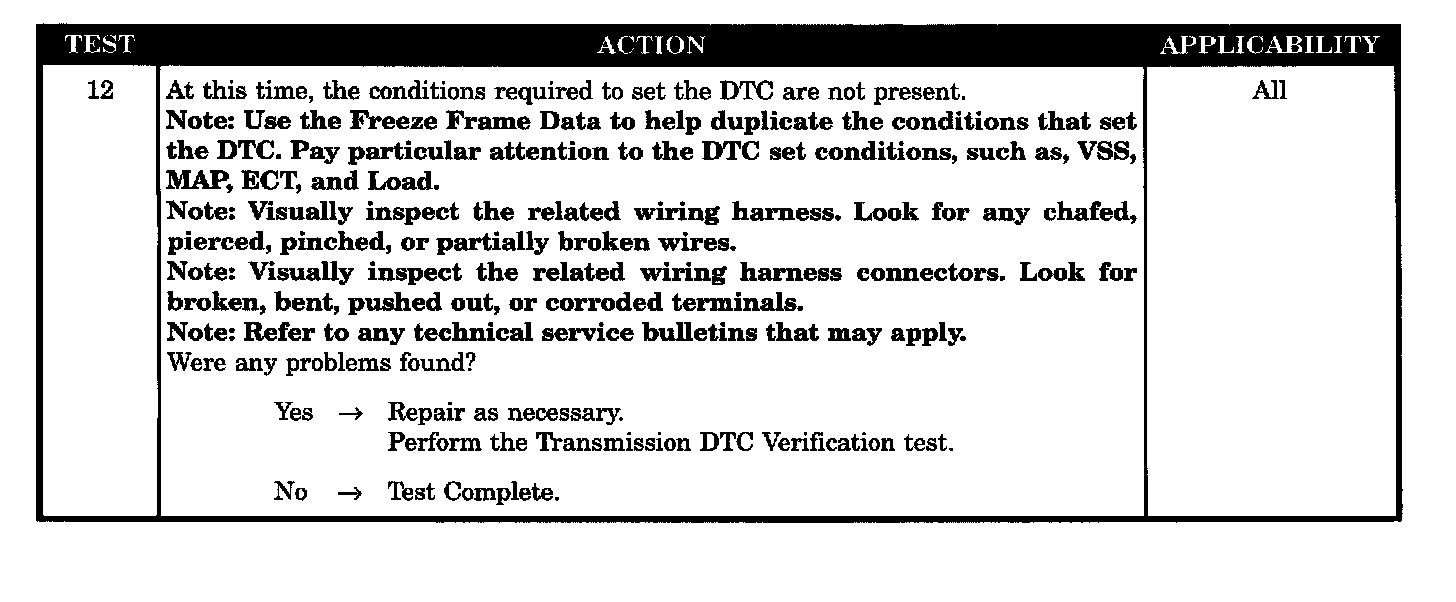

Test 12:

SYMPTOM
P1762 - GOVERNOR PRESSURE SENSOR OFFSET VOLTS TOO LOW OR HIGH

WHEN MONITORED
Continuously with the key ON and the engine running.

SET CONDITION
This code will set if the governor pressure is out of range in Park or Neutral for 1.3 seconds. Three consecutive bad 3.0 second tests and sump temperature > 10 °C (50 °F) and < 127 °C (260 °F) are required to set the code.

POSSIBLE CAUSES
- Powertrain Control Module
- Transmission fluid level and condition
- Park/Neutral DTC's present
- Other transmission DTC's present
- 5 volt supply circuit open
- 5 volt supply circuit open inside transmission
- Governor pressure sensor ground circuit open
- Governor pressure sensor ground circuit open inside transmission
- Governor pressure sensor
- Intermittent problem
