Camshaft Position Sensor: Service and Repair

REMOVAL
The camshaft position sensor is mounted to the rear of the cylinder head.
1. Remove the negative battery cable.

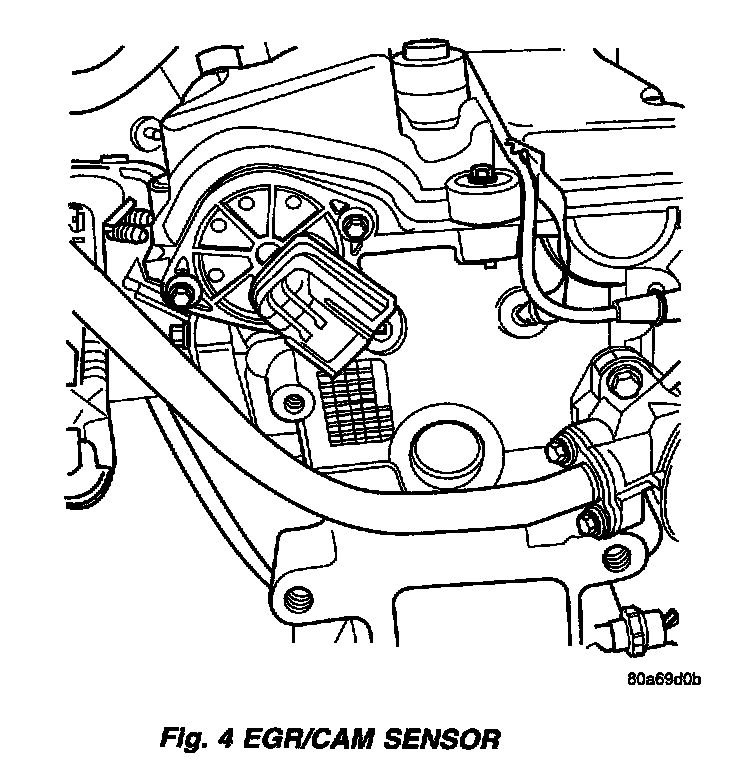

Fig.4 EGR/CAM Sensor:




2. Disconnect electrical connectors from the camshaft position sensor.
3. Remove camshaft position sensor mounting screws. Remove sensor.

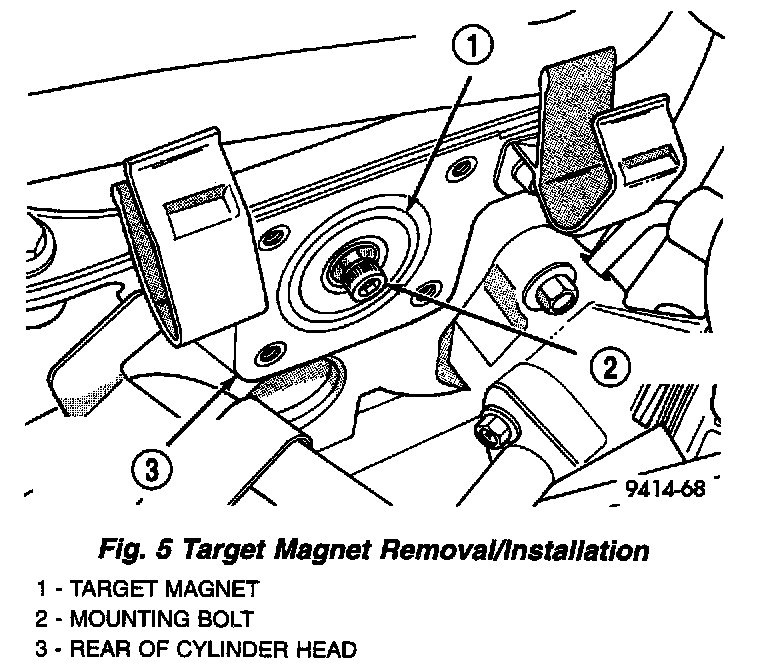

Fig.5 Target Magnet Removal/Installation:




4. Loosen screw attaching target magnet to rear of camshaft and remove magnet.

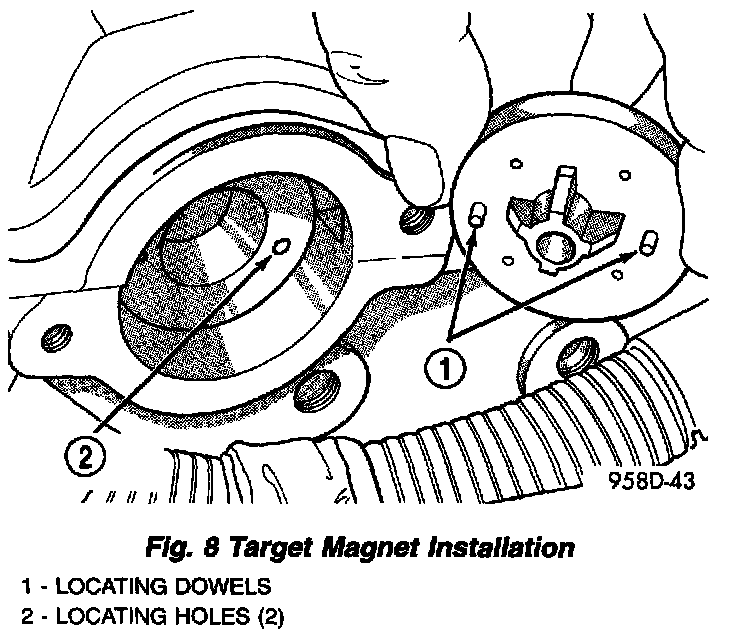

Fig.8 Target Magnet Installation:




INSTALLATION
The target magnet has locating dowels that fit into machined locating holes in the end of the camshaft.
1. Install target magnet in end of camshaft. Tighten mounting screw to 3 Nm (30 in. lbs.) torque. Over torqueing could cause cracks in magnet. If magnet cracks replace it.
2. Install camshaft position sensor. Tighten sensor mounting screws to 12.9 Nm (115 in. lbs.) torque.
3. Carefully attach electrical connector to camshaft position sensor, Installation at an angle may damage the sensor pins.
4. Connect the negative battery cable.
