Vehicle Speed Sensor: Service and Repair

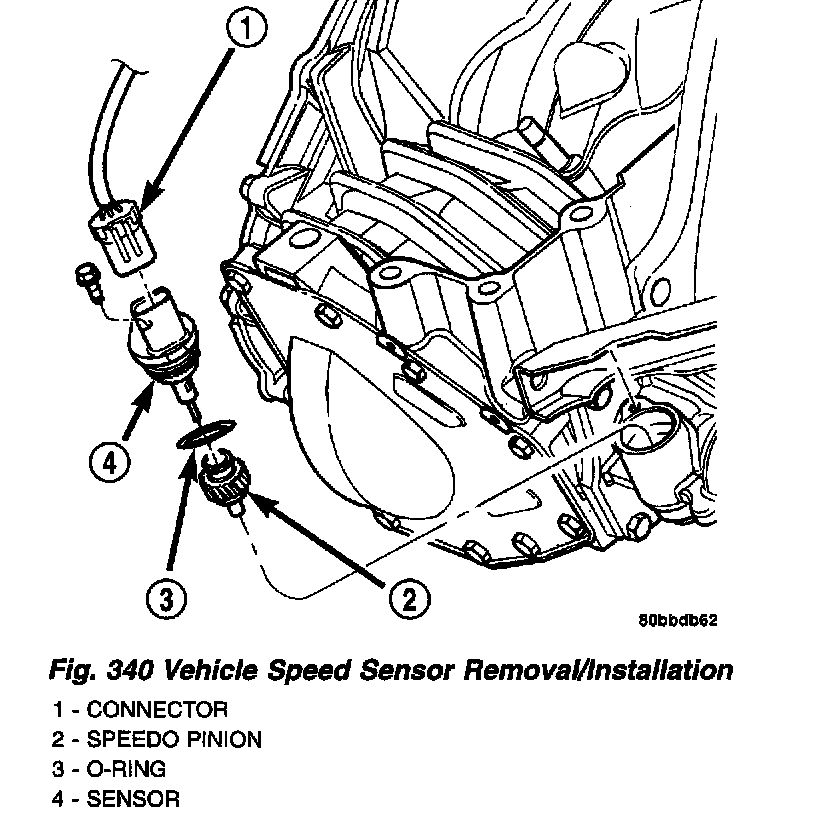

VEHICLE SPEED SENSOR PINION GEAR
REMOVAL





1. Remove harness connector from sensor. Be sure weather seal stays on harness connector.
2. Remove bolt securing the sensor in the extension housing.
3. Carefully pull sensor and pinion gear assembly out of extension housing.
4. Remove pinion gear from sensor.
5. Inspect pinion gear for damage (missing teeth, etc.) and replace as necessary.

NOTE: When removing vehicle speed sensor for any reason, a new O-ring MUST be used.

INSTALLATION





1. Install vehicle speed sensor and pinion gear to extension housing with new O-ring.
2. Install bolt and torque to 7 Nm (60 inch lbs.).
3. Connect connector.
4. Lower vehicle.
