Ignition Coil: Service and Repair

REMOVAL
The electronic ignition coil pack attaches directly to the valve cover.
1. Disconnect the negative battery cable.
2. Disconnect electrical connector from coil pack
3. Remove coil pack mounting bolts.

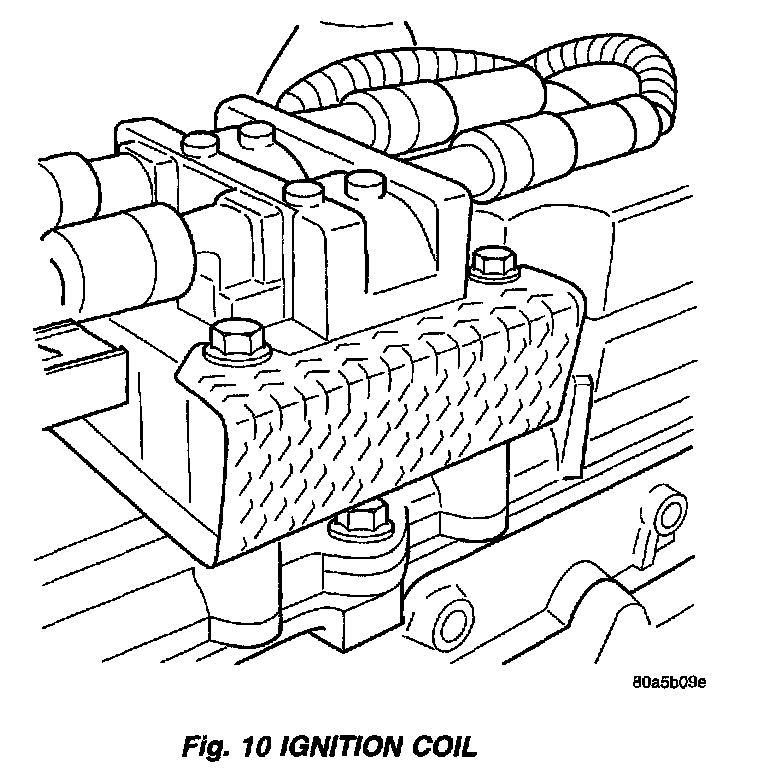

Fig.10 Ignition Coil:




4. Remove coil pack and heat shield.

INSTALLATION
1. Install ignition coil and heat shield to valve cover and tighten bolts.
2. Connect the electrical connector to the ignition coil.
3. Transfer spark plug cables to new coil pack. The coil pack towers are numbered with the cylinder identification. Be sure the ignition cables are fully seated onto the towers.
4. Connect the negative battery cable.
