Coolant Temperature Sensor/Switch (For Computer): Service and Repair

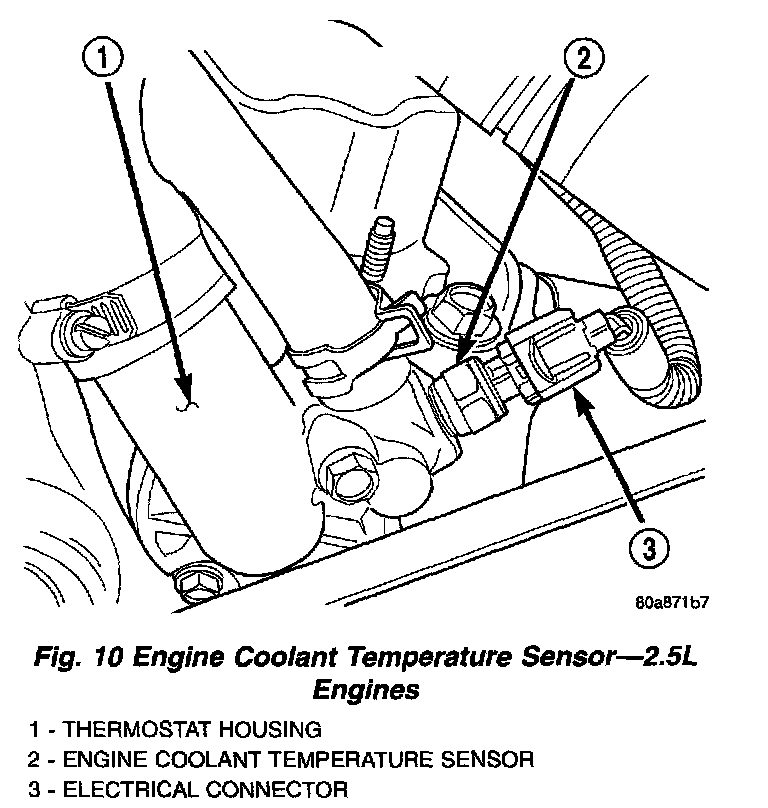

REMOVAL - 2.5L

WARNING: HOT, PRESSURIZED COOLANT CAN CAUSE INJURY BY SCALDING. COOLING SYSTEM MUST BE PARTIALLY DRAINED BEFORE REMOVING THE COOLANT TEMPERATURE SENSOR.

1. Partially drain cooling system.

2. Disconnect electrical connector from sensor.
3. Remove sensor from thermostat housing.

INSTALLATION - 2.5L
1. Install sensor.
2. Tighten to 11 Nm (8 ft. lbs.) torque.
3. Replace any lost engine coolant.
