Manifold Pressure/Vacuum Sensor: Service and Repair

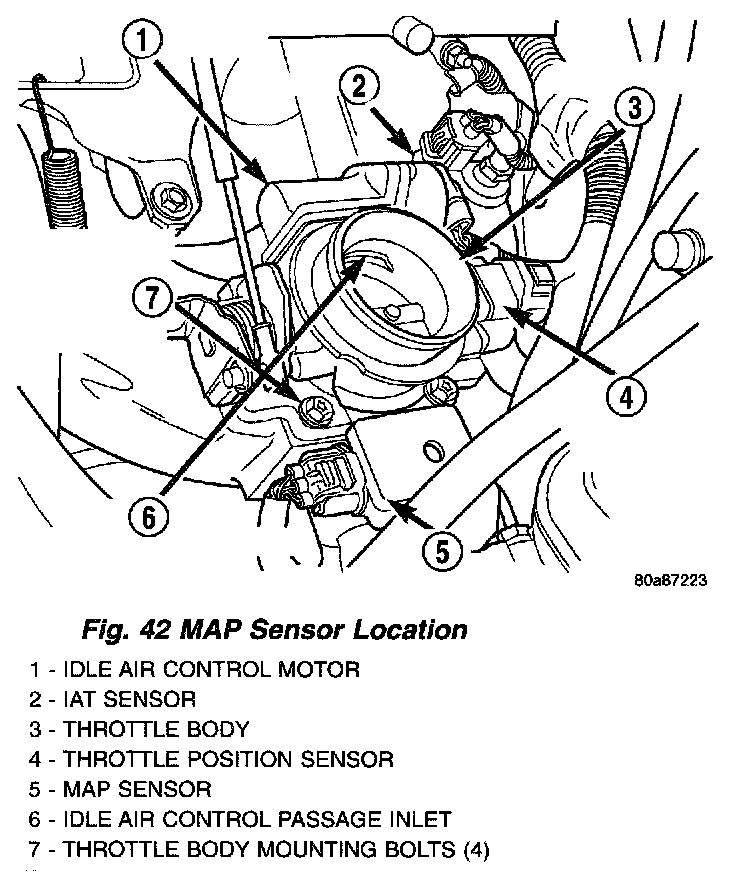

REMOVALFig. 42 MAP Sensor Location:

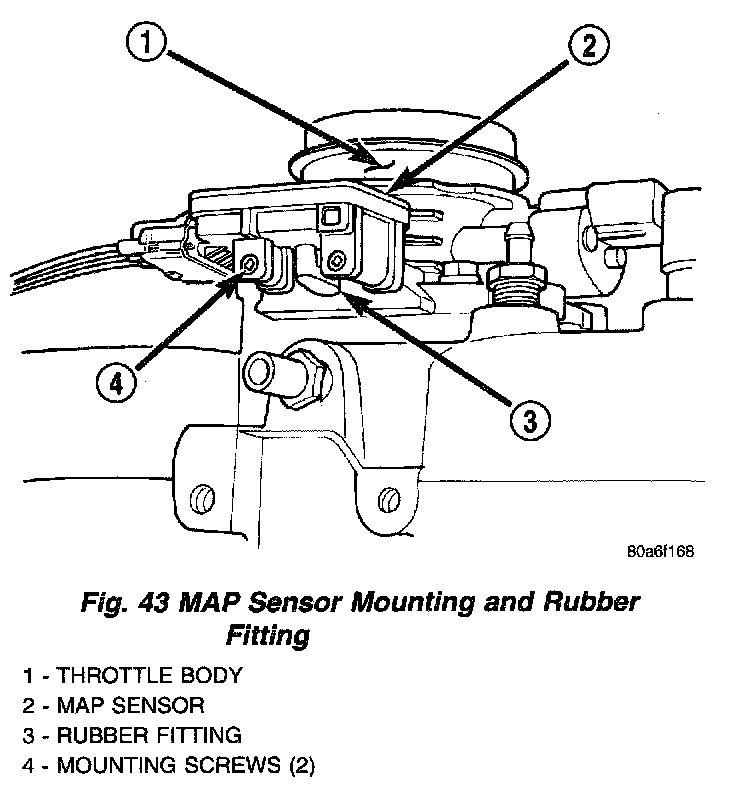

Fig. 43 MAP Sensor Mounting And Rubber Fitting:
The MAP sensor is mounted to the side of the throttle body. An L-shaped rubber fitting is used to connect the MAP sensor to throttle body.
1. Remove air duct at throttle body.
2. Remove electrical connector at sensor.
3. Remove two MAP sensor mounting bolts (screws).
4. while removing MAP sensor, slide the rubber L-shaped fitting from the throttle body.
5. Remove rubber L-shaped fitting from MAP sensor.
INSTALLATION
The MAP sensor is mounted to the side of the throttle body. An L-shaped rubber fitting is used to connect the MAP sensor to throttle body.
1. Install rubber L-shaped fitting to MAP sensor.
2. Position sensor to throttle body while guiding rubber fitting over throttle body vacuum nipple.
3. Install MAP sensor mounting bolts (screws). Tighten screws to 3 Nm (25 in. lbs.) torque.
4. Install electrical connector at sensor.
5. Install air duct at throttle body.
