Engine Compartment/Exhaust System

1/2:

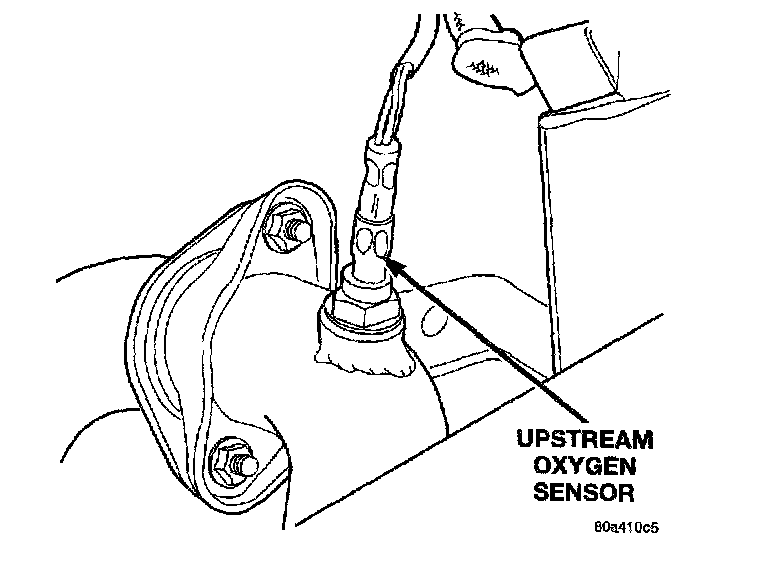

1/1:




The upstream sensor (1/1) is located just before the main catalytic convertor. The downstream sensor (112) is located just after the main catalytic convertor.
