Relay Box

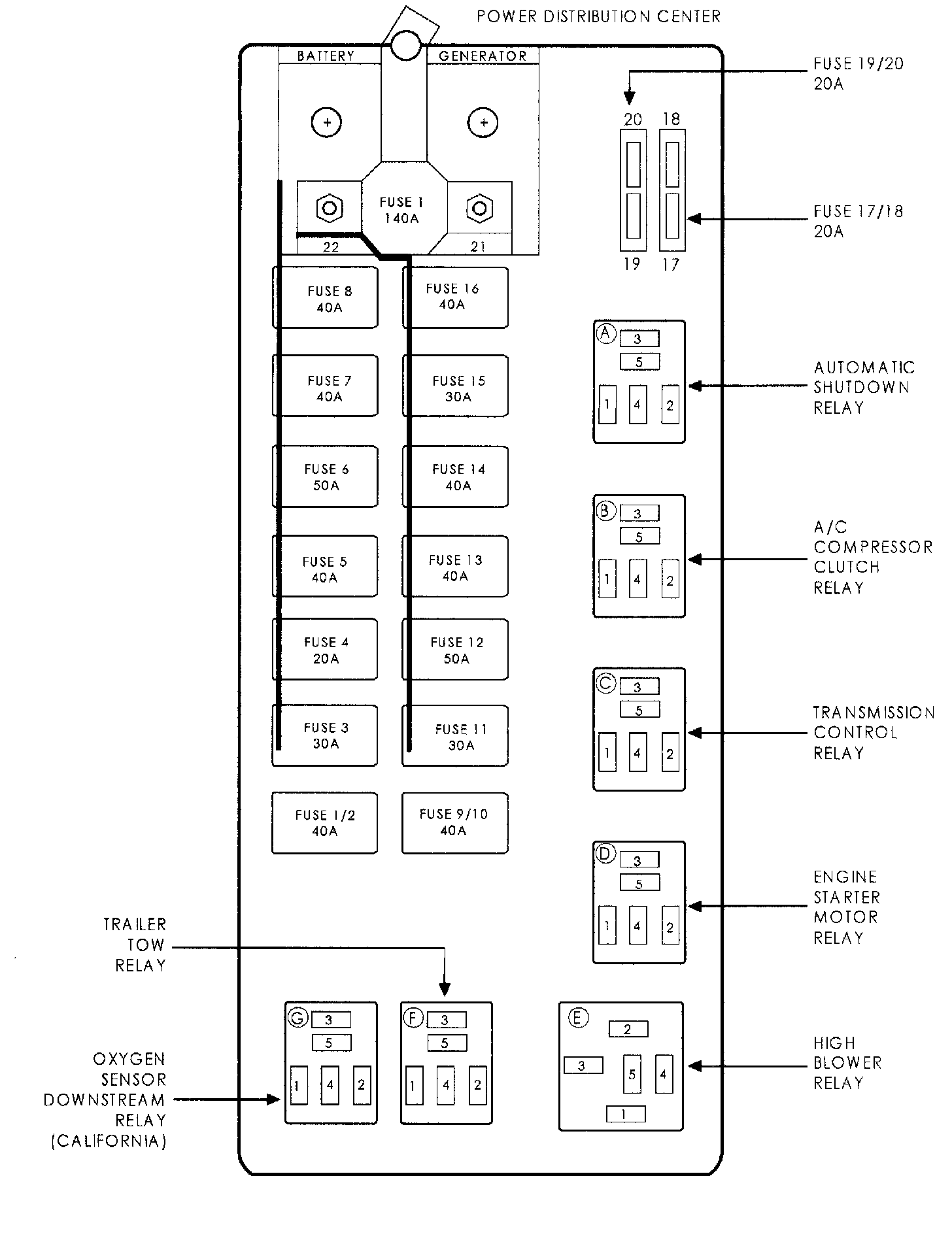

Power Distribution Center

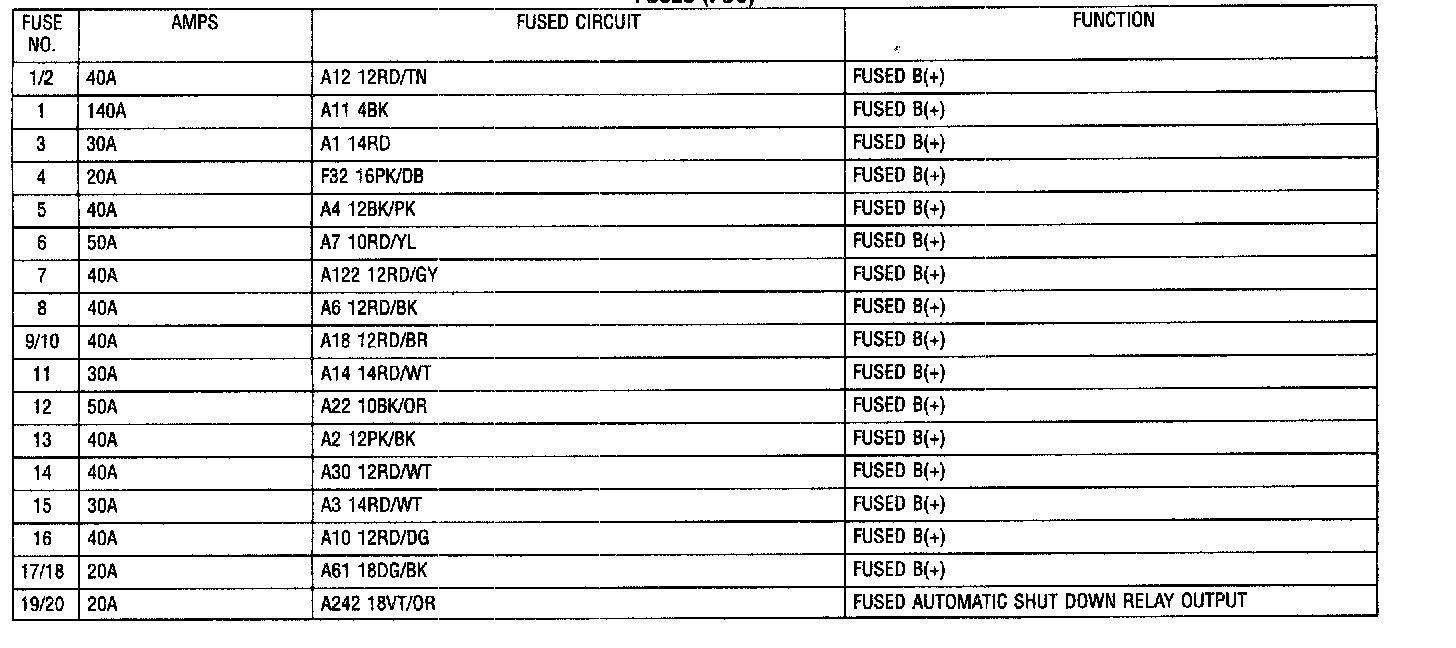

Fuses (PDC)

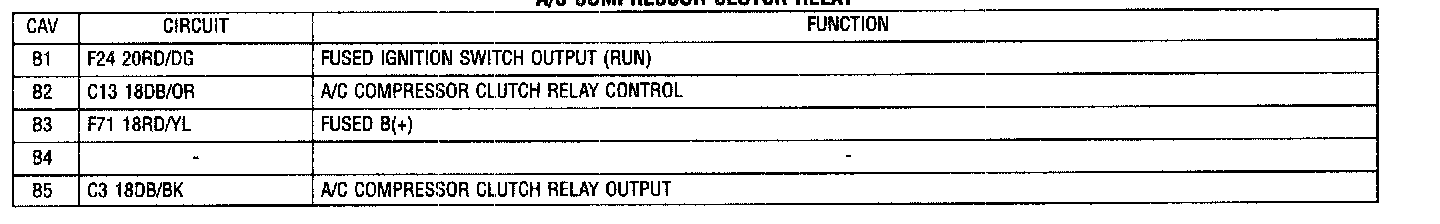

A/C Compressor Clutch Relay

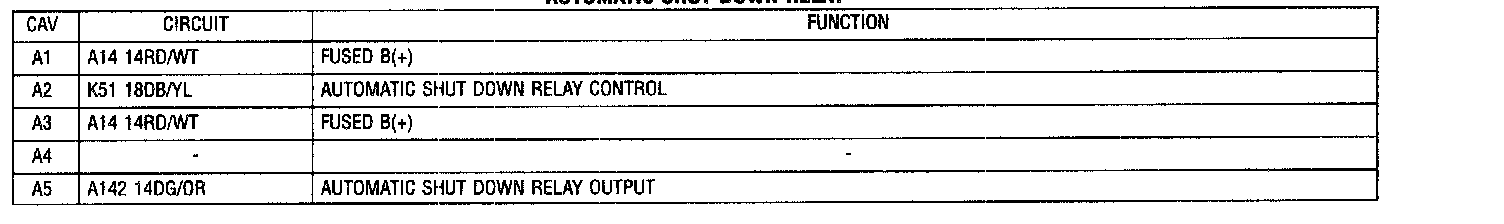

Automatic Shutdown Relay

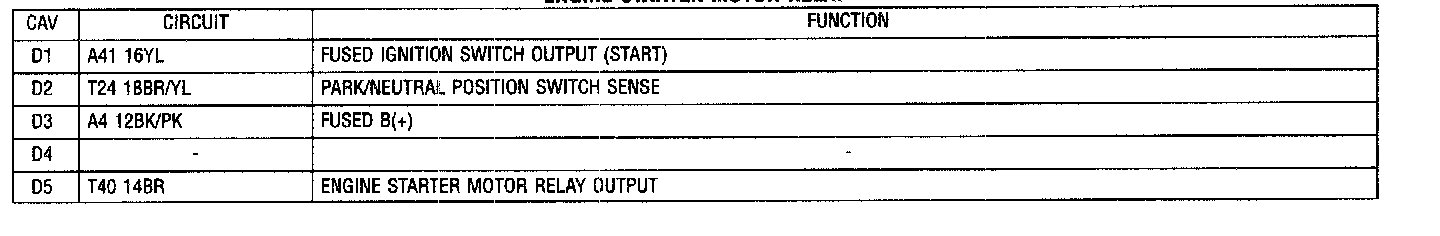

Engine Starter Motor Relay

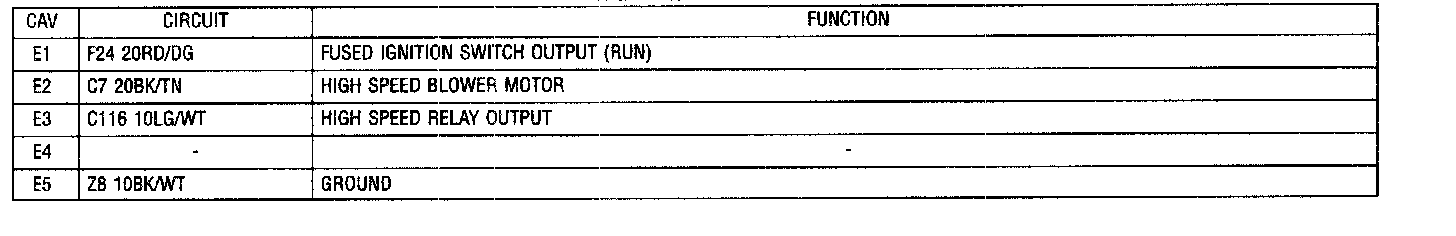

High Blower Relay

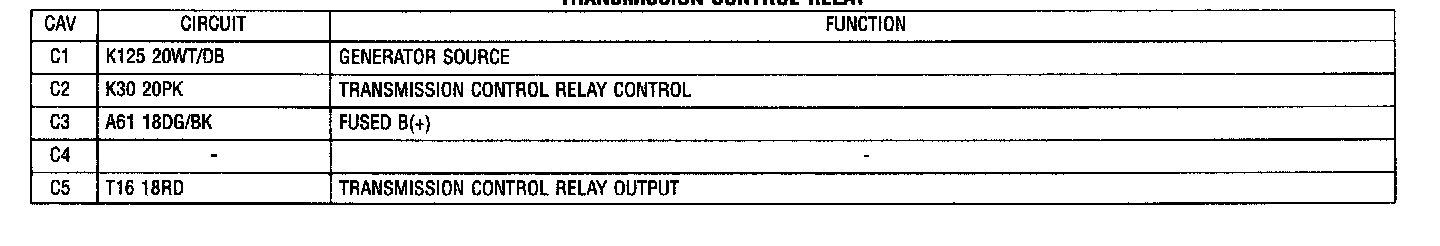

Transmission Control Relay
