Rear Heater-A/C Unit Cover Replacement

REMOVAL
1. Remove the rear bench seat from the passenger compartment, if the vehicle is so equipped.

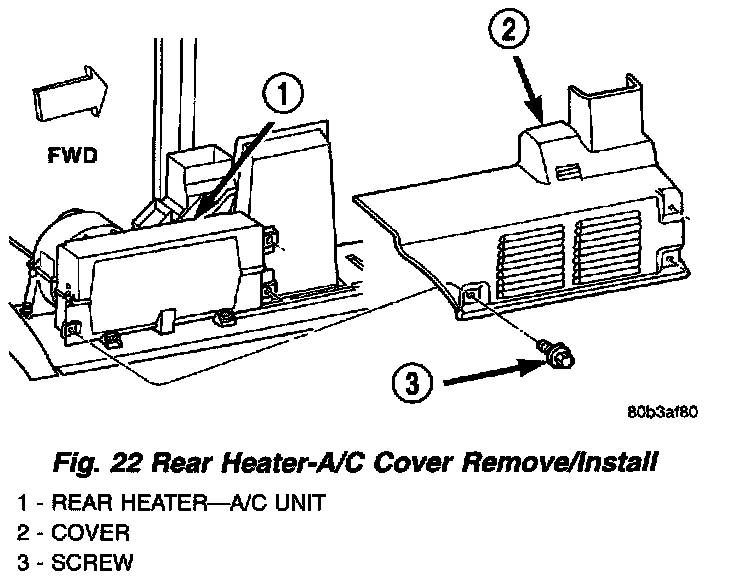

Fig. 22 Rear Heater - A/C Cover Remove/Install:

2. Remove the three screws that secure the cover to the rear heater-A/C unit.
3. Remove the cover from the rear heater-A/C unit.

INSTALLATION
1. Position the cover over the rear heater-A/C unit.
2. Install the three screws that secure the cover to the rear heater-A/C unit. Tighten the mounting screws to 2.2 Nm (20 in. lbs.).
3. Reinstall the rear bench seat to the passenger compartment, if the vehicle is so equipped.
