Fog Lamp Unit Replacement

REMOVAL
SLT
The fog lamps are serviced from the rearward side of the front bumper.
1. Disconnect and isolate the battery negative cable.
2. Disengage fog lamp harness connector.

Fig.10 Fog Lamp:

3. Remove fog lamp to bumper attaching nuts.
4. Separate fog lamp from bumper.

Soprt
The fog lamps are serviced from the rearward side of the front bumper.
1. Disconnect and isolate the battery negative cable.
2. Disengage fog lamp harness connector.

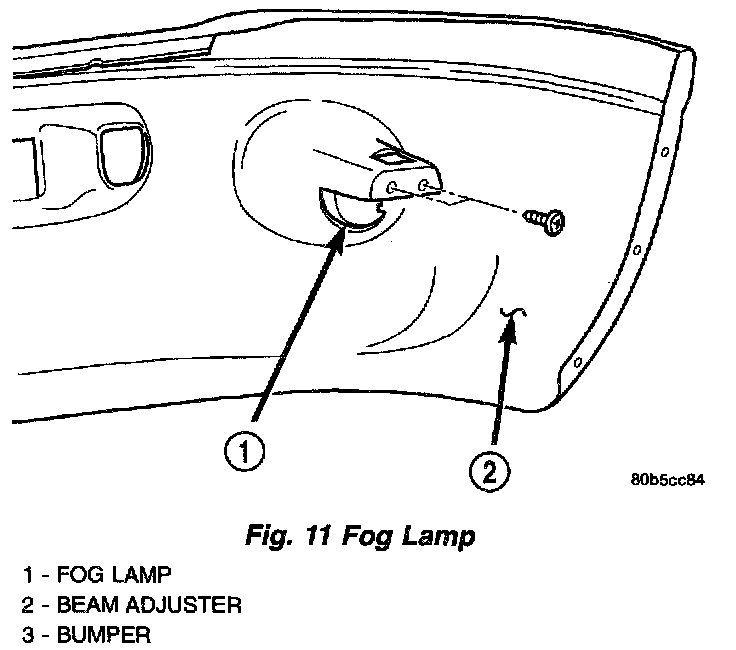

Fig.11 Fog Lamp:

3. Remove fog lamp to bumper attaching nuts.
4. Separate fog lamp from bumper.

INSTALLATION
SLT
1. Position fog lamp in bumper.
2. Install fog lamp to bumper attaching nuts.
3. Connect fog lamp harness connector.
4. Check for proper operation and beam alignment.
5. Connect the battery negative cable.

Soprt
1. Position fog lamp in fascia.
2. Install screws attaching fog lamp to fascia.
3. Connect wire connector to fog lamp.
4. Check for proper operation and beam alignment.
5. Connect the battery negative cable.
