Horn: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.

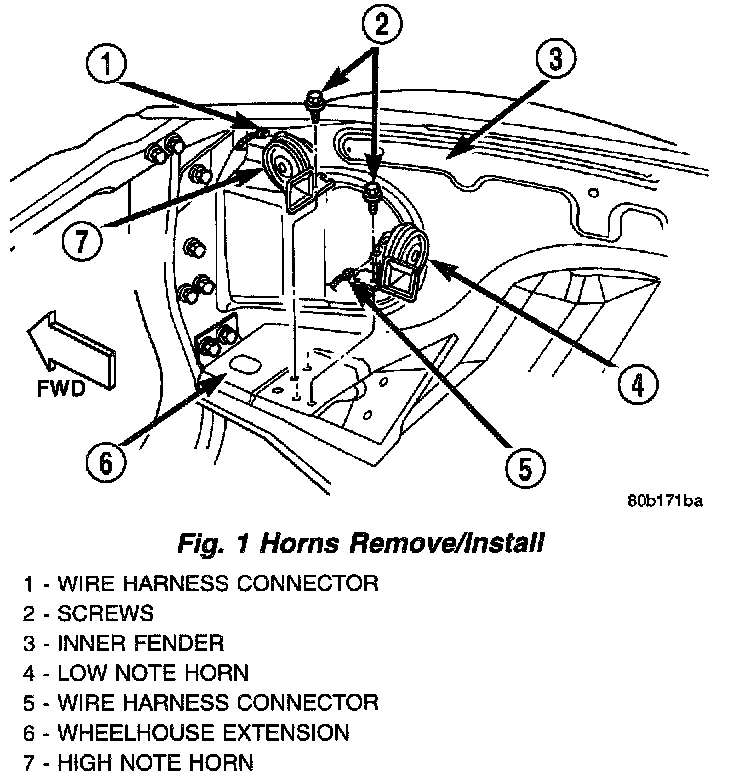

Fig.1 Horns Remove/Install:

2. Disconnect the wire harness connector(s) from the horn connector receptacle(s).
3. Remove the screw that secures the horn and mounting bracket unit(s) to the right fender wheel house front extension,
4. Remove the horn and mounting bracket unit(s) from the right fender wheel house front extension.

INSTALLATION
1. Position the horn and mounting bracket unit(s) onto the right fender wheel house front extension.
2. Install and tighten the screw that secures the horn and mounting bracket unit(s) to the right fender wheel house front extension. Tighten the screw to 11 Nm (95 in. lbs.).
3. Reconnect the wire harness connector(s) to the horn connector receptacle(s).
4. Reconnect the battery negative cable.
