Interior - Quad Seat Release Handle Loose/Missing
NUMBER: 23-031-02GROUP: Body
DATE: June 24, 2002
SUBJECT:
Quad Seat Release Handle Screw Sheared Off in Shaft
OVERVIEW:
This bulletin involves installing a new seat release shaft, roll pin, release handle and screw.
MODELS:
2001 - 2002 (RS) Town & Country/Caravan/Voyager
2001 - 2002 (RG) Chrysler Voyager (International Markets)
SYMPTOM/CONDITION:
Quad seat release handle may be loose, missing or damaged.
DIAGNOSIS:
Inspect the quad seat for a missing or damaged release handle. If the screw is not sheared off in the seat release shaft, replace the handle and/or screw. If the screw is sheared off in the seat release shaft, perform the Repair Procedure.

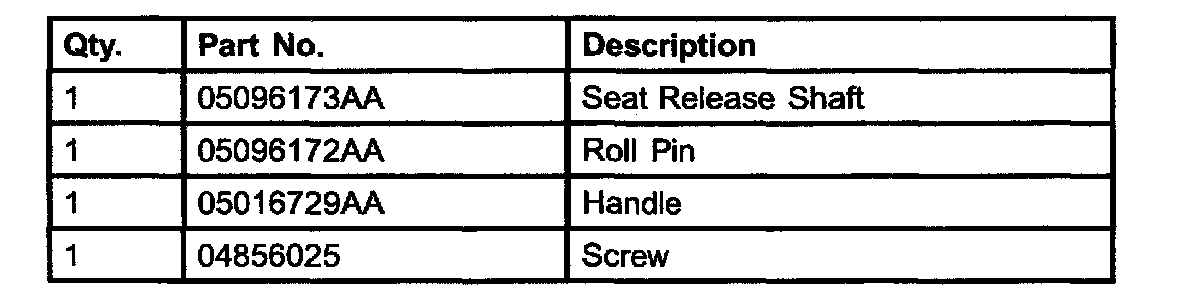

PARTS REQUIRED:
REPAIR PROCEDURE:
1. Remove seat and place upside-down on a clean surface with seat riser facing up.

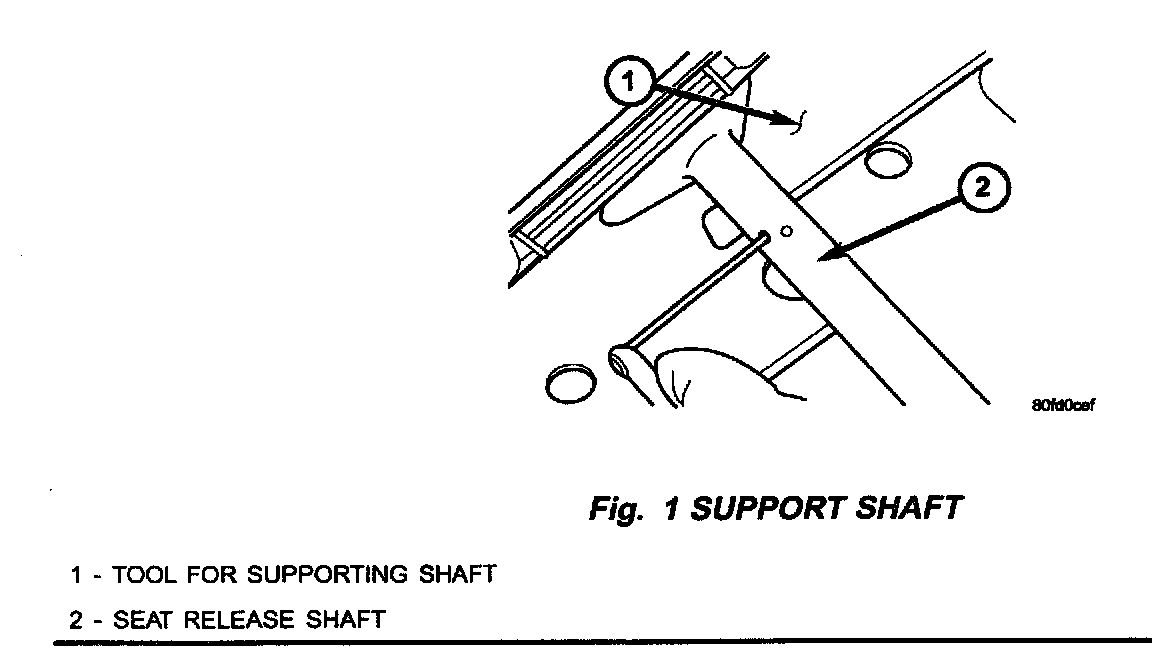

2. Insert a suitable tool between the seat riser and the seat release shaft to prevent damage to the release shaft bushings (Fig. 1).

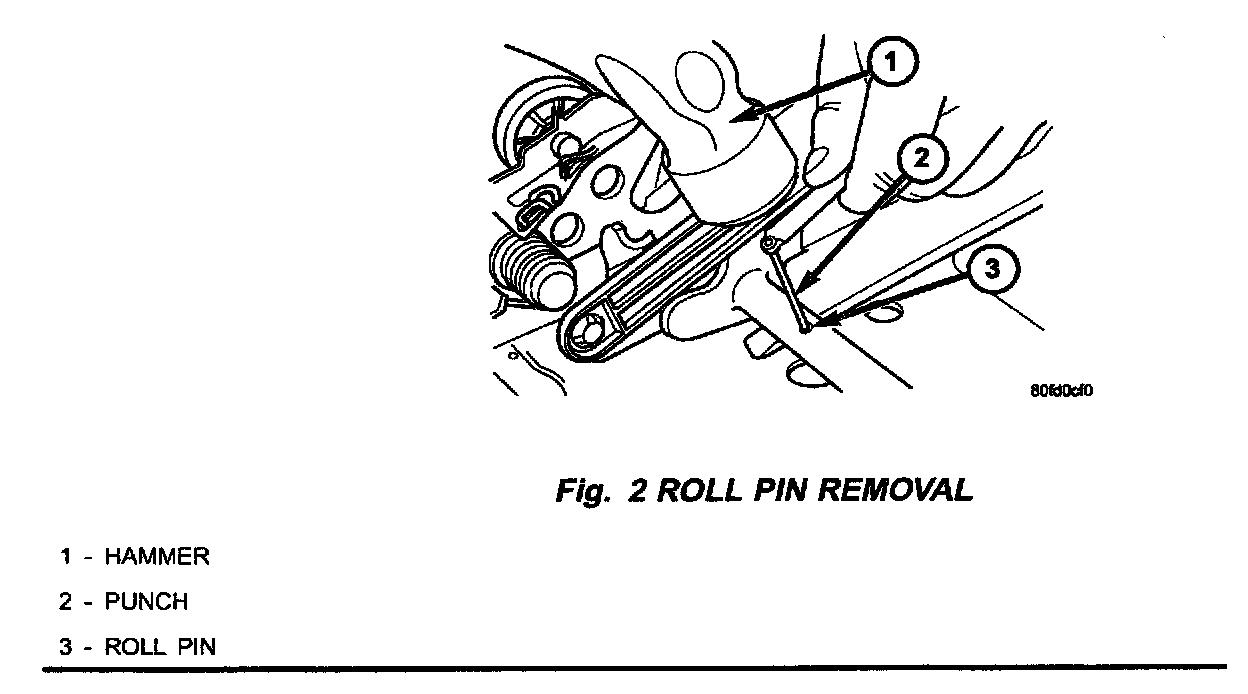

3. Use a hammer and a 5 mm punch to remove the roll pin from the seat release shaft (Fig. 2). On some seats, the roll pin may need to be ground off to allow clearance for removal.
4. Remove the seat release shaft by sliding it out of the cross-tube through the side of the seat riser.
5. Align the new seat release handle to the end of the shaft and install the screw. Make sure the handle is installed in the proper alignment slots of the shaft, and do not force the handle onto the shaft.
6. Slide the new seat release shaft into the cross tube and align the roll pin holes of the cross tube and seat release shaft.
7. Insert a suitable tool between the seat riser and the seat release shaft to prevent damage to the release shaft bushings.

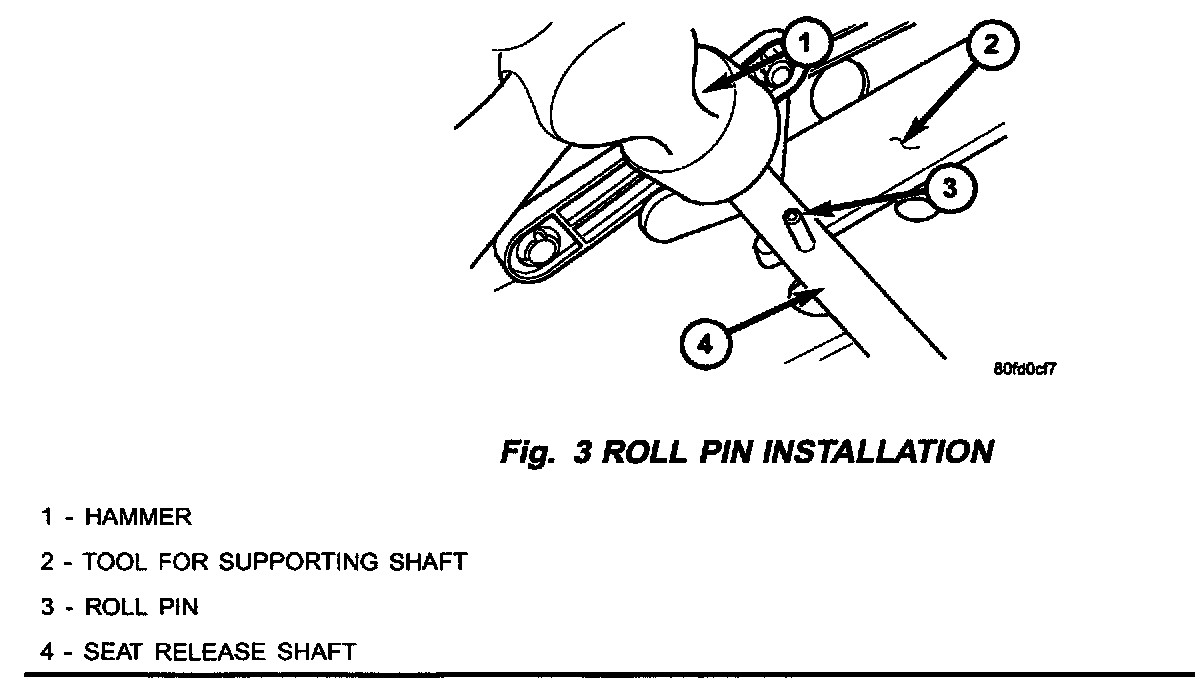

8. Use a hammer to install the roll pin into the seat release shaft, making sure the roll pin extends through the entire shaft (Fig. 3).
9. Repeat these steps on other seats, if required.
10. Install seat(s) into vehicle.
POLICY:
Reimbursable within the provisions of the warranty.

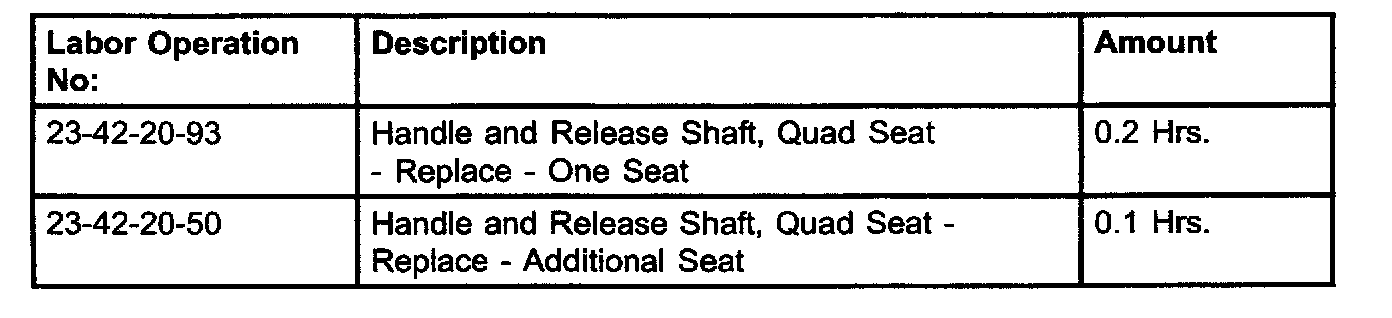

TIME ALLOWANCE:

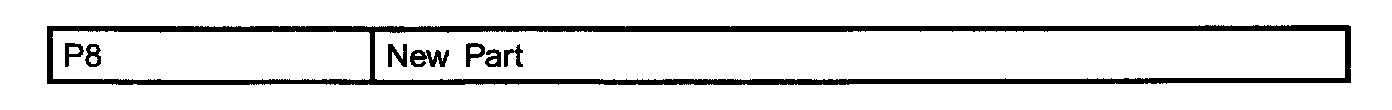

FAILURE CODE:
