Home >> Dodge and Ram >> 2002 >> Dakota 2WD V6-3.9L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Control System Relay, A/T

Transmission Control System Relay, A/T

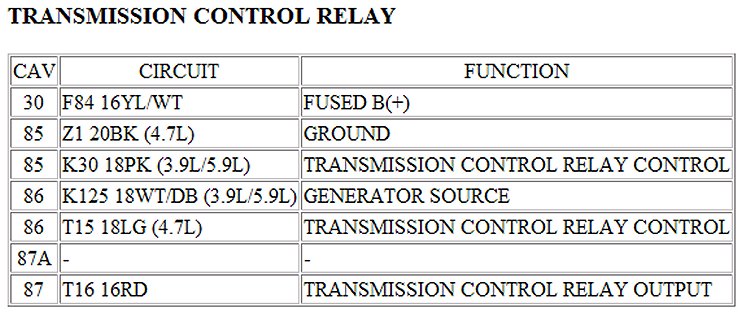

Transmission Control Relay:
