Engine Specifications

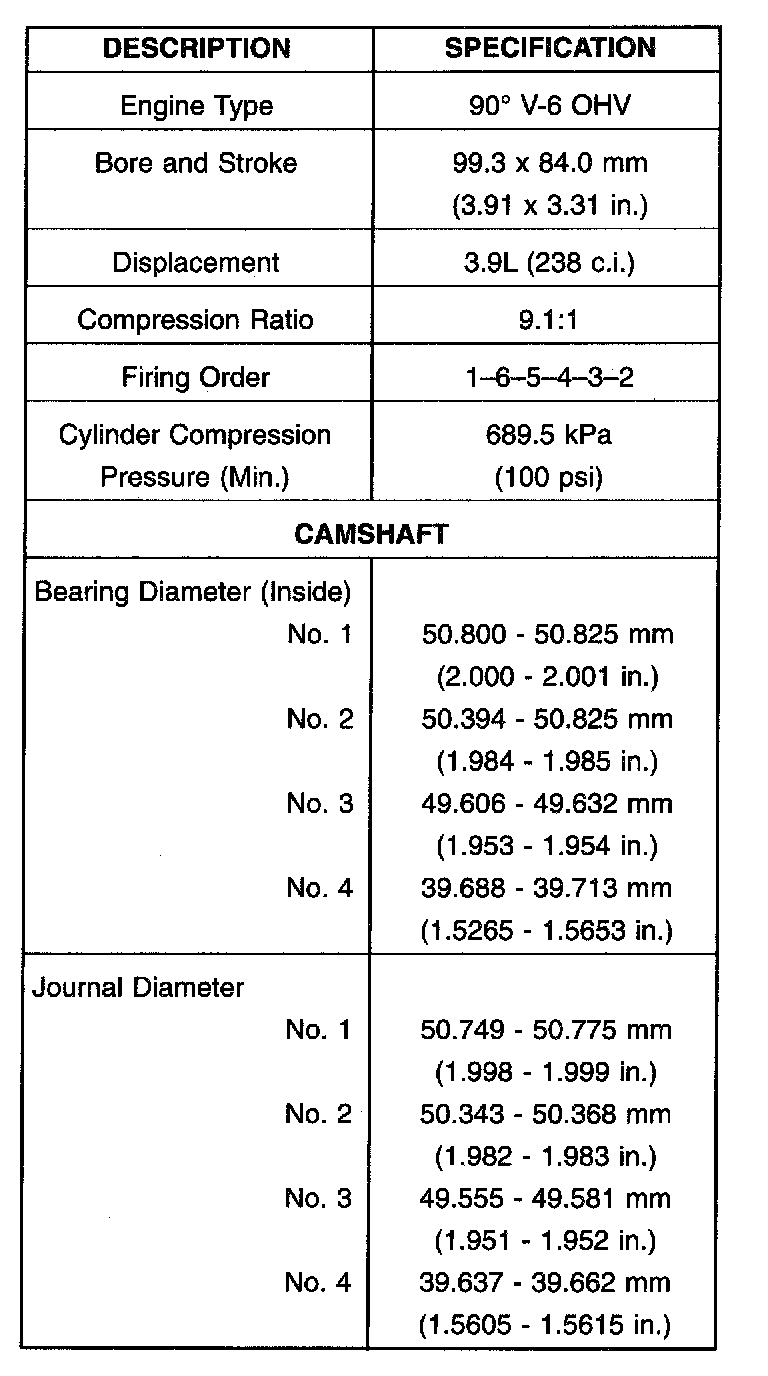

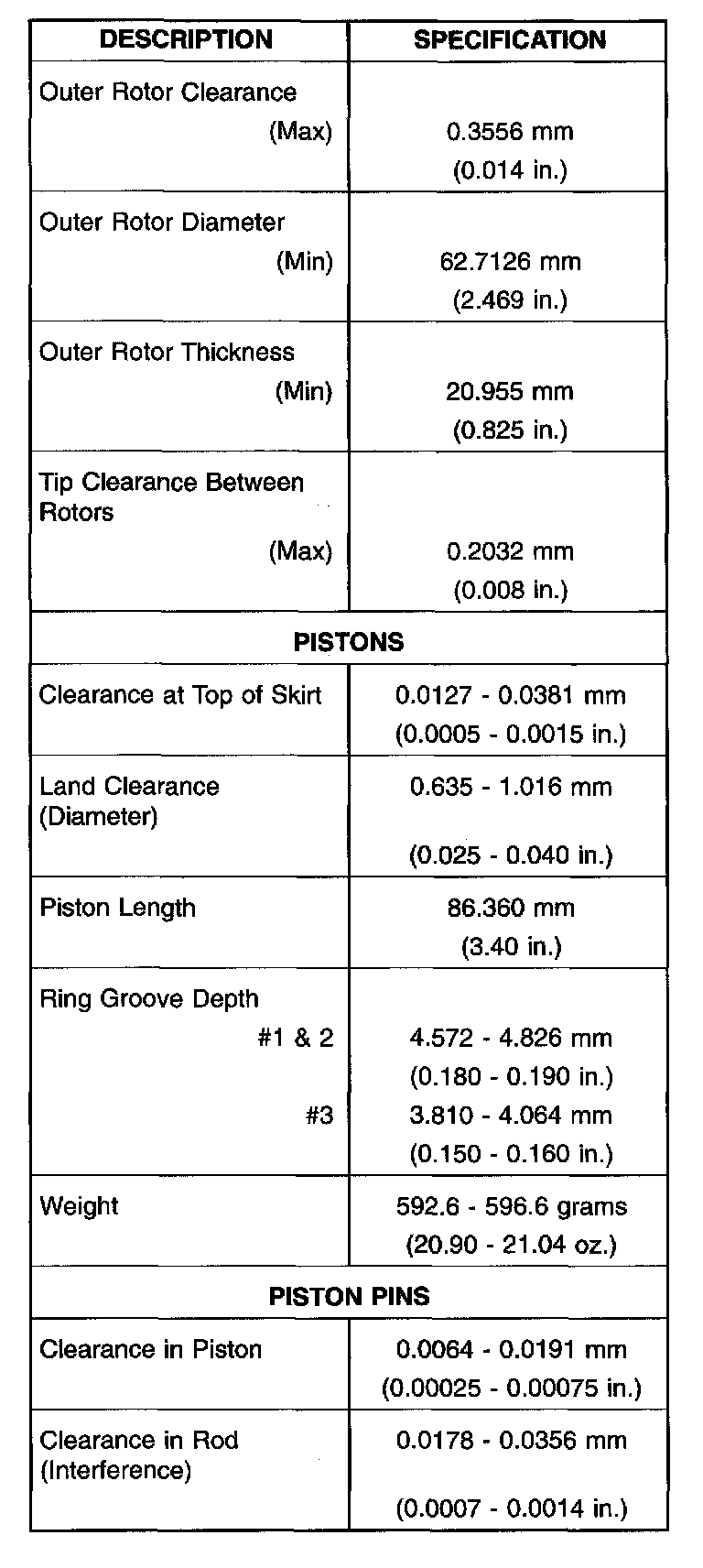

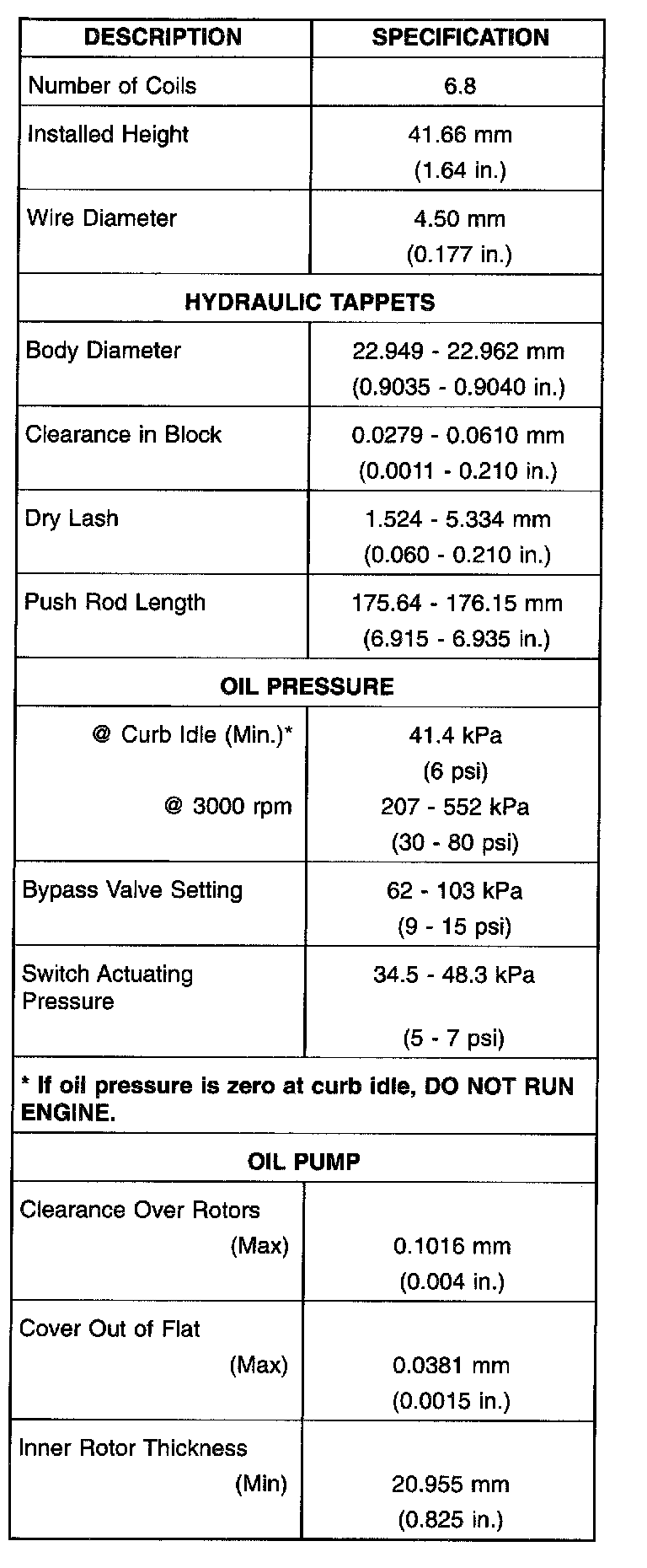

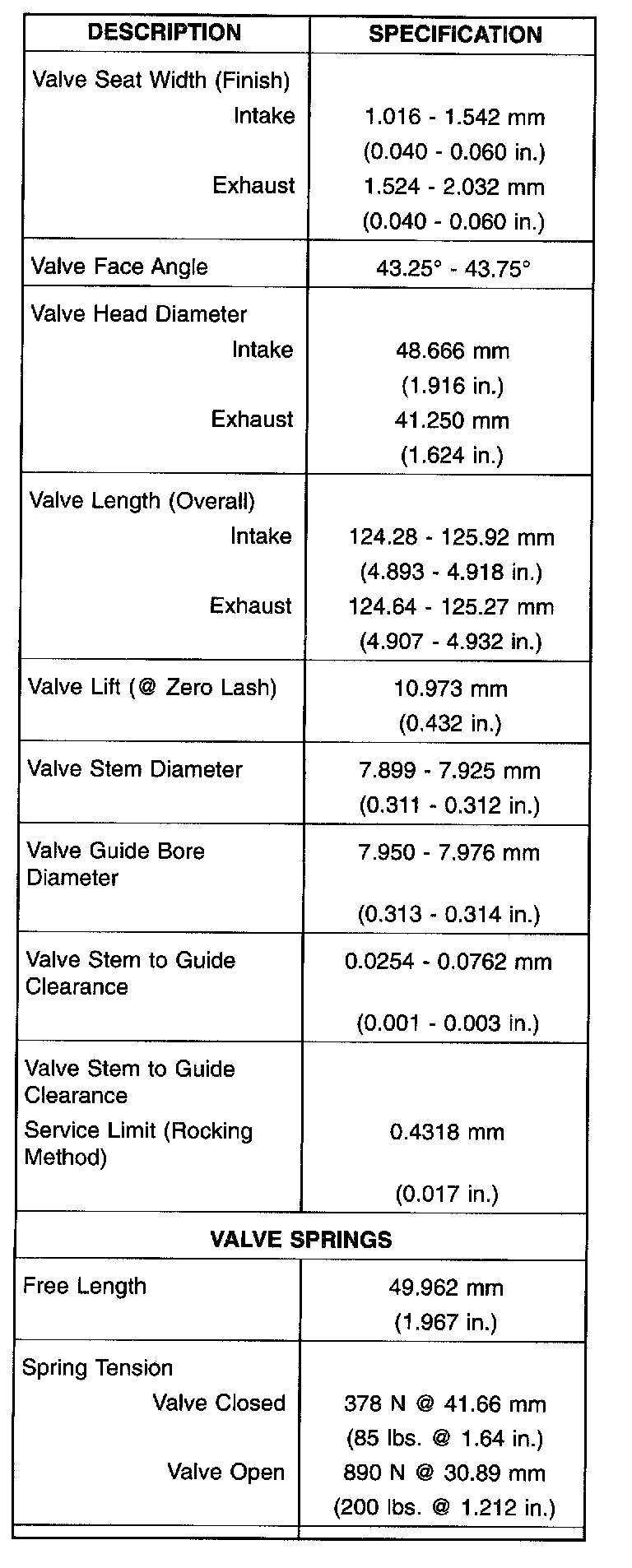

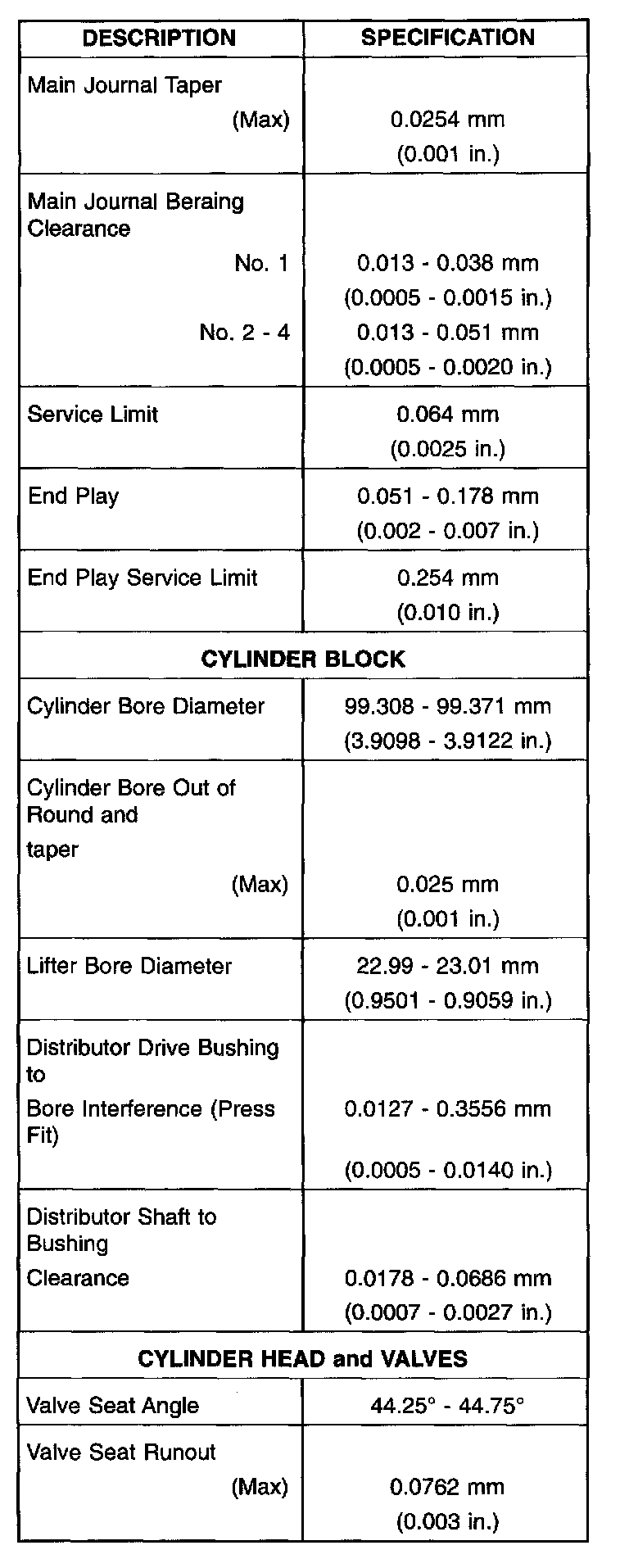

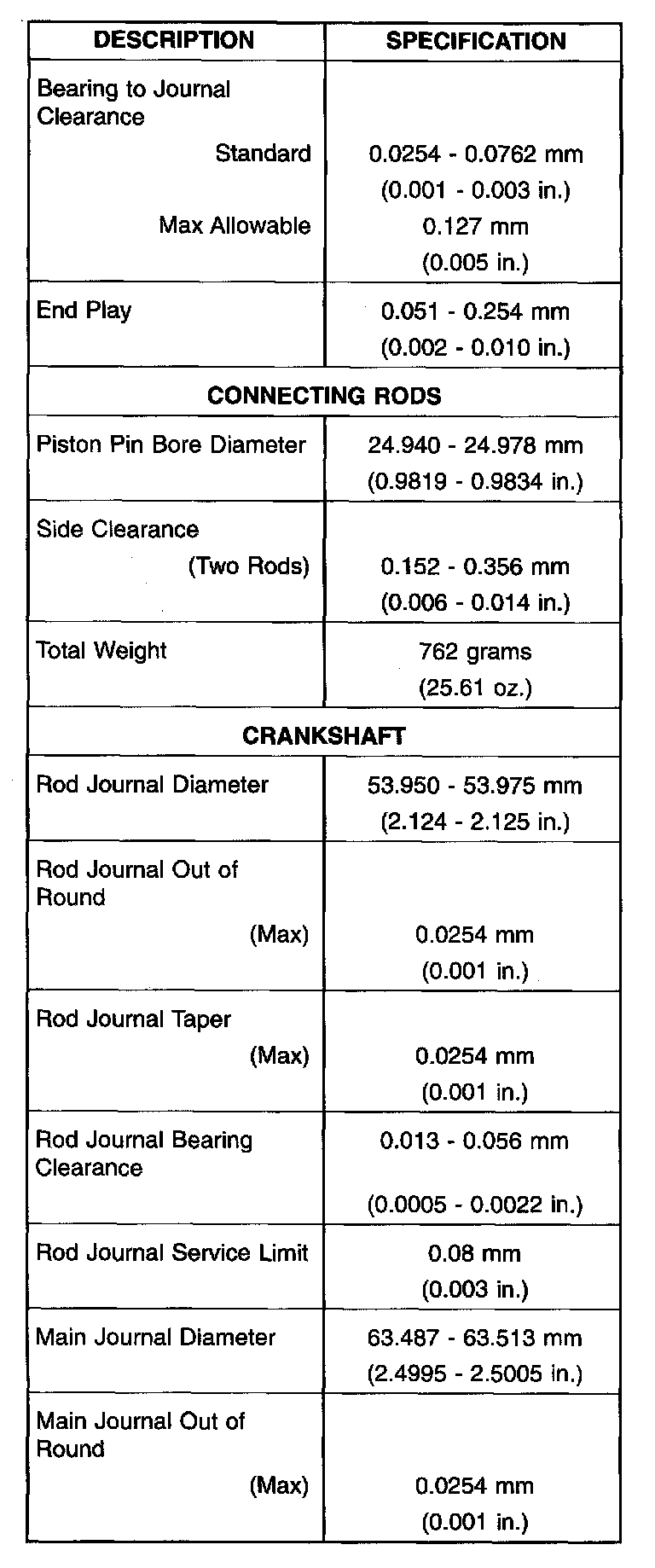

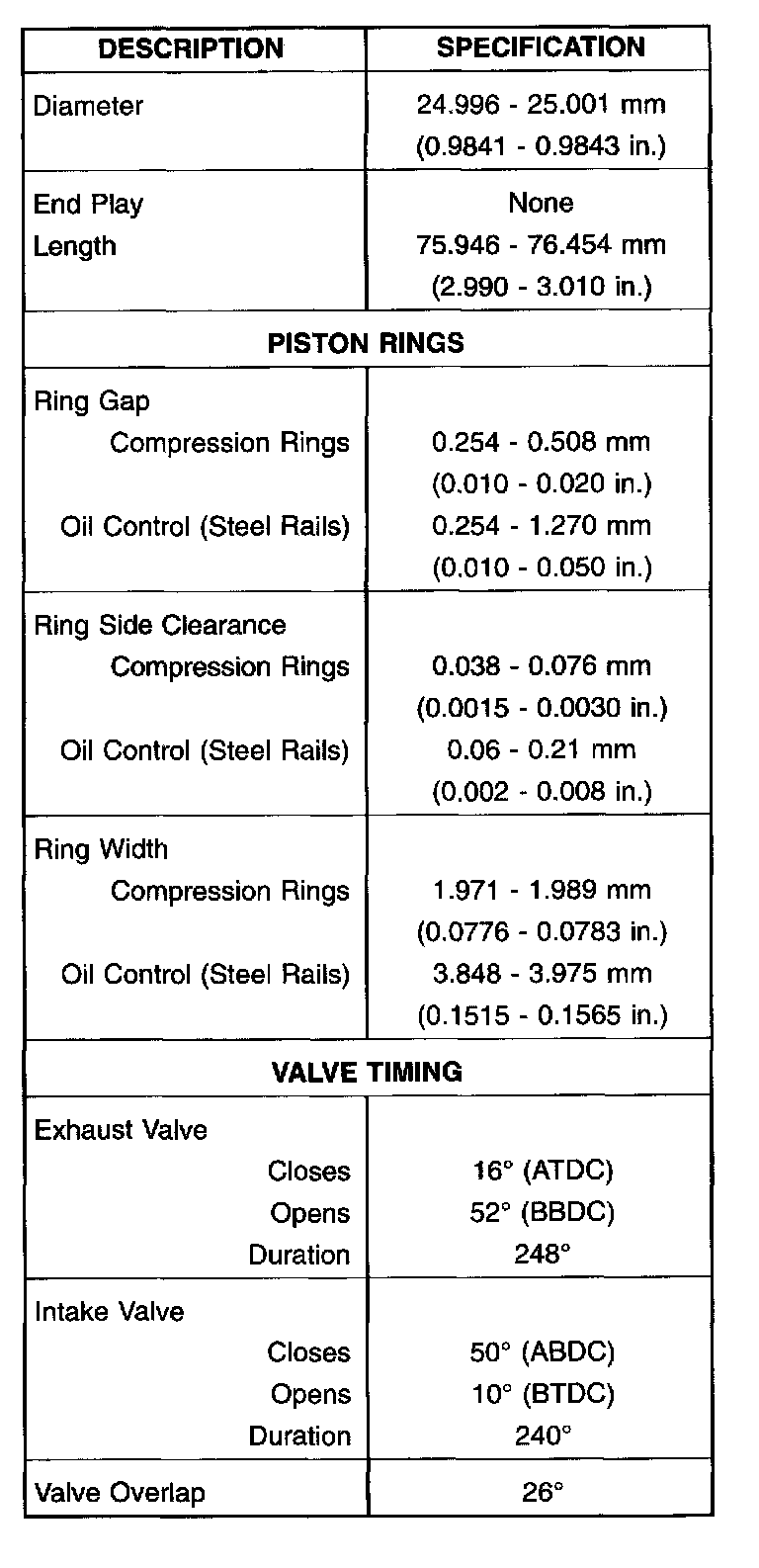

Dimensional Specifications

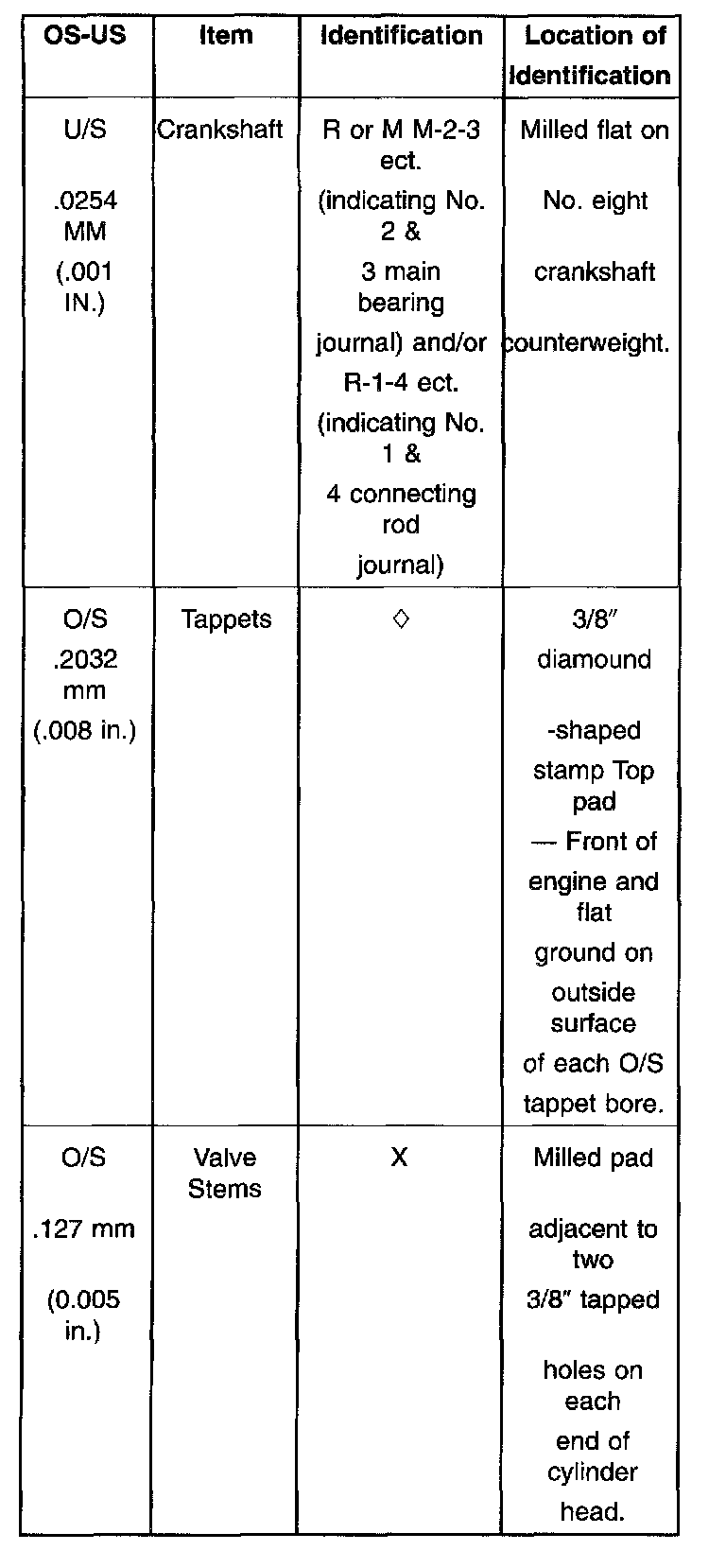

Oversize and Undersize Engine Component Marking Chart

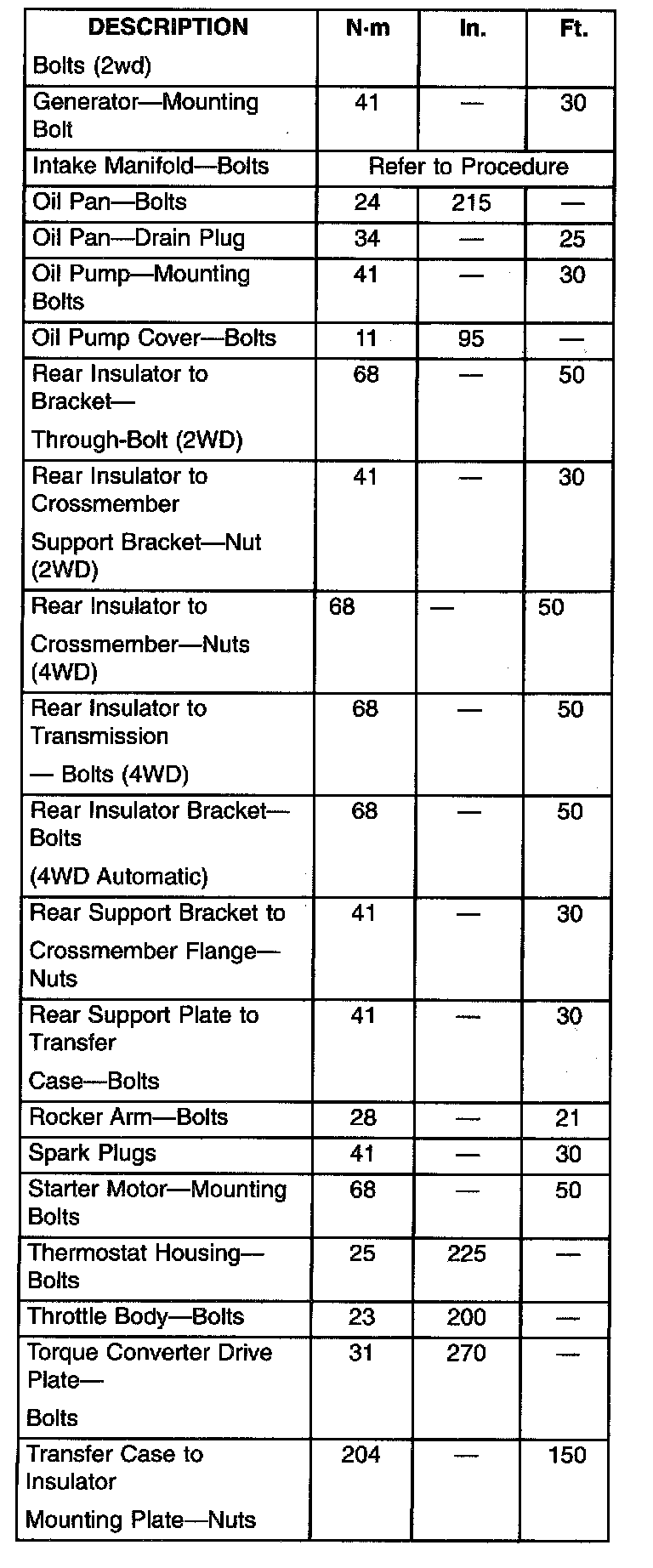

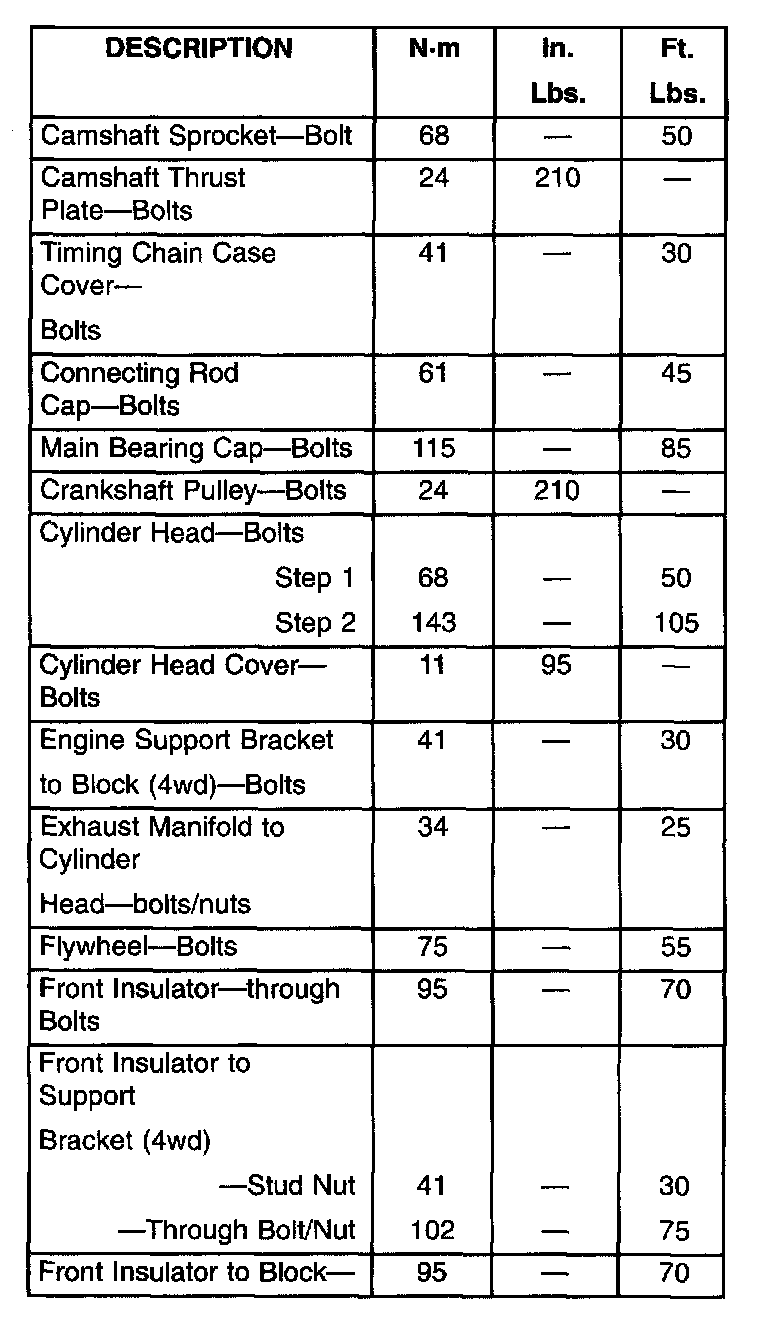

Torque Specifications
