Evaporative Emission Control Canister: Service and Repair

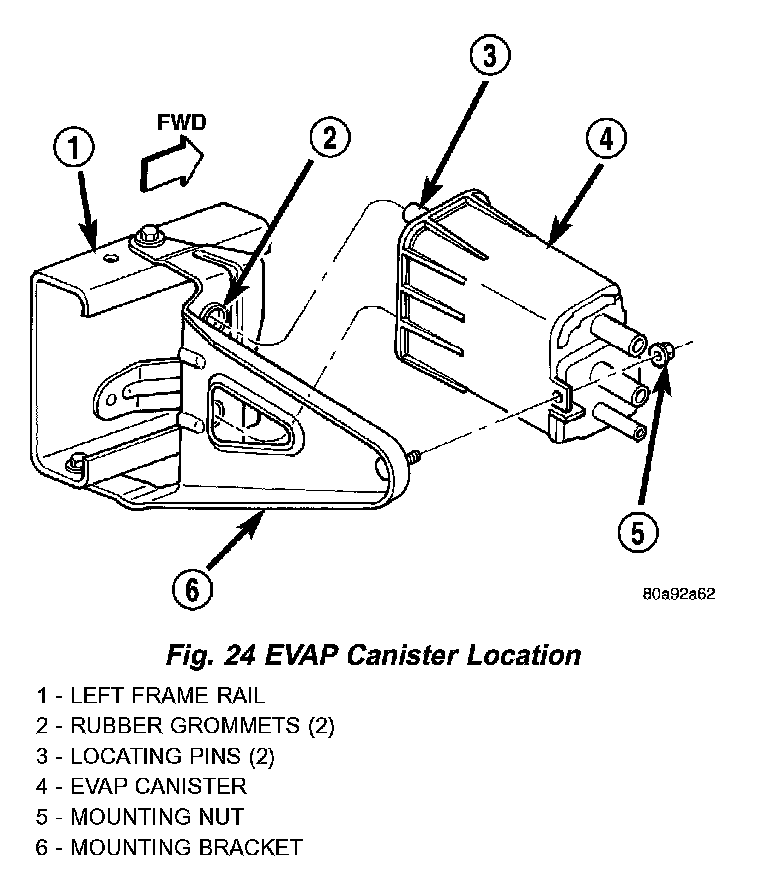

Fig. 24 EVAP Canister Location:

REMOVAL
The EVAP canister is located below the vehicle, inside the left frame rail, in front of the fuel tank.
1. Raise vehicle.
2. Disconnect vacuum lines at EVAP canister. Note location of lines before removal.
3. Remove canister mounting nut.
4. Remove canister from mounting bracket.

INSTALLATION
The EVAP canister is located below the vehicle, inside the left frame rail, in front of the fuel tank.
1. Position canister locating pins into mounting bracket grommets and install mounting nut.
2. Tighten mounting nut to 17-24 Nm (150-210 in. lbs.) torque.
3. Connect vacuum lines at canister.
4. Lower vehicle.
