Thermal Guard

REMOVAL
1. Remove the battery and the battery thermal guard from the battery tray as a unit. Refer to Battery Removal for the proper battery removal procedures.

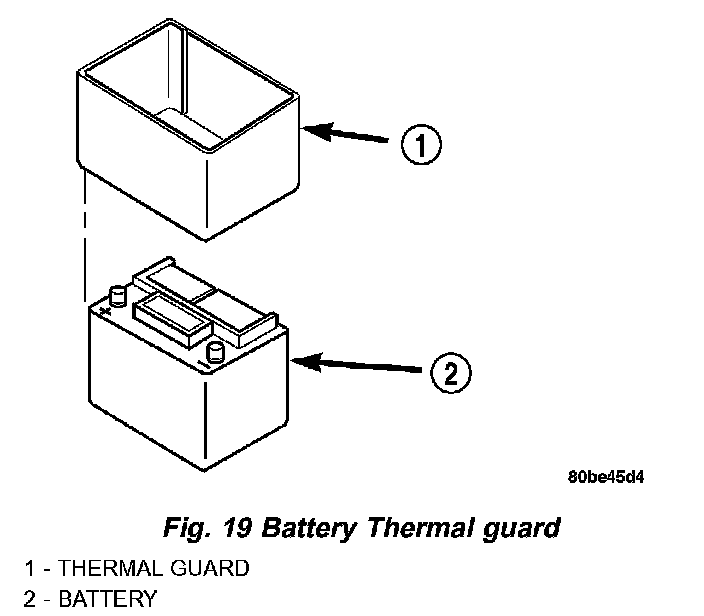

Fig.19 Battery Thermal Guard:

2. Carefully and evenly slide the battery thermal guard up off of the battery case.

INSTALLATION
1. Clean and inspect the battery thermal guard. Refer to Battery System Cleaning for the proper cleaning procedures, and refer to Battery System Inspection for the proper inspection procedures.
2. Carefully and evenly slide the battery thermal guard down over the battery case.
3. Install the battery and the battery thermal guard into the battery tray as a unit. Refer to Battery Installation for the proper battery installation procedures.
