DIAGNOSIS CHART
The clutch inspection chart Component Inspection outlines items to be checked before and during clutch installation.

Use the chart as a check list to help avoid overlooking potential problem sources during service operations.

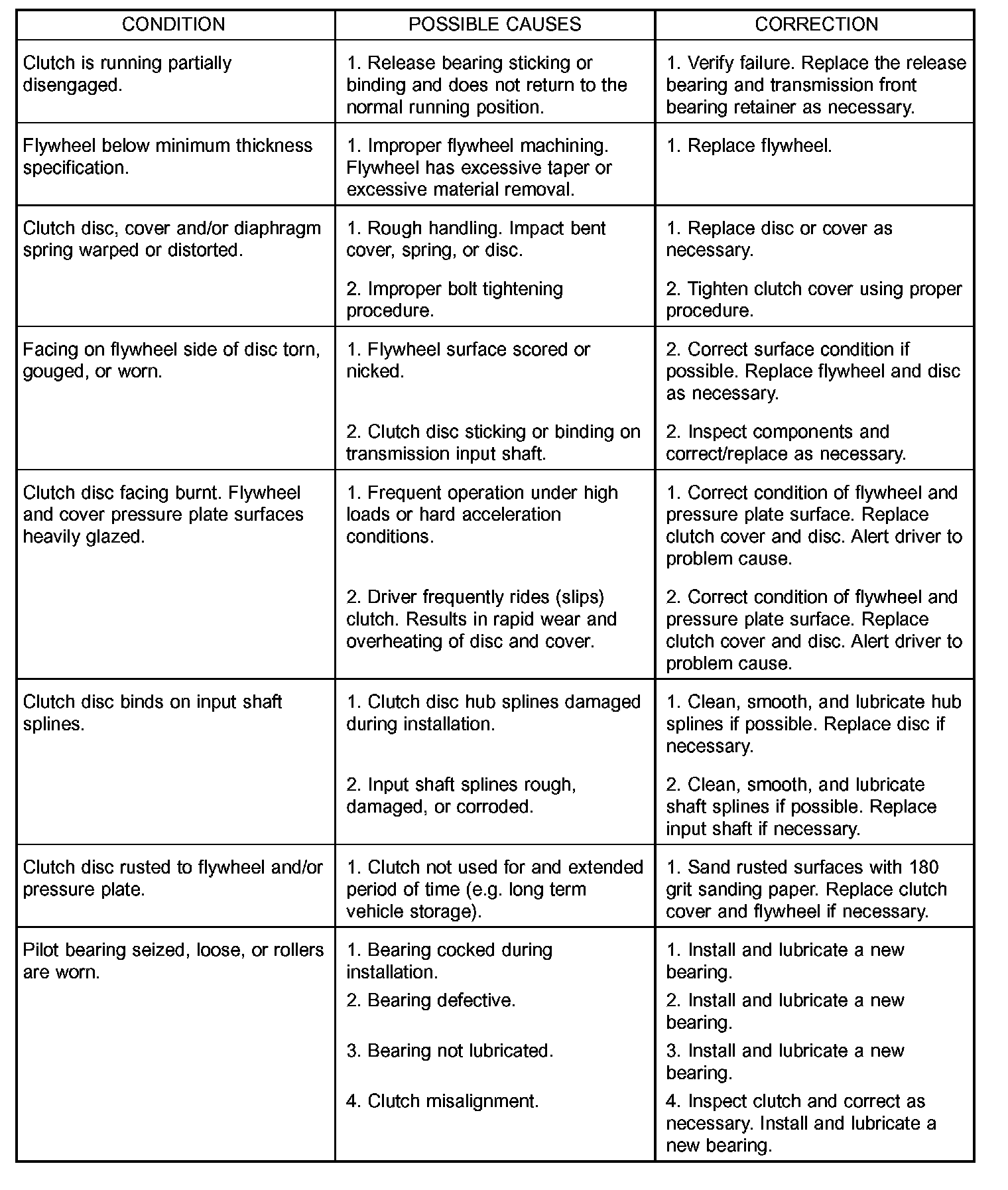

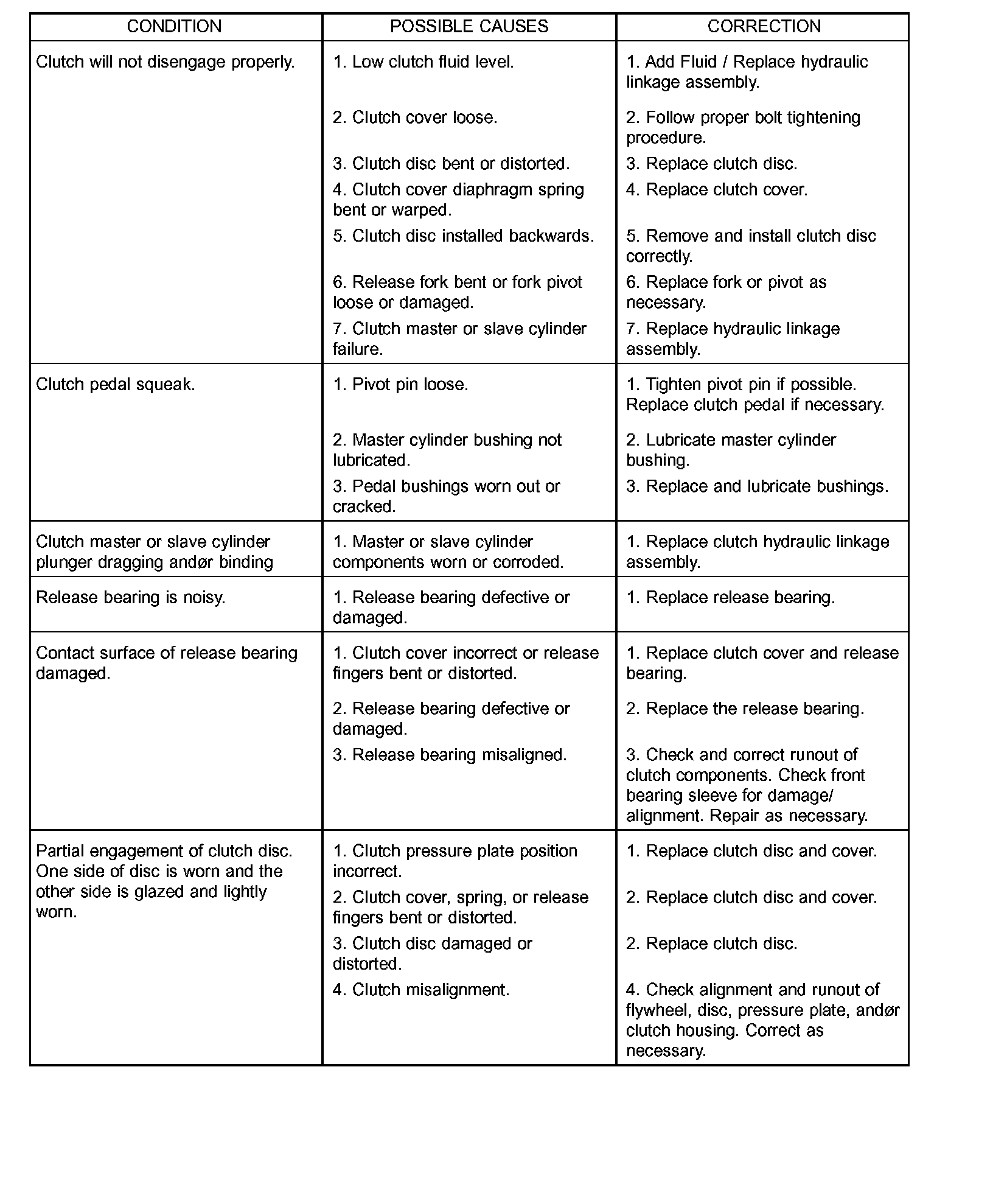

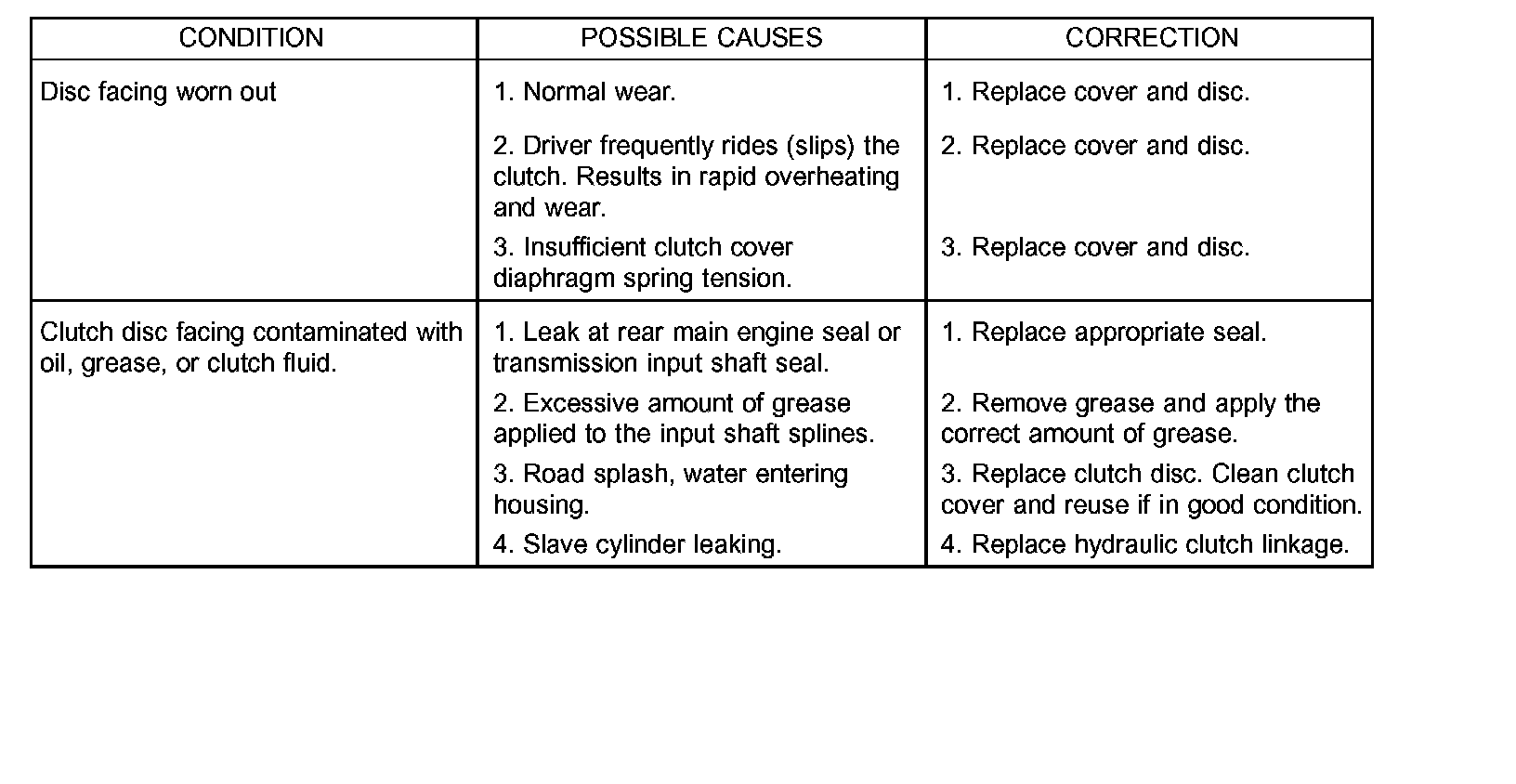

The Diagnosis Charts describe common clutch problems, causes and correction. Fault conditions are listed at the top of each chart. Conditions, causes and corrective action are outlined in the indicated columns.

The charts are provided as a convenient reference when diagnosing faulty clutch operation.
