Rear Door Latch: Service and Repair

REMOVAL

1. Remove trim panel.
2. Peel waterdam back to access latch.

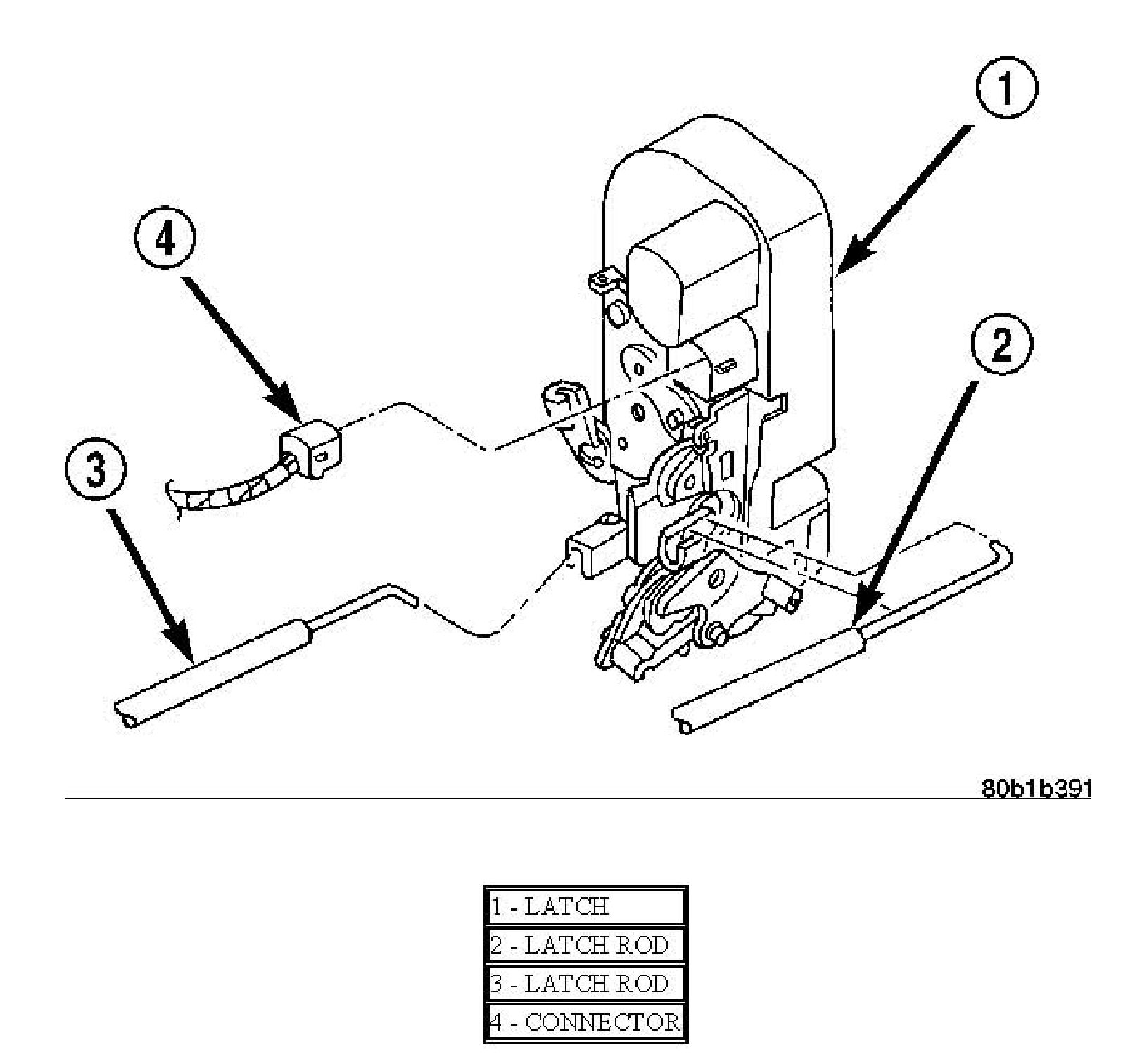

3. Disconnect latch rods from latch.






4. Disconnect the latch harness connector.
5. Remove screws attaching latch to rear door.






INSTALLATION

1. Connect the latch harness connector.
2. Install screws attaching latch to rear door and tighten to 10 Nm (85 in. lbs.).
3. Connect latch rods to latch.
4. Reposition the waterdam.
5. Install trim panel.
6. Adjust the latch if necessary.
