P1763

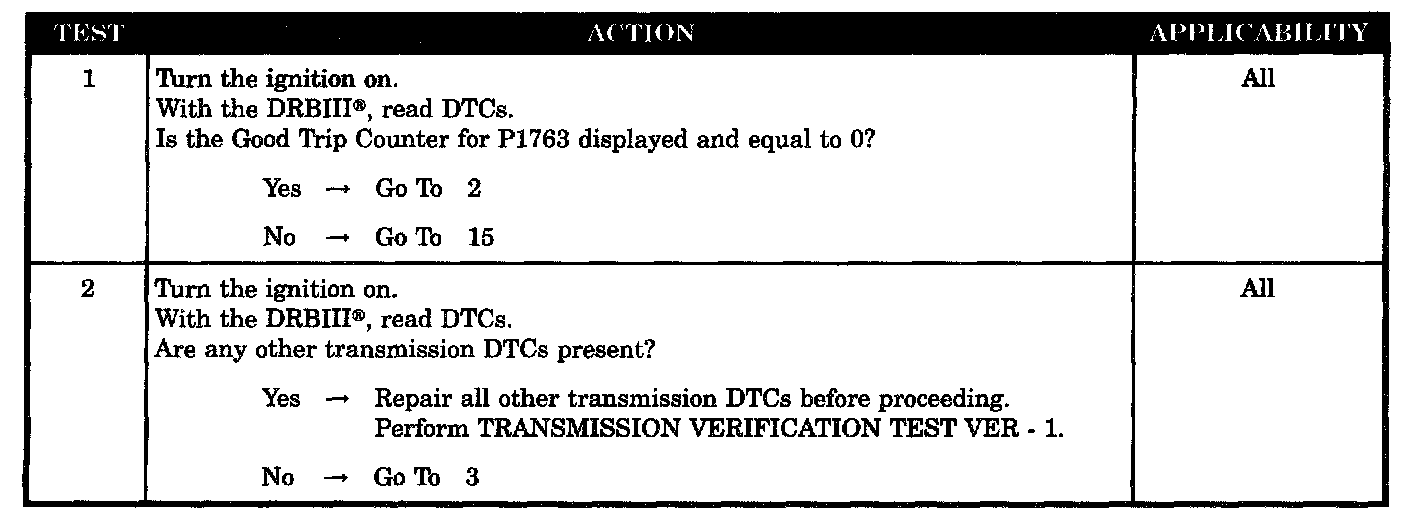

Tests 1 - 2:

Tests 3 - 7:

Tests 8 - 10:

Tests 11 - 14:

Test 15:

SYMPTOM
P1763-GOVERNOR PRESSURE SENSOR VOLTS TOO HI

WHEN MONITORED
Continuously with the key ON and the engine running.

SET CONDITION
This code will set when the voltage from the governor pressure sensor is above 4.89 volts for 8.5 seconds.

POSSIBLE CAUSES
- Other transmission DTC's present
- Park neutral DTC present
- Transmission fluid level and condition
- Intermittent problem
- 5 Volt supply circuit open
- GOVERNOR pressure sensor signal circuit open
- Sensor ground circuit open
- Governor pressure sensor signal circuit short to voltage
- 5 Volt supply circuit open inside trans
- Governor pressure sensor signal circuit open inside trans
- Governor pressure sensor ground circuit open inside trans
- Governor pressure sensor signal circuit short to voltage inside trans
- Governor pressure sensor (high)
- Powertrain control module
