Front Door Window Glass: Service and Repair

DOOR GLASS

REMOVAL

1. Remove door trim panel.
2. Remove water dam as necessary to gain access to glass regulator arm.
3. Remove inner door belt weatherstrip.
4. Remove outer door belt weatherstrip.
5. Lower glass to full down position and align glass regulator arm with access holes in inner door panel.
6. Remove front glass run channel.

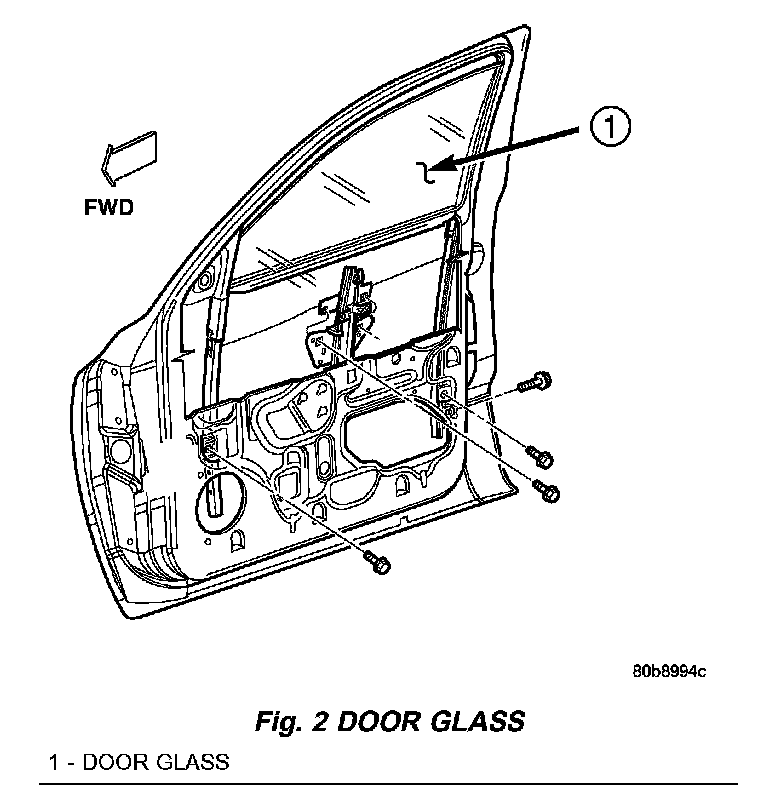

Fig. 2:

7. Remove screws attaching glass channel to regulator arm (Fig. 2).
8. Separate glass from regulator arm.
9. Lift glass upward and out of opening at top of door.

INSTALLATION

1. Slowly lower glass into door.
2. Position glass in regulator arm.
3. Install front glass run channel.
4. Install screws attaching glass channel to regulator arm.
5. Ensure glass is aligned in run channels and tighten run channel bolts.
6. Install outer door belt weatherstrip.
7. Install inner door belt weatherstrip.
8. Install water dam.
9. Install door trim panel.
