Center Armrest Inertia Latch Cover

CENTER ARMREST INERTIA LATCH COVER

REMOVAL

1. Move the drivers seat position to full forward with seat back full forward.
2. Place center arm rest in the down position.

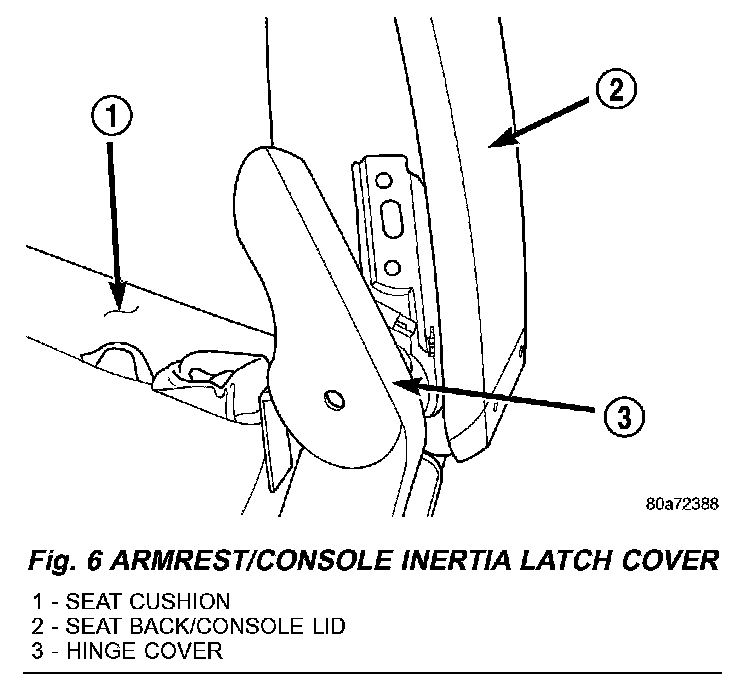

Fig. 6:

3. Remove the screw securing the cover to the inertia latch (Fig. 6).
4. Remove the upper and lower inertia latch covers.

INSTALLATION

1. Install the upper latch cover onto the upper latch inertia arm. Ensure the check strap loops under the stud on the side of the lower stanchion/post.
2. Install the lower latch cover onto the inertia latch upper arm working it around the latch bracket.
3. Align the lower latch cover, the upper latch cover, and the latch bracket to the screw hole on the arm.
4. Secure the cover with the screw and tighten to 4 N.m (37 in. lbs.).
5. Cycle the armrest through a full range of travel and check for freedom of movement. Adjust the latch covers as necessary.
