Left Side

INSTALLATION-LEFT SIDE

CAUTION: Do not use harsh cleaners to clean the cylinder head covers. Severe damage to covers may occur.

CAUTION: DO NOT allow other components including the wire harness to rest on or against the cylinder head cover. Prolonged contact with other objects may wear a hole in the engine cylinder head cover.

1. Clean cylinder head cover and both sealing surfaces. Inspect and replace gasket as necessary.

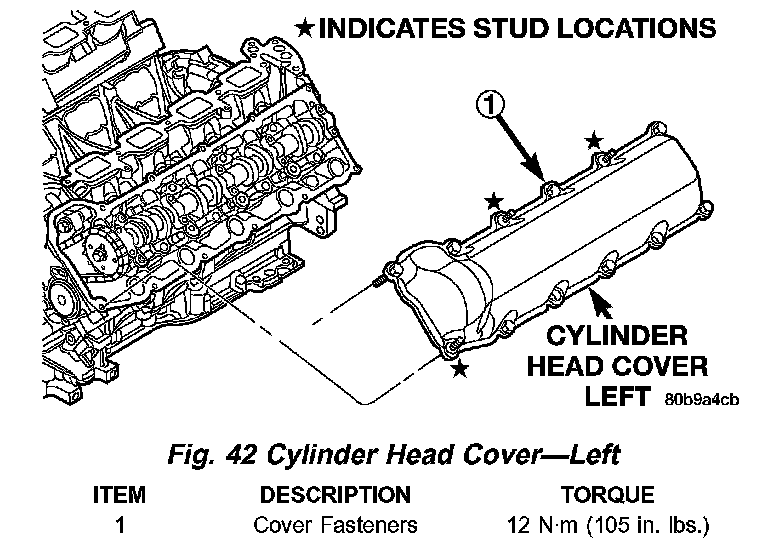

2. Install cylinder head cover and hand start all fasteners. Verify that all studs are in the correct location shown in (Fig. 42).
3. Tighten cylinder head cover bolts and double ended studs to 12 Nm (105 in. lbs.).
4. Install left side breather and connect breather tube.
5. Connect injector electrical connectors and injector harness retaining clips.
6. Install the resonator and air inlet hose.
7. Connect negative cable to battery.
