Parking Lamp: Service and Repair
REMOVAL1. Disconnect and isolate the battery negative cable.

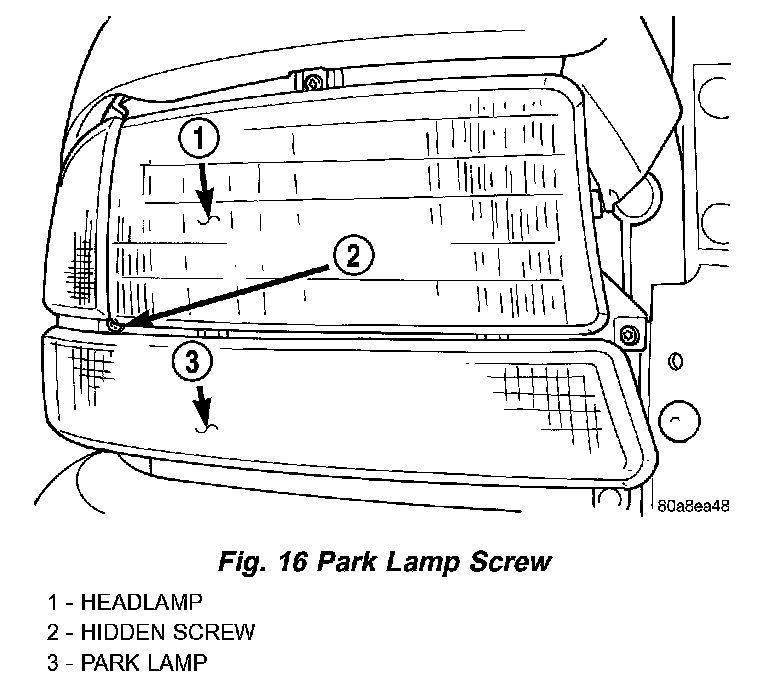

Fig.16 Park Lamp Screw:
2. Remove torx screw attaching park lamp to headlamp module.
3. Pull the park and turn signal lamp outward and separate from headlamp module.

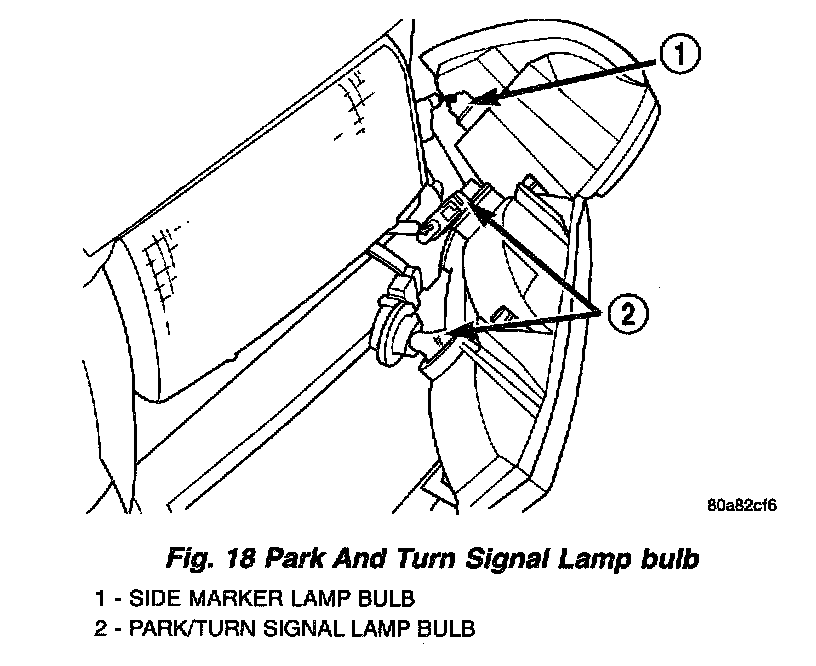

Fig. 18 Park And Turn Signal Lamp Bulb:
4. Remove park and turn signal sockets from back of lamp.
5. Remove side marker socket from back of lamp.
6. Separate park and turn signal lamp from vehicle.
INSTALLATION
1. Install the side marker socket into the back of the lamp.
2. Install the park and turn signal sockets into the back of the lamp.
3. Align the park and turn signal lamp under the headlamp module.
4. Slide the park and turn signal lamp inward under headlamp module and seat.
5. Install the screw attaching the park lamp to the headlamp module.
6. Connect the battery negative cable.
