2ND Row Center Seat Back

2ND ROW CENTER SEAT BACK

REMOVAL

1. Tumble outboard seats forward.
2. Remove screw attaching cover to hinge.

Fig. 15:

3. Using a trim stick C-4755 or equivalent, pry trim covers from center seat back to center seat cushion hinge (Fig. 15).

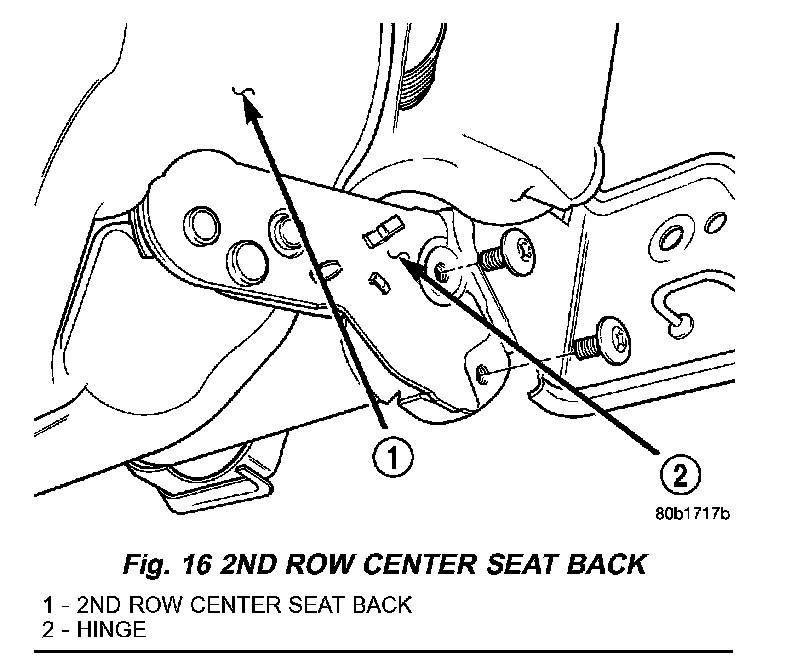

Fig. 16:

4. Remove bolts attaching center seat back to seat cushion (Fig. 16).
5. Separate center seat back from seat cushion.

INSTALLATION

1. Position center seat back on seat cushion.
2. Install bolts attaching center seat back to seat cushion (Fig. 16) and tighten bolt located in round hole first than bolt located in slotted hole to 27 N.m (19 ft. lbs.).
3. Install covers on center seat back to seat cushion hinge.
4. Install screw attaching cover to hinge.
5. Return outboard seats to seating position.
