Cooling System Filling

COOLING SYSTEM FILLING

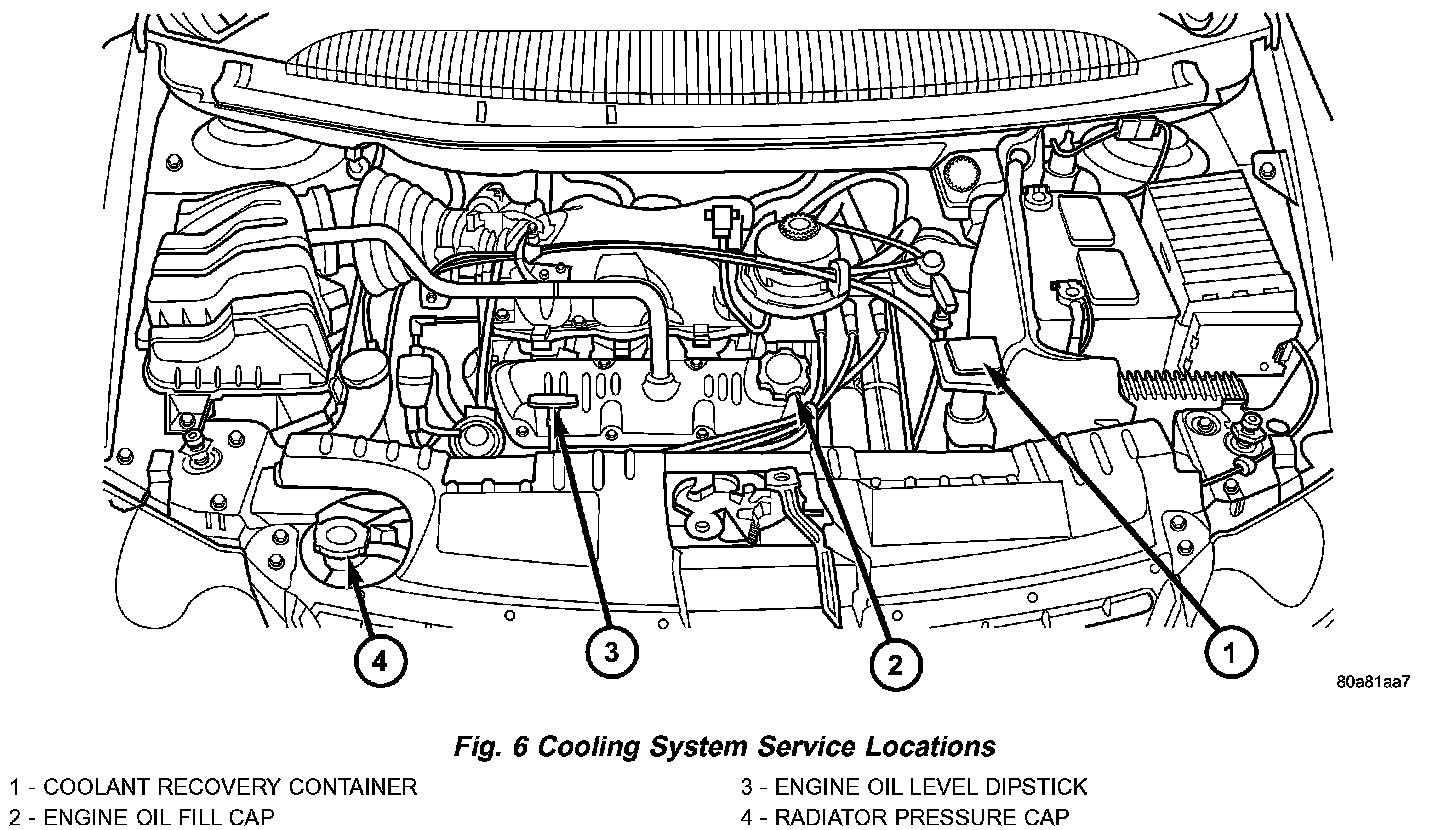

Fig.6:

Remove radiator pressure cap and fill system, using a 50/50 mix of Mopar Antifreeze/Coolant, 5 Year/100,000 Mile Formula and distilled water.

Continue filling system until full. Be careful not to spill coolant on drive belts or the generator.

Fill coolant recovery/reserve container to at least the MAX mark with 50/50 solution. It may be necessary to add coolant to the recovery/reserve container after three or four warm up/cool down cycles to maintain coolant level between the MAX and MIN mark. This will allow trapped air to be removed from the system.
