P0622

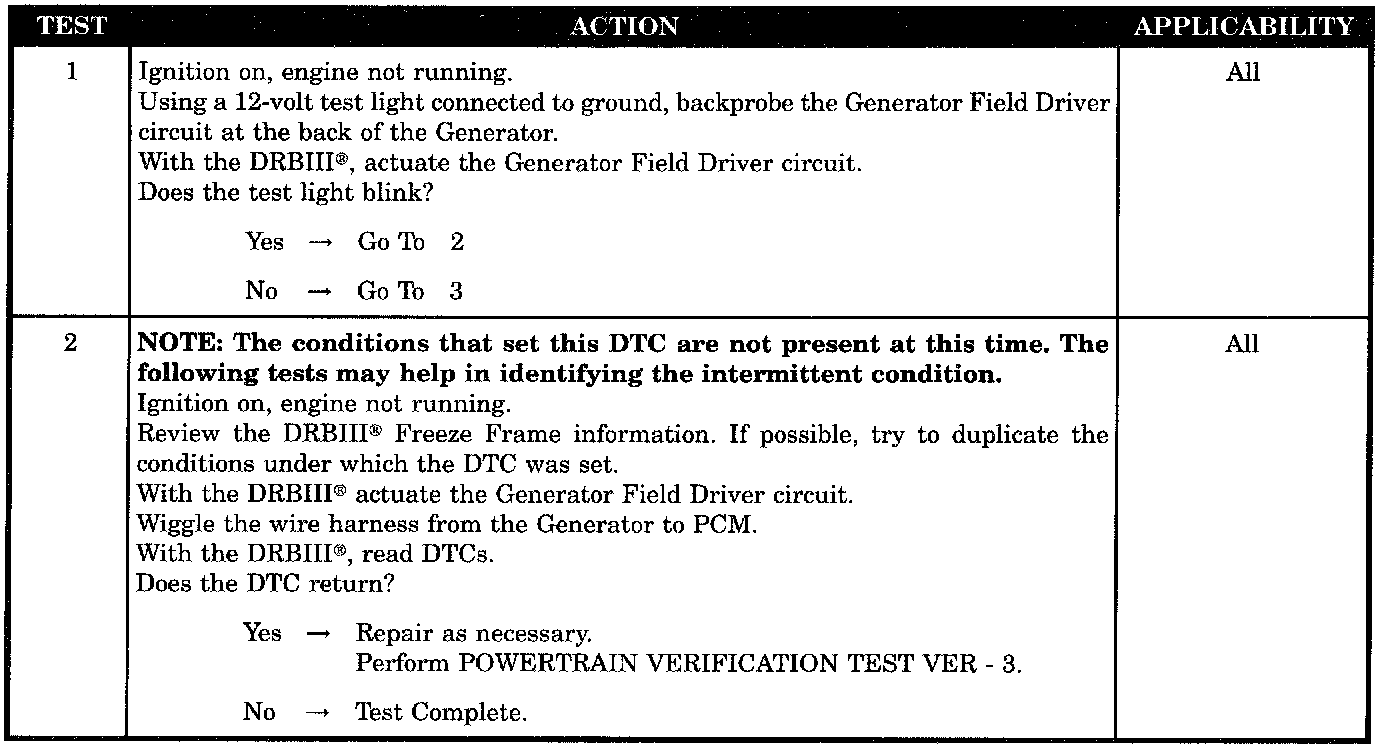

Tests 1 - 2:

Tests 3 - 7:

Test 8:

SYMPTOM
P0622-GENERATOR FIELD NOT SWITCHING PROPERLY

WHEN MONITORED
With the ignition key ON and the engine running.

SET CONDITION
When the PCM tries to regulate the generator field with no result during monitoring.

POSSIBLE CAUSES
- Intermittent condition
- Generator field source (+) circuit open
- Generator field driver circuit short to ground
- Generator field driver circuit open
- Generator field coil open
- Generator field coil shorted
- PCM
