Disassembly
Rear Axle - 267RBI / DIFFERENTIAL w/Powr-LokDISASSEMBLY
The Powr-Lok differential has a two-piece cross shaft and uses 2 disc and 3 plates for each clutch pack. One plate and one disc in each clutch pack is dished.
NOTE: Pay close attention to the clutch pack arrangement during this procedure. Note the direction of the concave and convex side of the plates and discs.

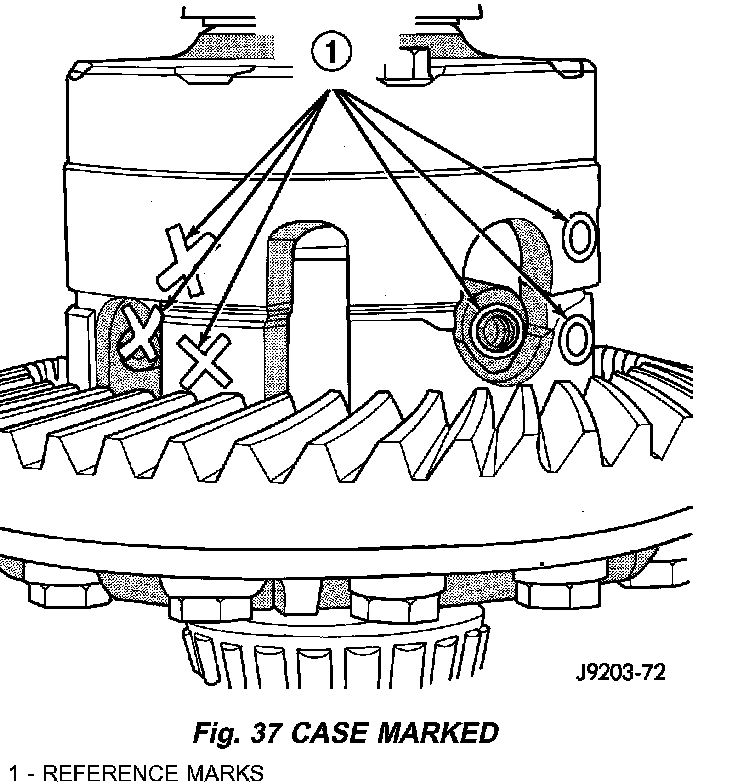

1. Mark the ring gear half and cover half for installation reference (Fig. 37).

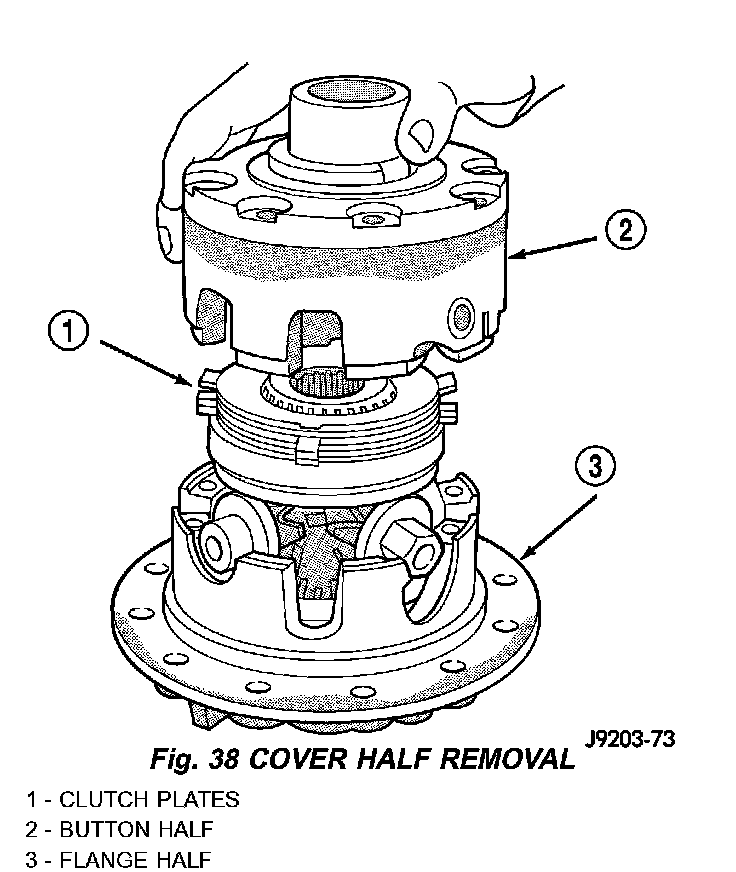

2. Remove the case attaching bolts and remove the button cover half (Fig. 38).

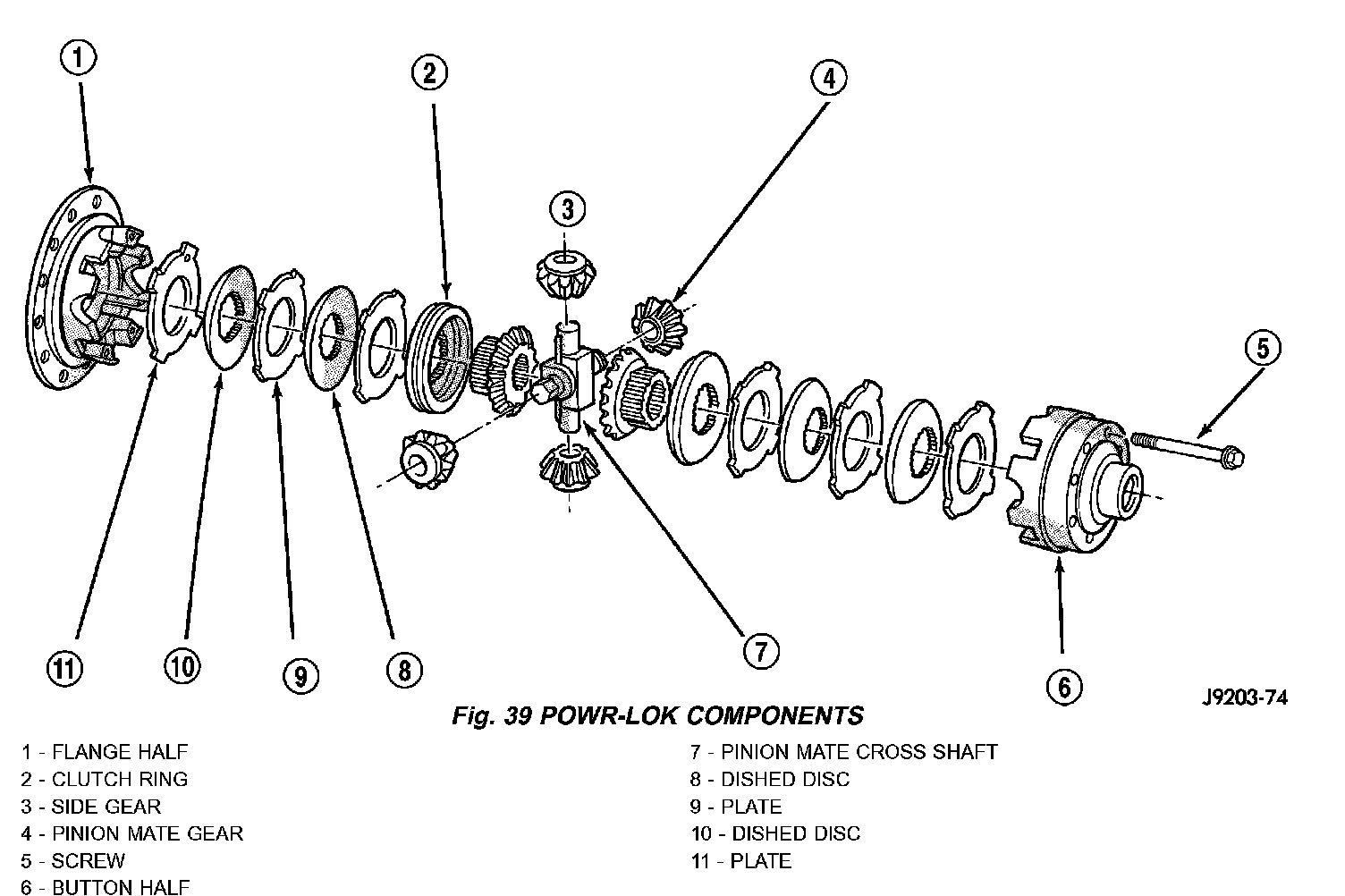

3. Remove top clutch pack (Fig. 39).
4. Remove top side gear clutch ring.
5. Remove top side gear.
6. Remove pinion mate gears and cross shafts.
7. Remove the same parts listed above from the ring gear flange half of the case. Keep these parts with the flange cover half for correct installation in their original positions.
