Front

STABILIZER BAR

REMOVAL
1. Raise and support the vehicle.
2. Hold the stabilizer link shafts with a wrench and remove the link nuts at the stabilizer bar.
3. Remove the retainers and grommets from the stabilizer bar links.
4. Remove the stabilizer bar link nuts from the axle brackets.

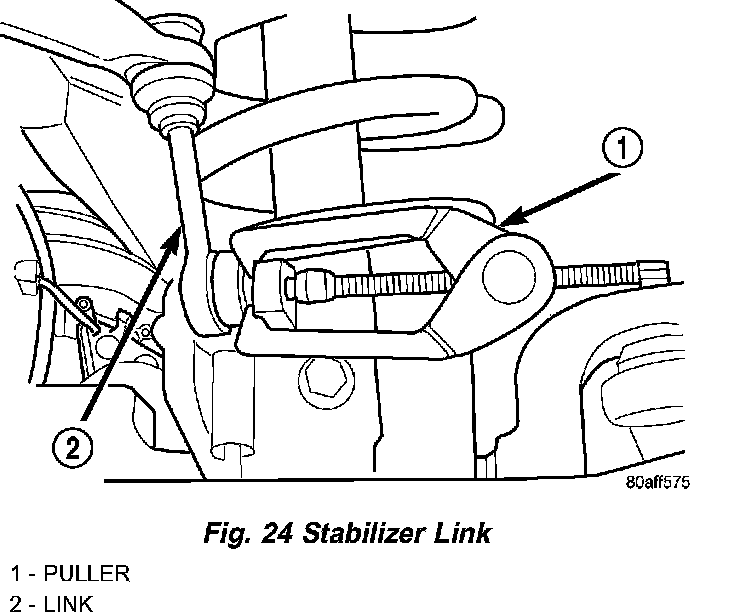

5. Remove the links from the axle brackets with Puller C-3894-A.
6. Remove the stabilizer bar clamps from the frame rails and remove the stabilizer bar.

INSTALLATION
1. Position the stabilizer bar on the frame rail and install the clamps and bolts. Ensure the bar is centered with equal spacing on both sides.
2. Tighten the clamp bolts to 54 Nm (40 ft. lbs.).
3. Install links to the axle bracket and tighten nut to 47 Nm (35 ft. lbs.).
4. Install links, retainers, grommets and nuts to the stabilizer bar. Hold the link shaft with a wrench and tighten the nuts to 37 Nm (27 ft. lbs.).
5. Remove the supports and lower the vehicle.
