Load Floor

LOAD FLOOR

REMOVAL

1. Fold the rear seat cushion up.

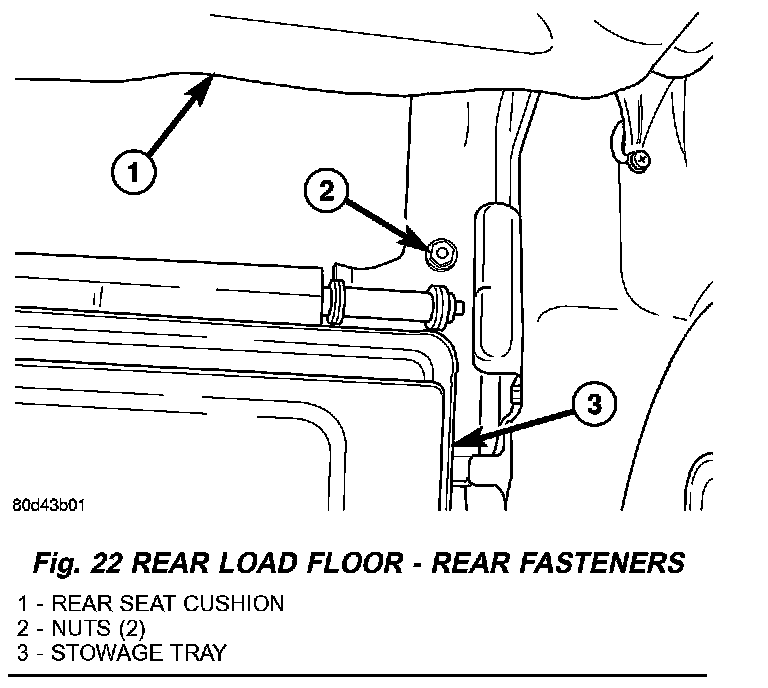

Fig. 22:

2. Remove the rear nuts in each corner. (Fig. 22)

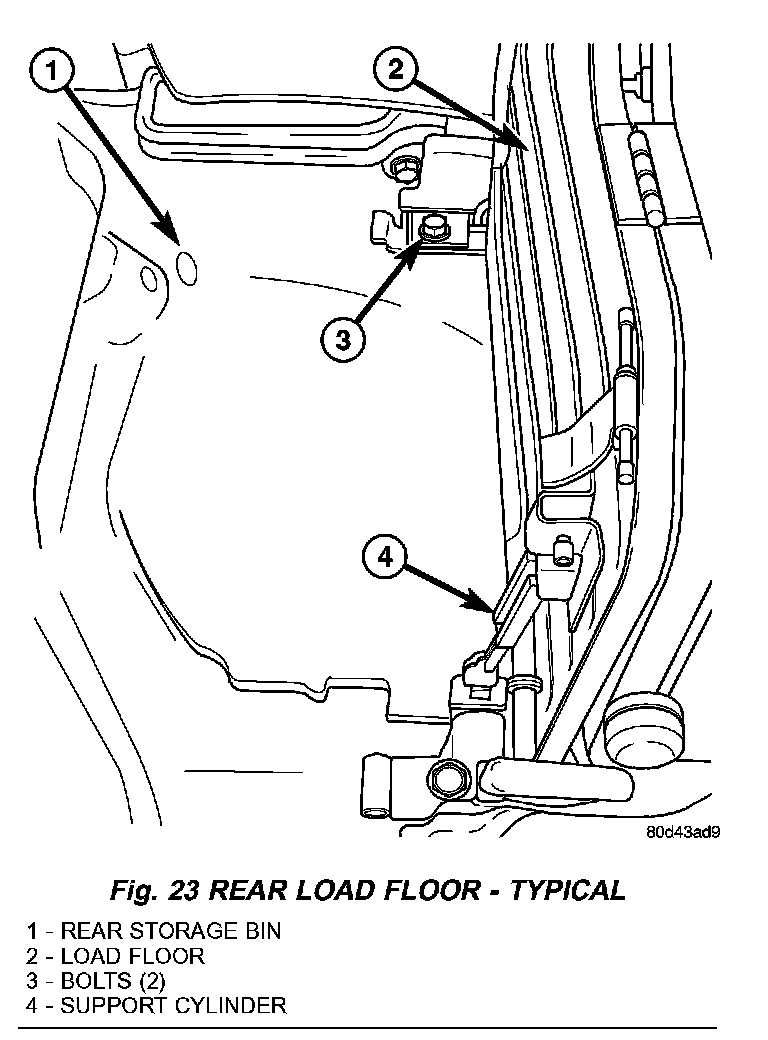

Fig. 23:

3. Fold the load floor up, remove the front bolts and remove the tray. (Fig. 23)

INSTALLATION

1. Install the load floor and install the bolts.
2. Tighten the bolts to 40 N.m (30 ft.lbs).
3. Fold the load floor down and install the nuts.
4. Tighten the nuts to 25 N.m (18 ft.lbs).
