Fog/Driving Lamp Bulb: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Disengage fog lamp harness connector.

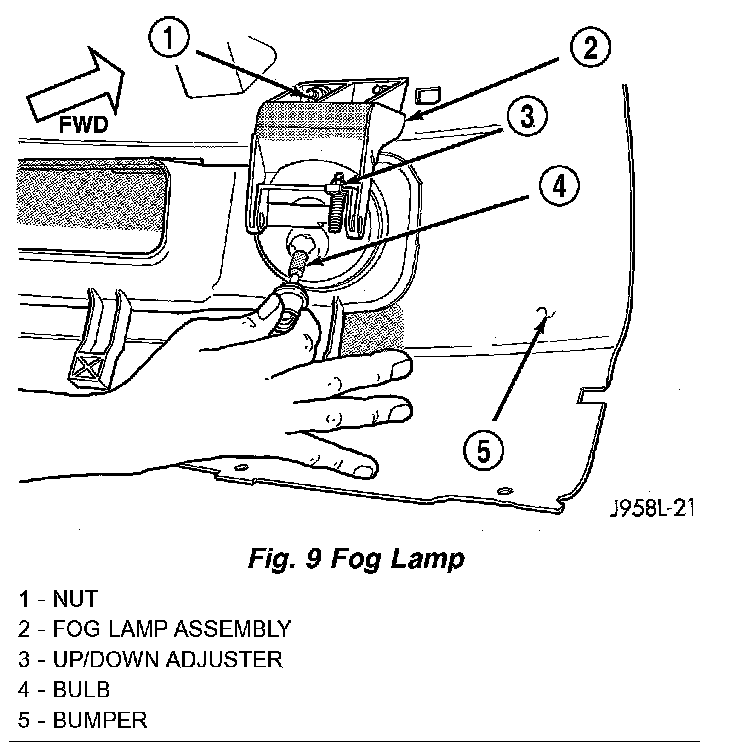

Fig. 9 Fog Lamp:

3. Rotate bulb assembly counterclockwise and pull from lamp to separate.

INSTALLATION

CAUTION: Do not touch the bulb glass with fingers or other oily surfaces. Reduced bulb life will result.

1. Position bulb assembly in lamp and rotate clockwise.
2. Connect fog lamp harness connector.
3. Connect the battery negative cable.
