Diagnosis By Symptom

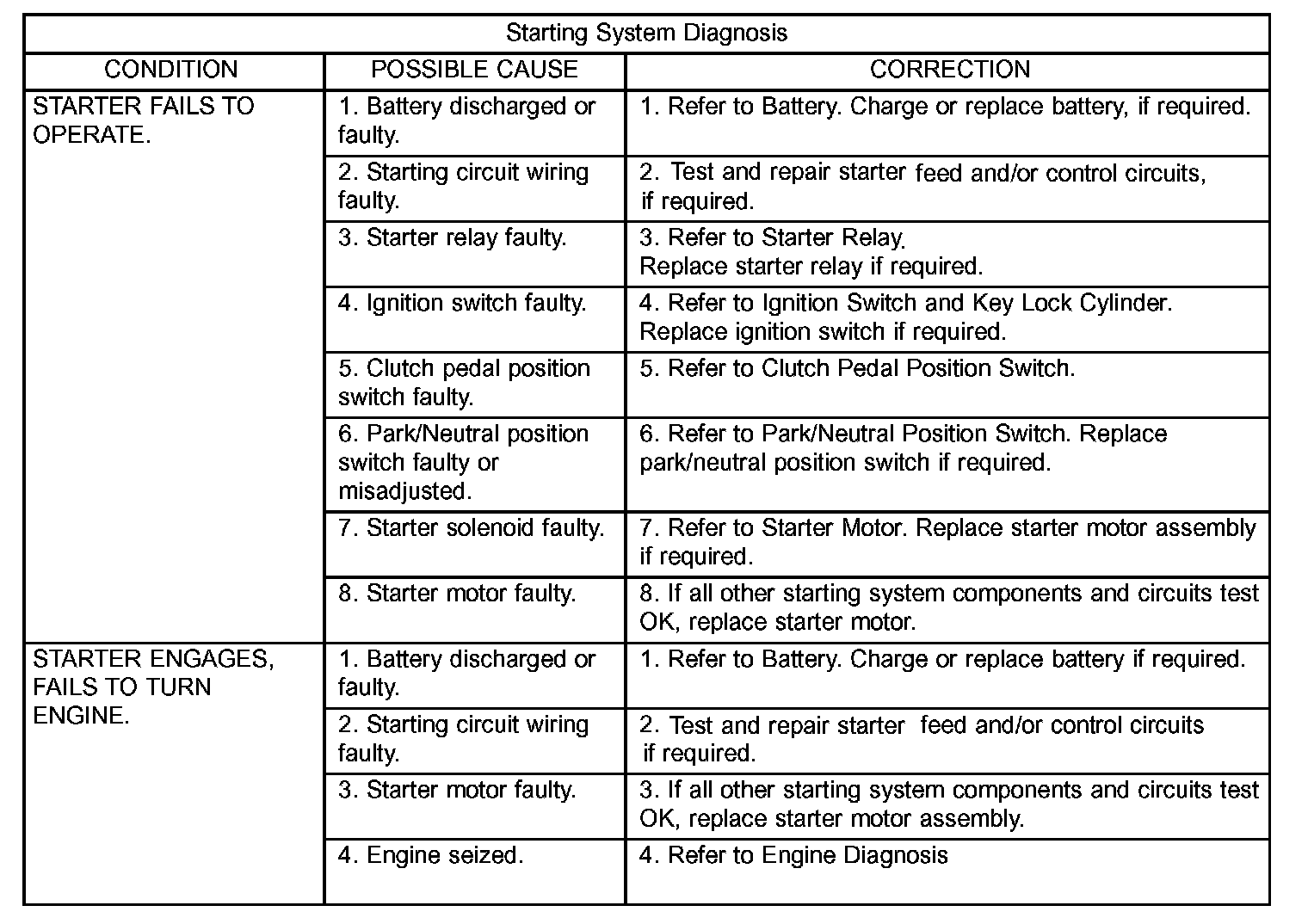

Starting System Diagnosis (Part 1 Of 2):

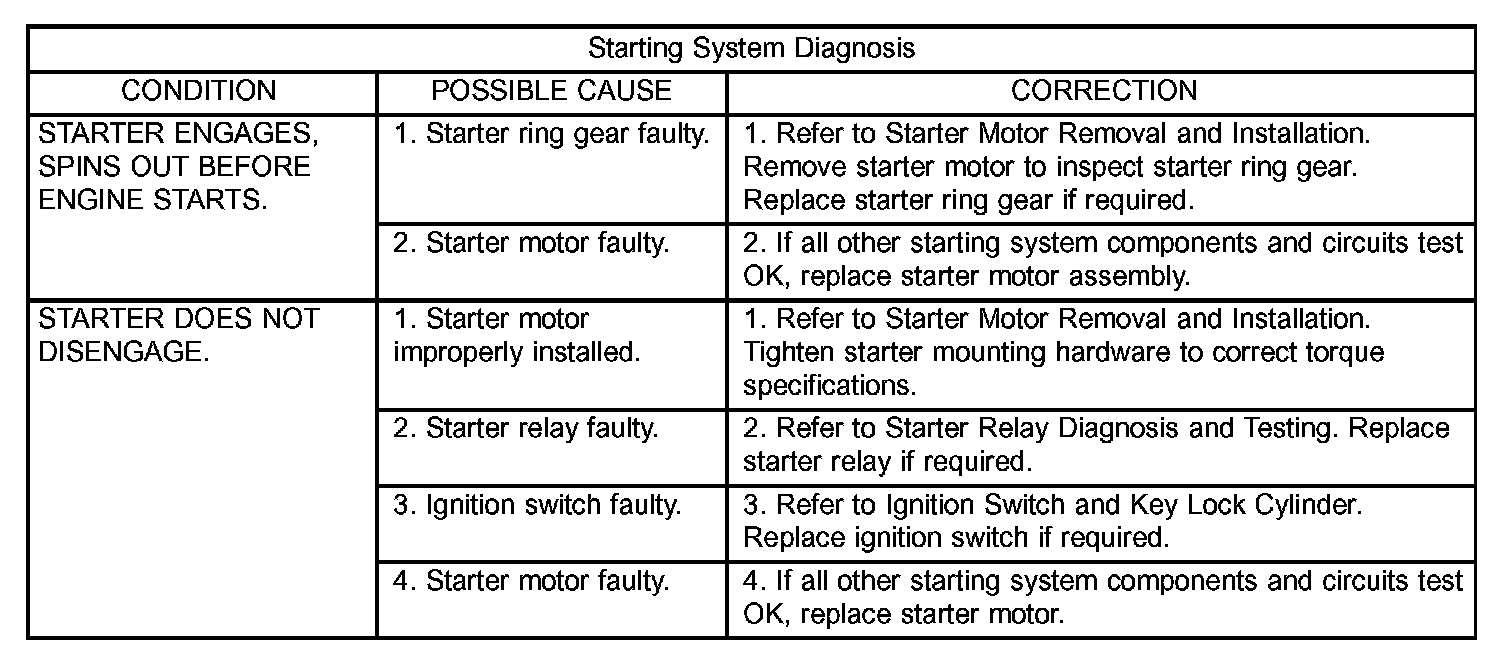

Starting System Diagnosis (Part 2 Of 2):

The battery starting, and charging systems operate in conjunction with one another, and must be tested as a complete system. For correct starting/charging system operation, all of the components involved in these 3 systems must perform within specifications.
