Rear Panel Speaker

Rear Panel Speaker Replacement
REMOVAL

Without Cargo Compartment Trim
1. Disconnect and isolate the battery negative cable.

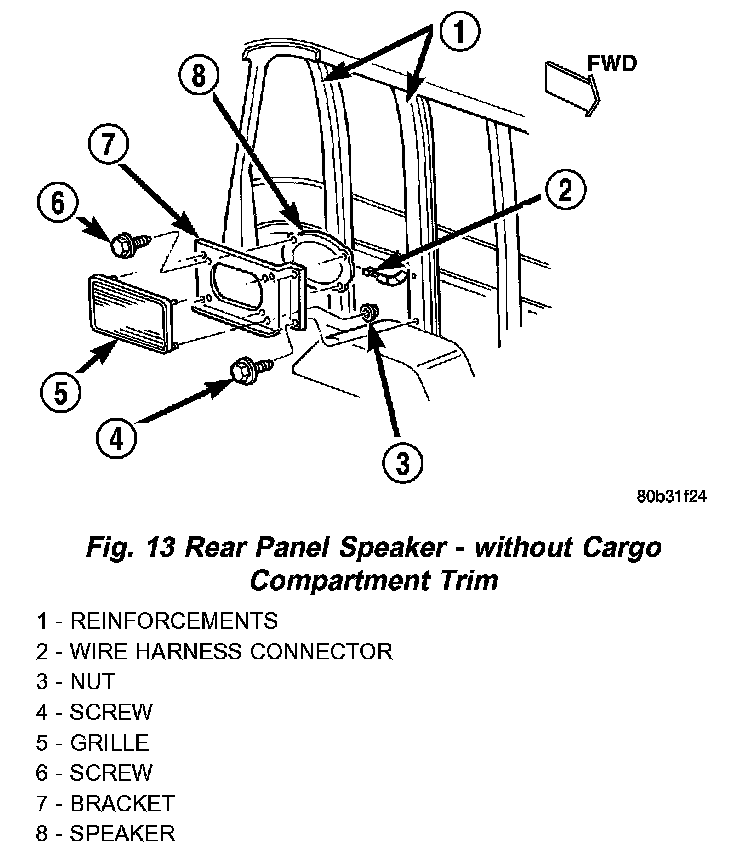

Fig. 13 Rear Panel Speaker - Without Cargo Compartment Trim:

2. Remove the two screws that secure the speaker mounting bracket to the rear panel reinforcements.
3. Pull the speaker mounting bracket away from the rear panel reinforcements far enough to access the body wire harness connector.
4. Disconnect the body wire harness connector from the speaker connector receptacle.
5. Remove the four nuts that secure the grille to the rear of the speaker mounting bracket.
6. Remove the grille from the front of the speaker mounting bracket.
7. Remove the four screws that secure the speaker to the front of the speaker mounting bracket.
8. Remove the speaker from the rear of the speaker mounting bracket.

With Cargo Compartment Trim
1. Disconnect and isolate the battery negative cable.
2. Remove the trim panel from the rear panel.
3. Disconnect the body wire harness connector from the speaker connector receptacle.

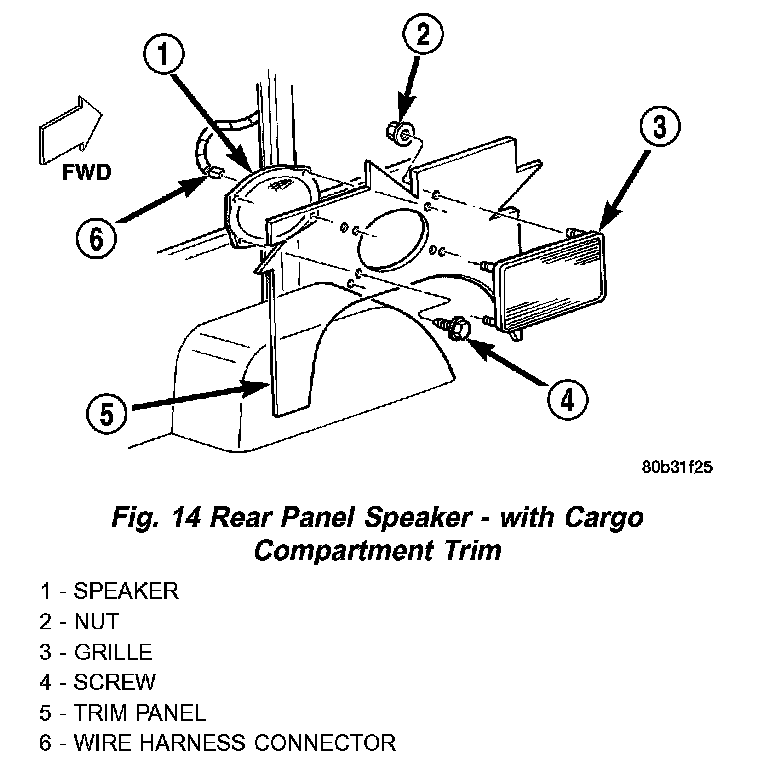

Fig. 14 Rear Panel Speaker - With Cargo Compartment Trim:

4. Remove the four nuts that secure the speaker grille to the rear of the trim panel.
5. Remove the speaker grille from the face of the rear panel trim panel.
6. Remove the four screws that secure the speaker to the face of the rear panel trim panel.
7. Remove the speaker from the rear of the rear panel trim panel.

INSTALLATION
Without Cargo Compartment Trim
1. Position the speaker onto the rear of the speaker mounting bracket.
2. Install and tighten the four screws that secure the speaker to the front of the speaker mounting bracket. Tighten the screws to 2.2 Nm (20 in. lbs.).
3. Position the grille onto the front of the speaker mounting bracket.
4. Install and tighten the four nuts that secure the grille to the rear of the speaker mounting bracket. Tighten the nuts to 2.2 Nm (20 in. lbs.).
5. Position the speaker mounting bracket to the rear panel.
6. Reconnect the body wire harness connector to the speaker connector receptacle.
7. Position the speaker mounting bracket onto the rear panel reinforcements.
8. Install and tighten the two screws that secure the speaker mounting bracket to the rear panel reinforcements. Tighten the screws to 2.2 Nm (20 in. lbs.).
9. Reconnect the battery negative cable.

With Cargo Compartment Trim
1. Position the speaker onto the rear of the rear panel trim panel.
2. Install and tighten the four screws that secure the speaker to the face of the rear panel trim panel. Tighten the screws to 2.2 Nm (20 in. lbs.).
3. Position the speaker grille onto the face of the rear panel trim panel.
4. Install and tighten the four nuts that secure the speaker grille to the rear of the rear panel trim panel. Tighten the nuts to 2.2 Nm (20 in. lbs.).
5. Reconnect the body wire harness connector to the speaker connector receptacle.
6. Install the trim panel onto the rear panel.
7. Reconnect the battery negative cable.
