Control Assembly, HVAC

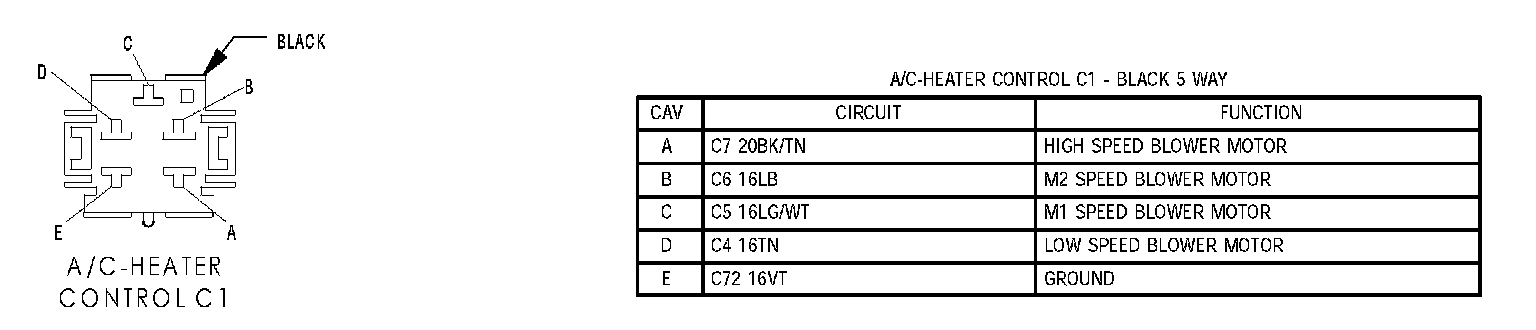

A/C - Heater Control C1:

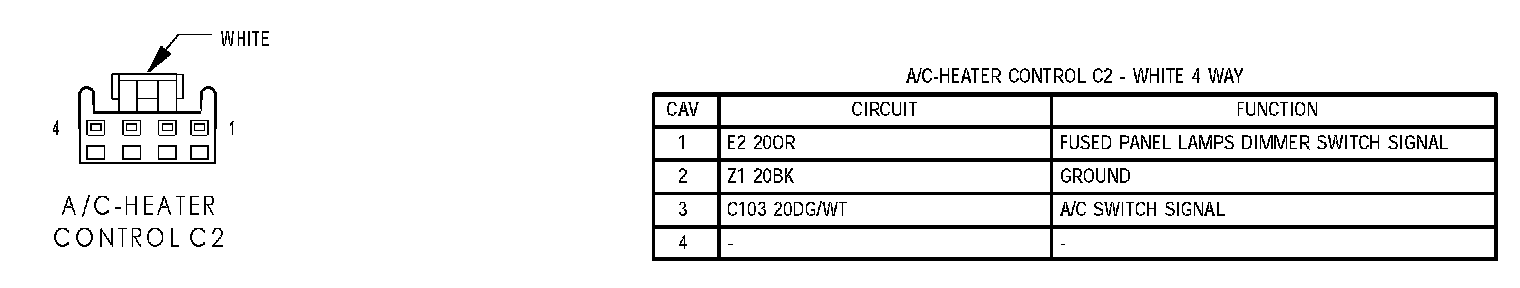

A/C - Heater Control C2:

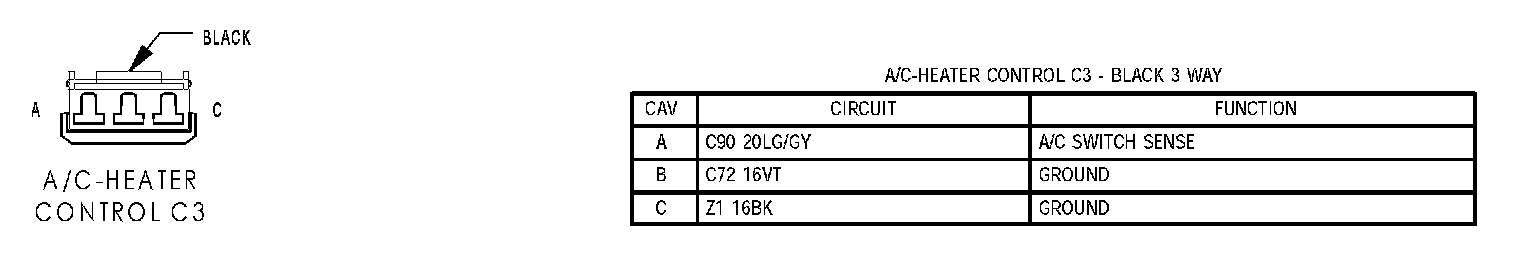

A/C - Heater Control C3:




A/C - Heater Control C4:

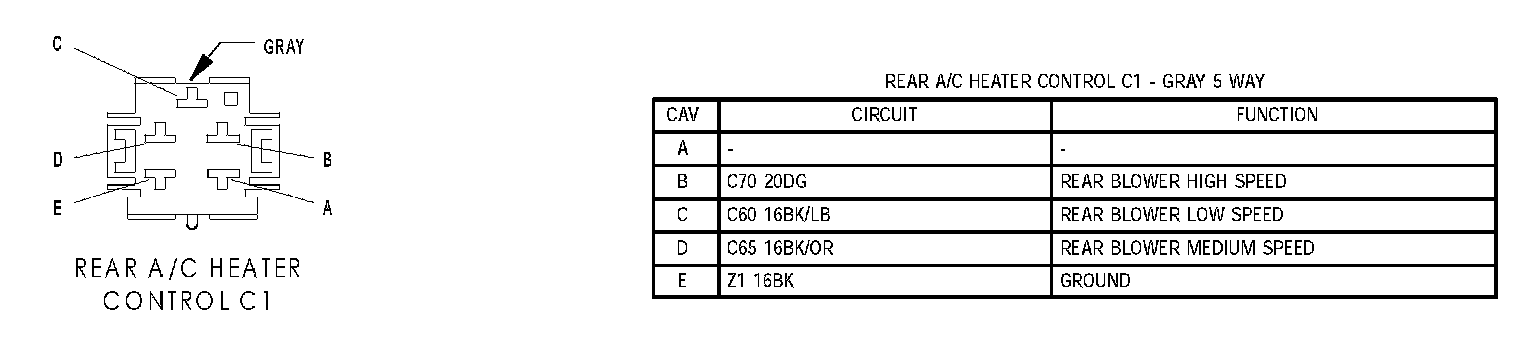

Rear A/C Heater Control C1:




Rear A/C Heater Control C2:
