PRNDL Switch Circuit Shorted

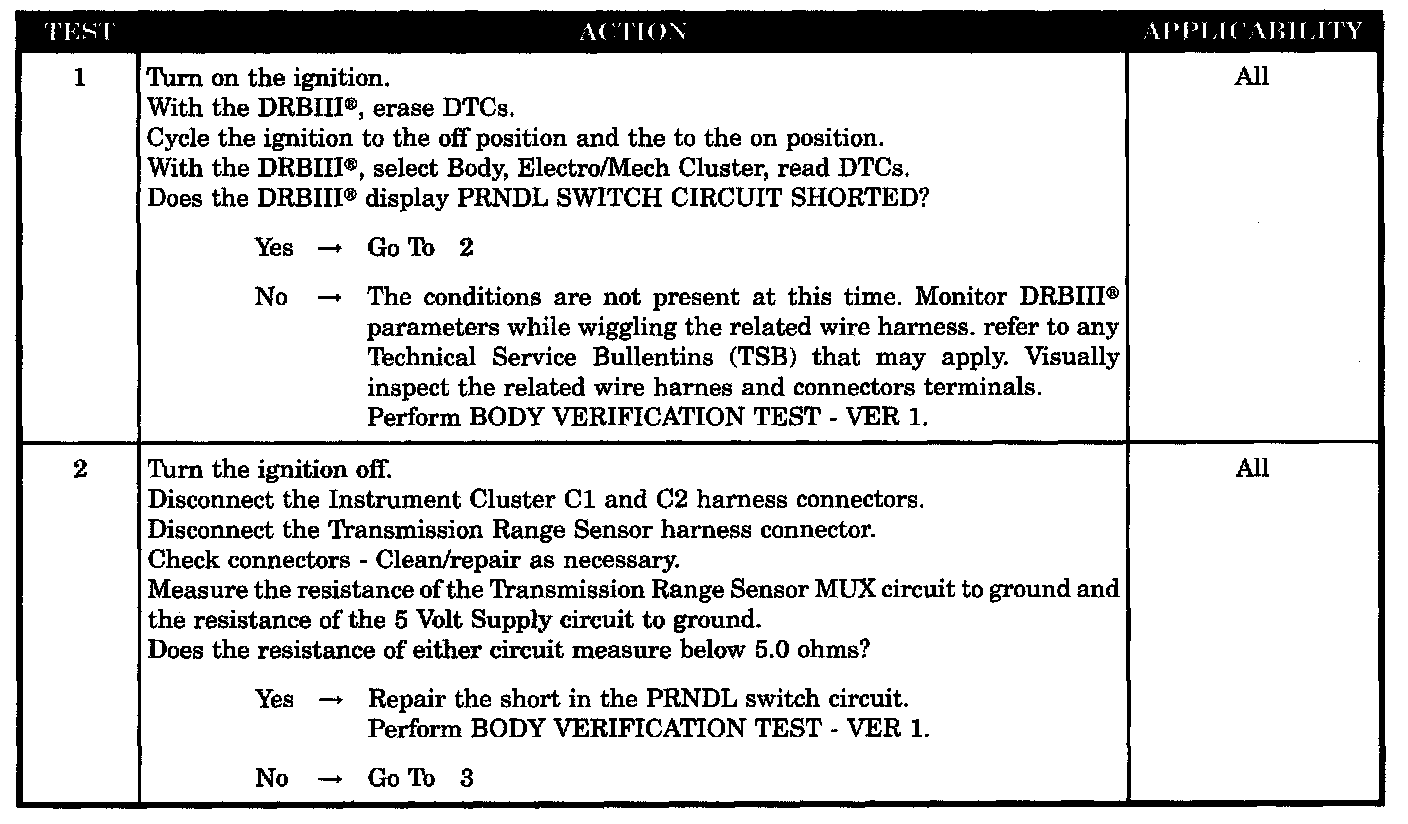

Test 1 - 2:

Test 3:

SYMPTOM
PRNDL SWITCH CIRCUIT SHORTED

WHEN MONITORED
With the ignition on.

SET CONDITION
The Instrument Cluster detects the fault after the second consecutive ignition cycle of greater than 3 (three) seconds.

POSSIBLE CAUSES
- Intermittent condition
- PRNDL switch circuit shorted
- Transmission range sensor
- Instrument cluster
