System Specifications

SPECIFICATIONS

��5:





32RH - AUTOMATIC TRANSMISSION

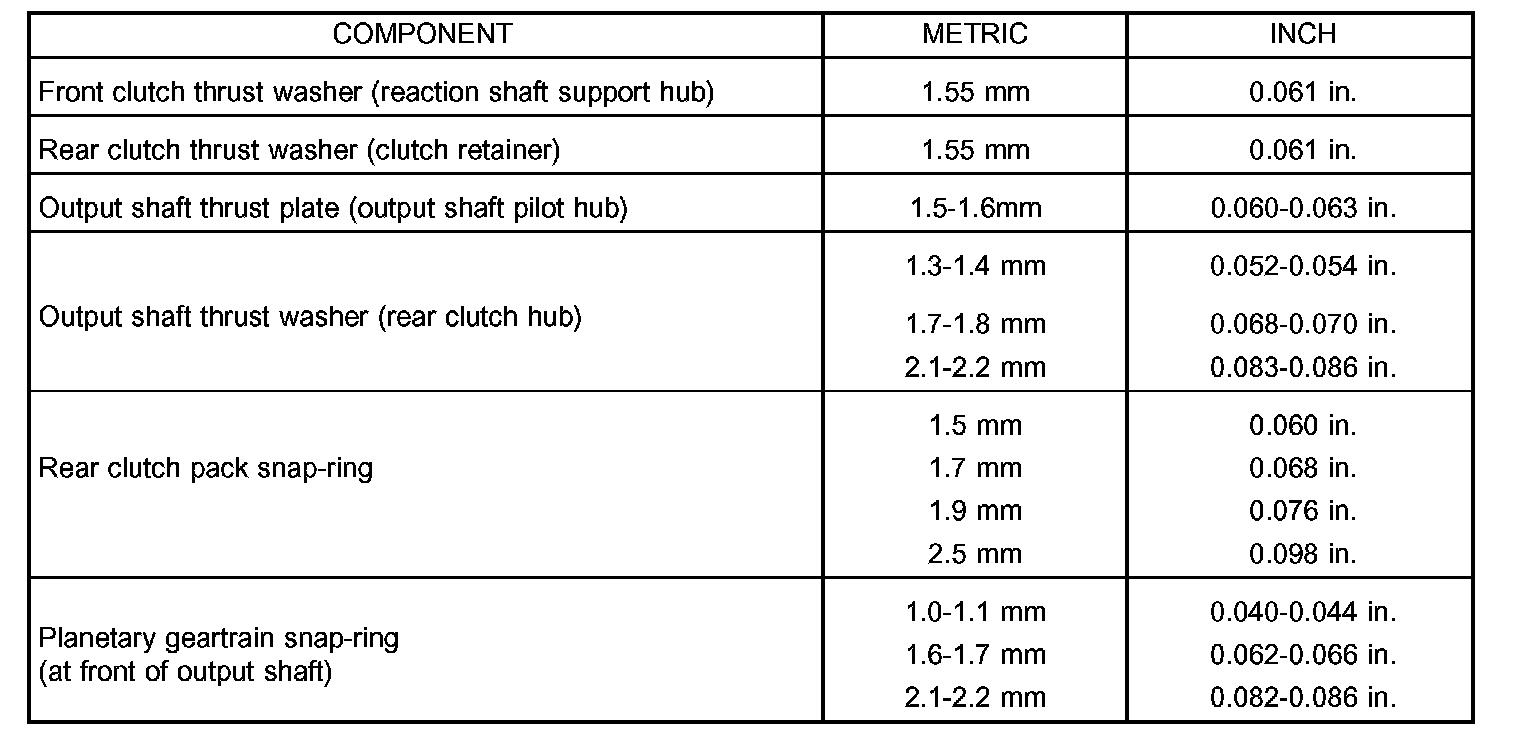

THRUST WASHER/SPACER/SNAP-RING DIMENSIONS

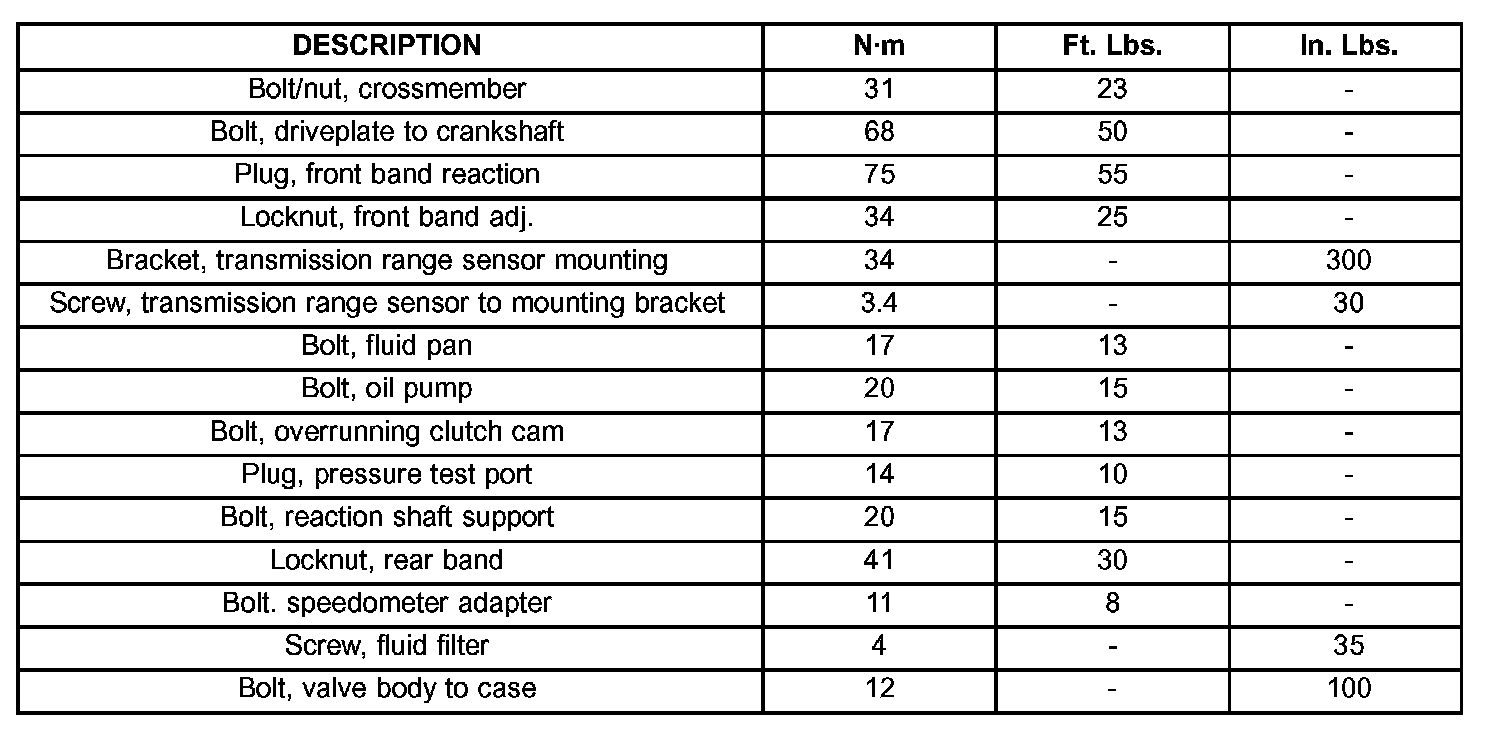

TORQUE SPECIFICATIONS
