Connector Views

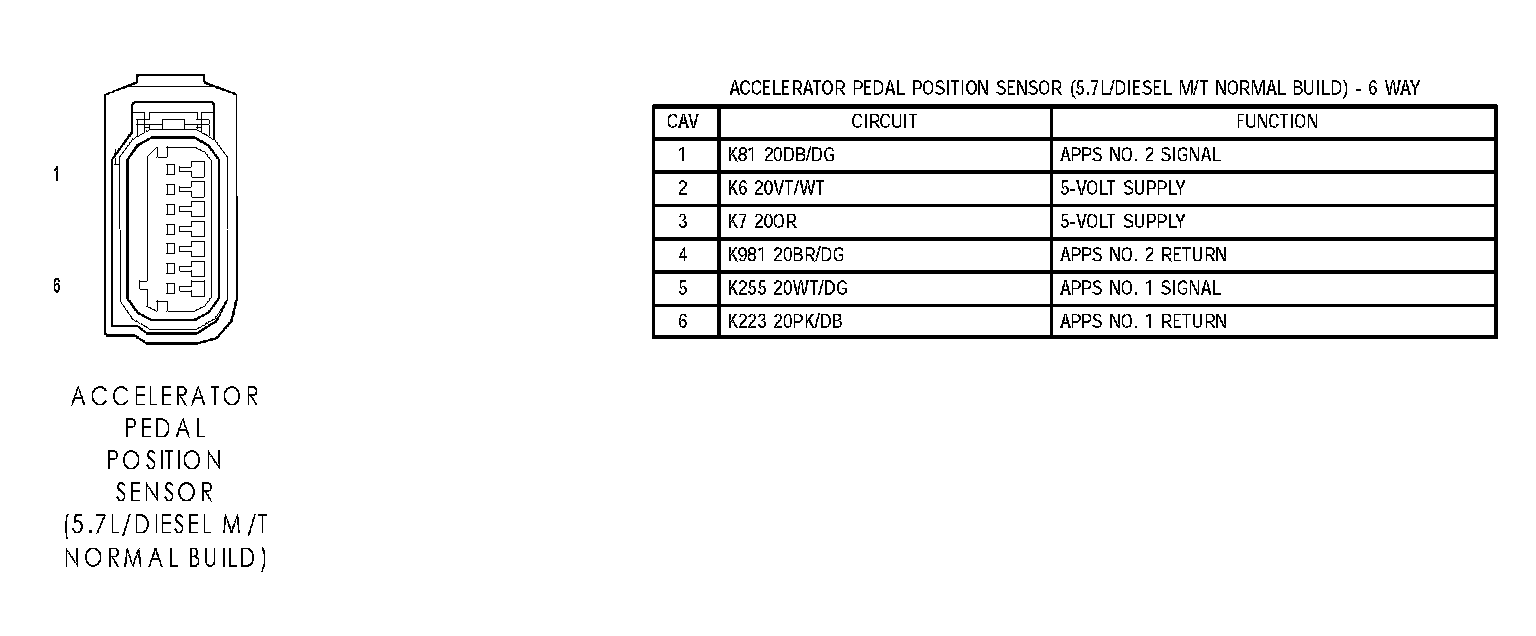

Accelerator Pedal Position Sensor (5.7L/Diesel M/T Normal Build):
Normal Build
Normal Build and Late Build
