Power Seat Switch: Diagrams

Passenger Lumbar Switch:



Power Seat Switch Driver:

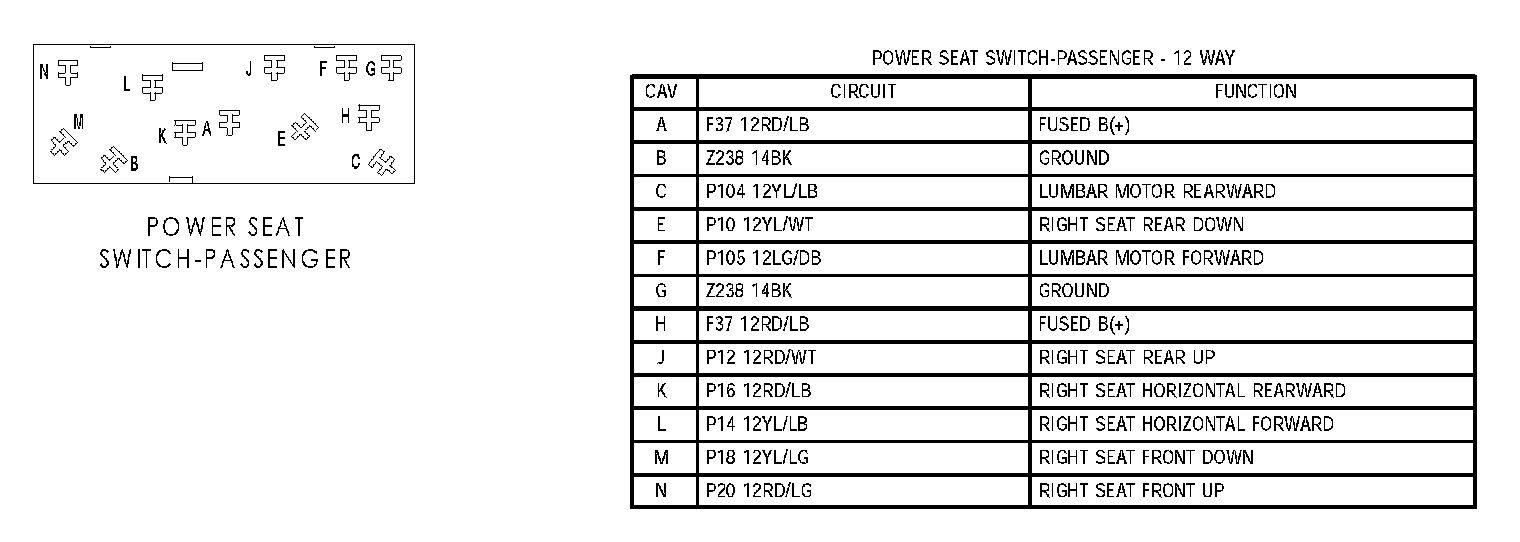

Power Seat Switch Passenger:
