Memory Position Switch Stuck

Test 1 - 3:

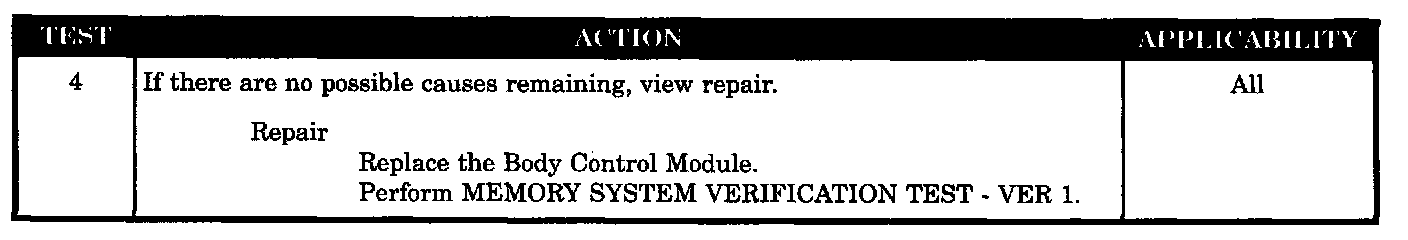

Test 4:

SYMPTOM
MEMORY POSITION SWITCH STUCK

WHEN MONITORED
Anytime the Body Control Module is awake.

SET CONDITION
If the Memory switch is active for over 10 seconds.

POSSIBLE CAUSES
- DTC present
- Memory set switch stuck
- Memory select switch mux short to ground
- Body control module
