Oxygen Sensor
>>
Locations
>>
Connector Locations
Connector Locations

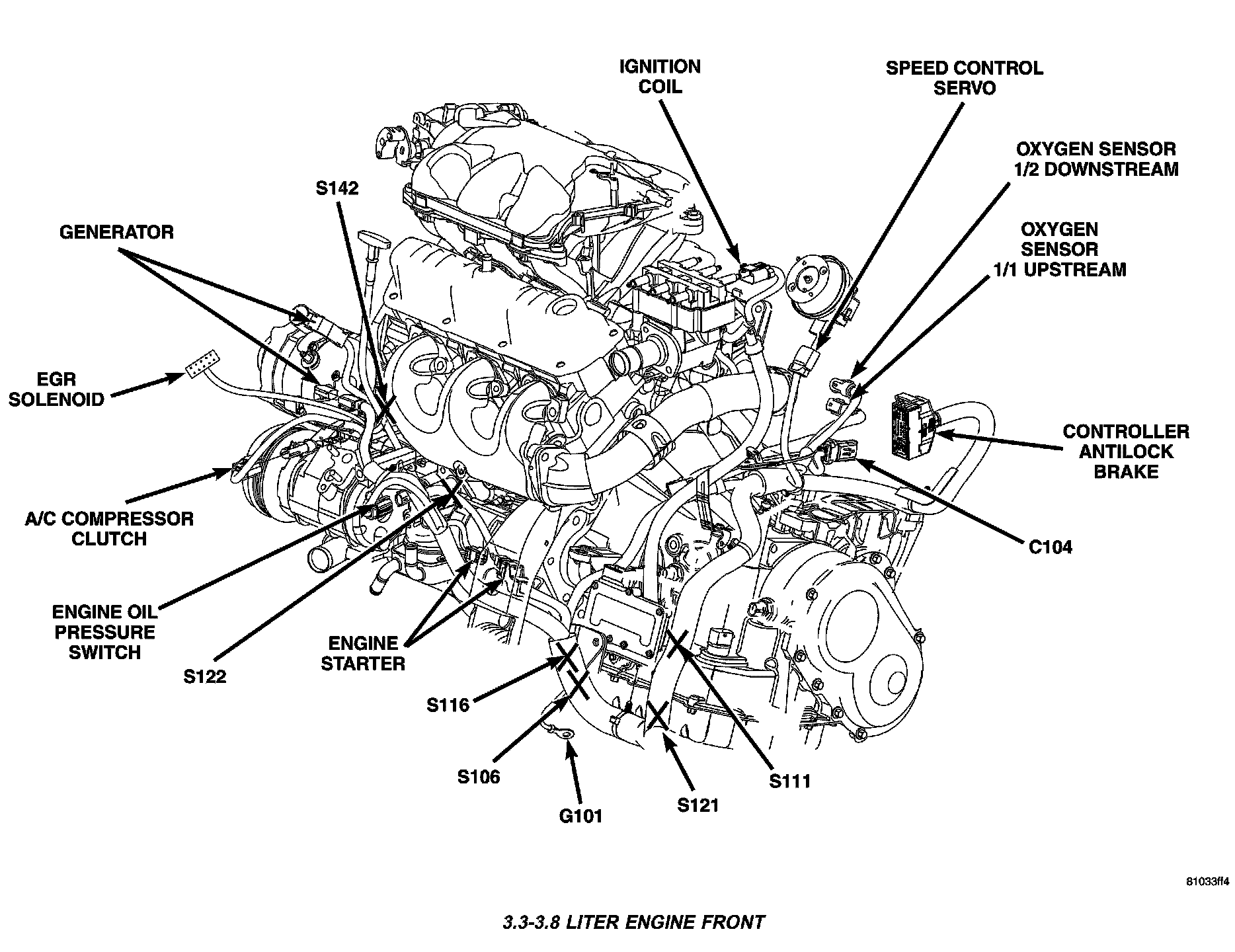

Oxygen Sensors:
3.3 - 3.8 Liter Engine Front:
