Home >> Dodge and Ram >> 2004 >> Dakota 2WD V6-3.7L VIN K >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Glove Box Lamp Switch >> Locations

Glove Box Lamp Switch: Locations

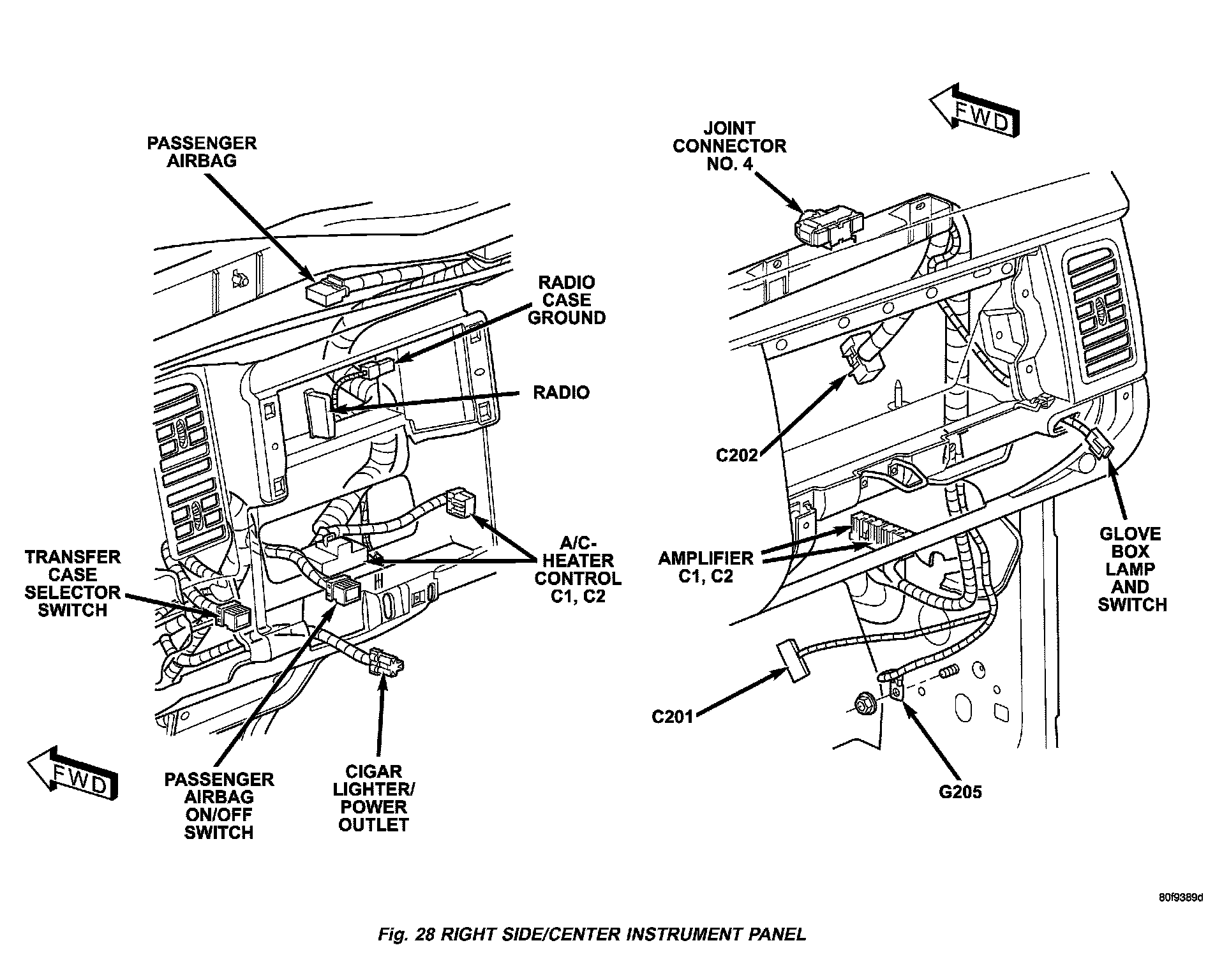

Fig.28 Right Side/Center Instrument Panel:

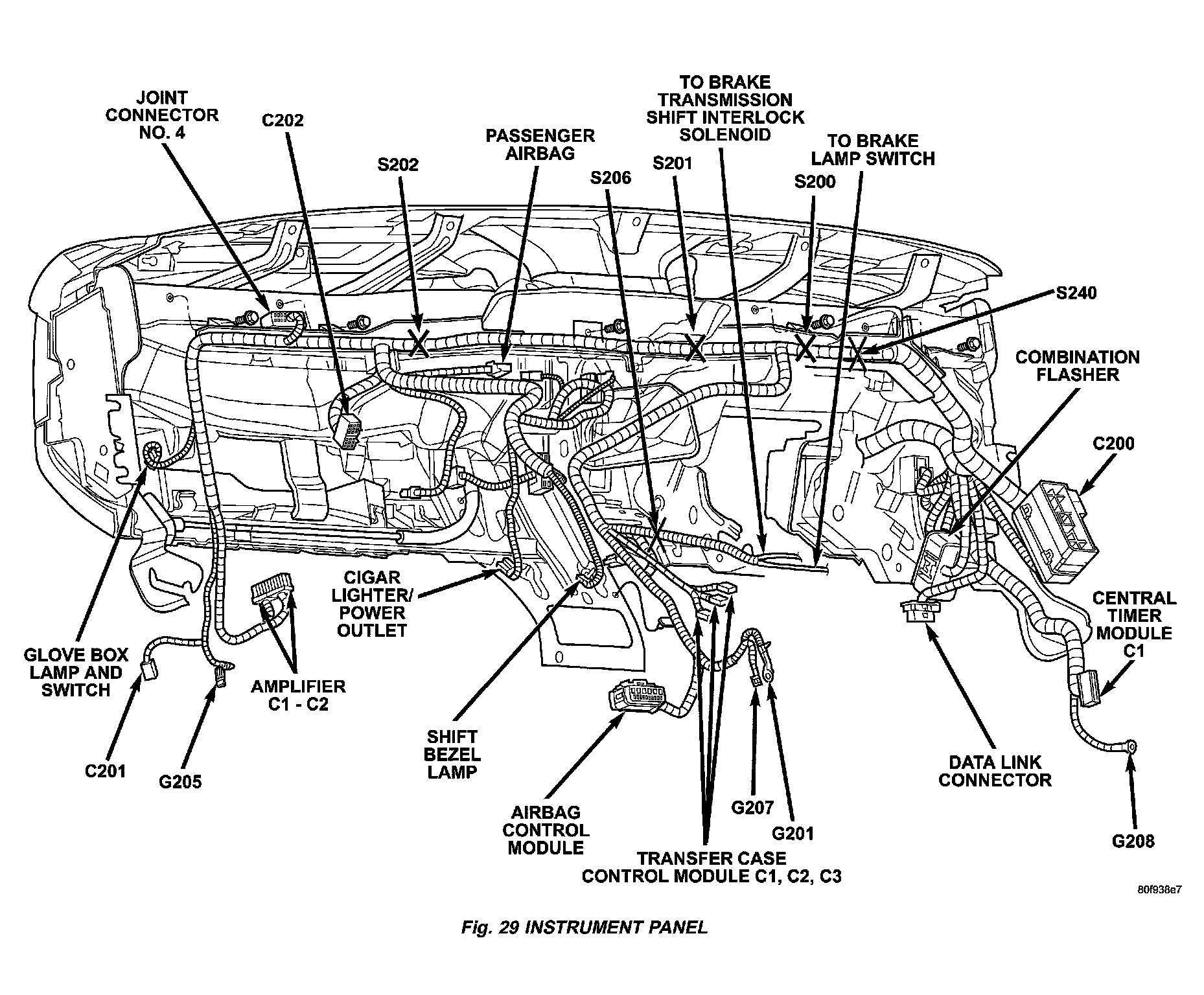

Fig.29 Instrument Panel:

Right Side/Center Instrument Panel:

Instrument Panel:
