Multi-Function Thermal Sensor / Switch: Locations

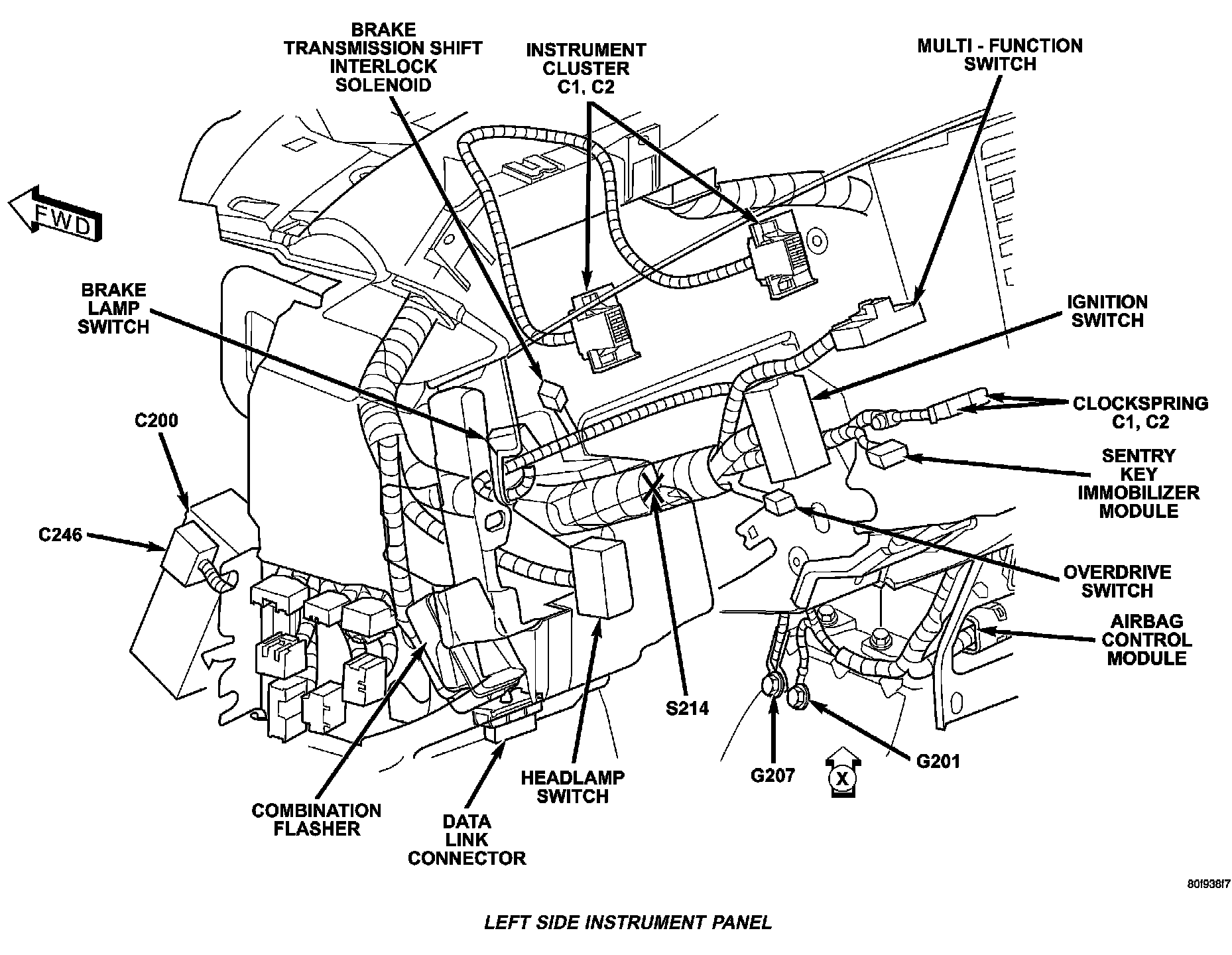

Left Side Instrument Panel:

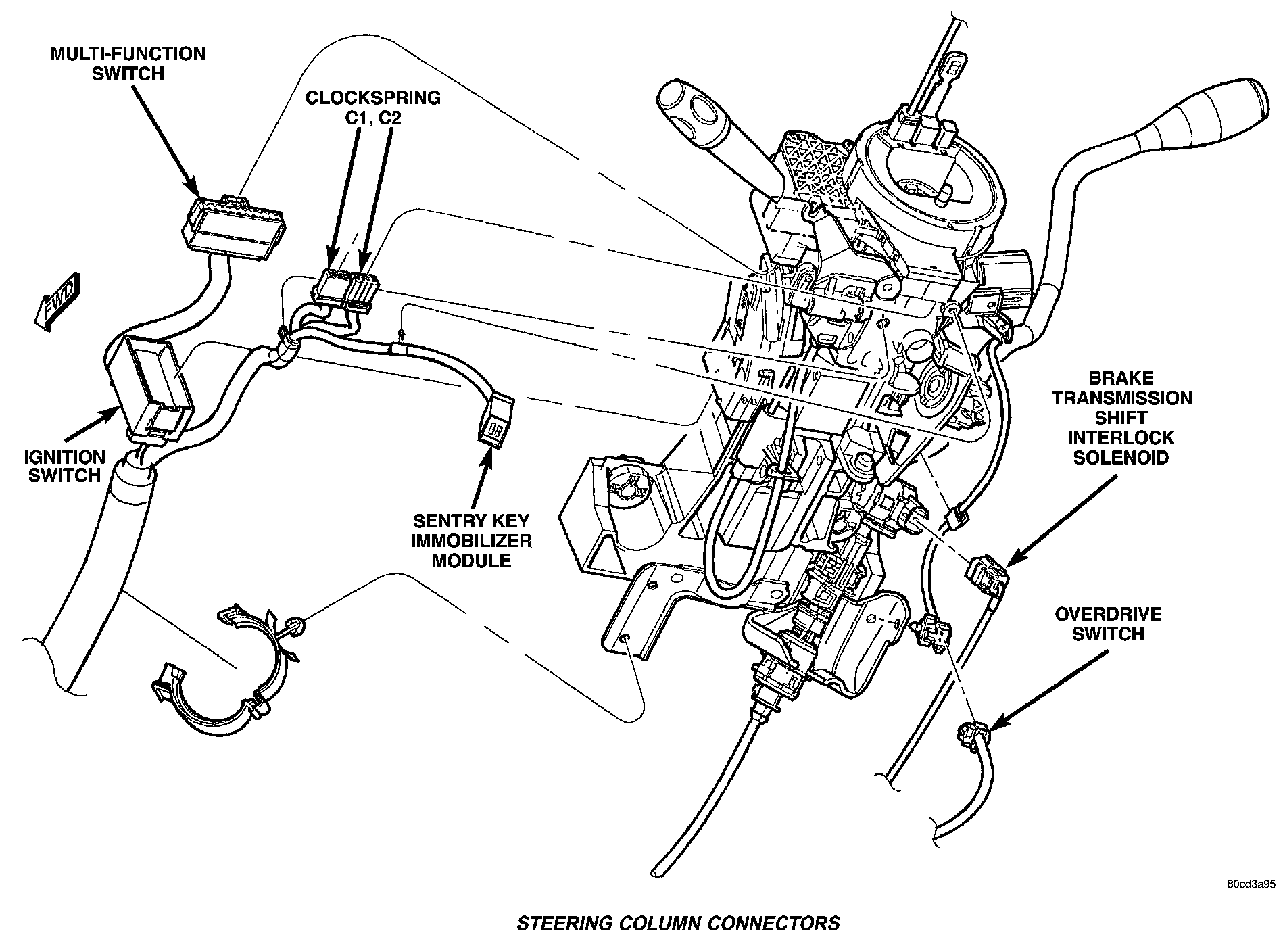

Steering Column Connectors:
