P0760

P0760-OD SOLENOID CIRCUIT





When Monitored:
Initially at power-up, then every 10 seconds thereafter. The solenoid circuits will also be tested immediately after a gear ratio or pressure switch error is detected.

Set Condition:
After three consecutive solenoid continuity test failures, or one failure if test is run in response to a gear ratio or pressure switch error

Possible Causes
- RELATED RELAY DTC'S PRESENT
- (T60) OD SOLENOID CONTROL CIRCUIT SHORT TO OTHER CIRCUITS
- (T60) OD SOLENOID CONTROL CIRCUIT OPEN
- (T60) OD SOLENOID CONTROL CIRCUIT SHORT TO GROUND
- TRANSMISSION SOLENOID/TRS ASSEMBLY
- POWERTRAIN CONTROL MODULE

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Testing and Inspection

Theory of Operation
The Transmission Control System uses six electronically controlled solenoids that allows hydraulic fluid to be applied to various friction elements (clutches) which enables the gear requested. The continuity of the solenoid circuits are periodically tested. Each inactive solenoid is turned on for a few milliseconds, then off. Each active solenoid is turned off for a few milliseconds, then on. This pulsing of voltage to the solenoid causes an inductive spike which can be sensed by the Transmission Control System. If an inductive spike is not sensed by the Transmission Control System during the continuity check, it is tested again. If the test fails three consecutive times, the appropriate Diagnostic Trouble Code (DTC) is set. If the solenoid test is run in response to a gear ratio or pressure switch error, one failure will result in setting the appropriate DTC.

Diagnostic Test
1. RELATED TRANSMISSION RELAY DTC'S PRESENT





With the scan tool, check for other transmission DTC's.
Are there any Transmission Control Relay DTC's present?
Yes >>Refer to the Transmission category and perform the appropriate symptom.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. Verification Tests
No >>Go To 2

2. CHECK TO SEE IF P0760 IS PRESENT





Turn the ignition off to the lock position. Remove the Starter Relay.

Note: Removal of the Starter Relay is to prevent a Transmission, NO RESPONSE, condition and disable the starter.

Install Transmission Simulator, Miller tool # 8333.

Note: Check connectors - Clean/repair as necessary.

Ignition on, engine not running.
With the scan tool, actuate the OD Solenoid.
Monitor the OD Solenoid LED on the Transmission Simulator.
Did the OD Solenoid LED on the Transmission Simulator blink on and off?
Yes >>Go To 3
No >>Go To 4

3. TRANSMISSION SOLENOID/TRS ASSEMBLY





With the scan tool, continue to actuate the OD Solenoid for the period of 2 minutes with the Transmission Simulator still connected.
After 2 minutes of actuation, with the scan tool, stop the actuation and check for transmission DTCs.
Did the DTC P0760 reset during the actuation test?
Yes >>Go To 4
No >>Replace the Transmission Solenoid/TRS Assembly per the Service Information.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.

4. (T60) OD SOLENOID CONTROL CIRCUIT SHORT TO OTHER CIRCUITS





Turn the ignition off to the lock position.
Disconnect the Transmission Simulator, Miller tool # 8333.
Disconnect the PCM harness connectors.
Measure the resistance between the (T60) OD Solenoid Control circuit and all other circuits in the Transmission Solenoid/TRS Assembly harness connector.
Is the resistance below 5.0 ohms between the (T60) OD Solenoid Control circuit and any other circuit(s) in the Transmission Solenoid/TRS Assembly harness connector?
Yes >>Repair the (T60) OD Solenoid Control circuit for a short to other circuit(s).
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.
No >>Go To 5

5. (T60) OD SOLENOID CONTROL CIRCUIT OPEN

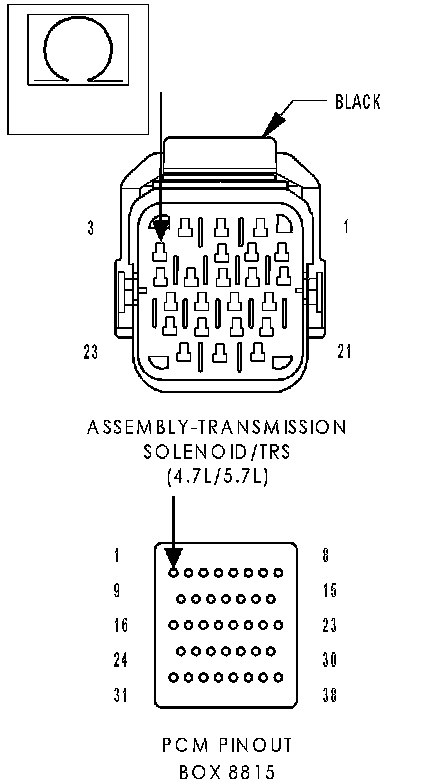

Connect Miller tool # 8815 to the PCM C4 harness connector.

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller special tool # 8815 to perform diagnosis.

Measure the resistance of the (T60) OD Solenoid Control circuit from the Transmission Solenoid/TRS Assembly harness connector to the appropriate terminal of Miller tool # 8815.
Is the resistance above 5.0 ohms?
Yes >>Repair the (T60) OD Solenoid Control circuit for an open.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.
No >>Go To 6

6. (T60) OD SOLENOID CONTROL CIRCUIT SHORT TO GROUND





Measure the resistance between ground and the (T60) OD Solenoid Control circuit.
Is the resistance below 5.0 ohms?
Yes >>Repair the (T60) OD Solenoid Control circuit for a short to ground.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.
No >>Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the PCM per the Service Information. With the scan tool, perform QUICK LEARN.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.
