Instrument Panel Center Bezel

REMOVAL
1. Before proceeding with the following repair procedure, review all warnings and cautions.

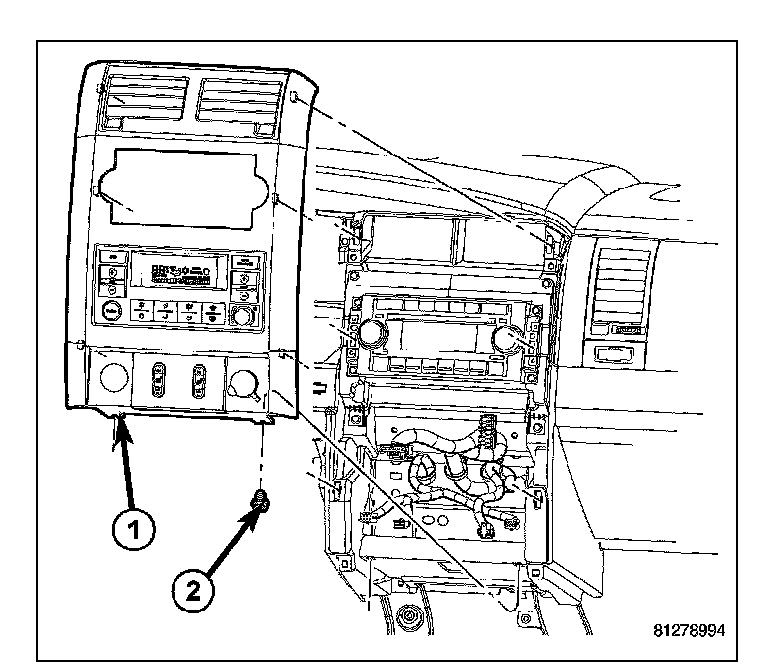

2. Remove the two screws (2) and remove the bezel (1).




3. Disconnect the electrical connectors and remove the bezel.

INSTALLATION
1. Before proceeding with the following repair procedure, review all warnings and cautions.




2. Connect the electrical connectors.




3. Install the center bezel (1) and install the two screws (2).
