Air Bag Control Module: Diagrams

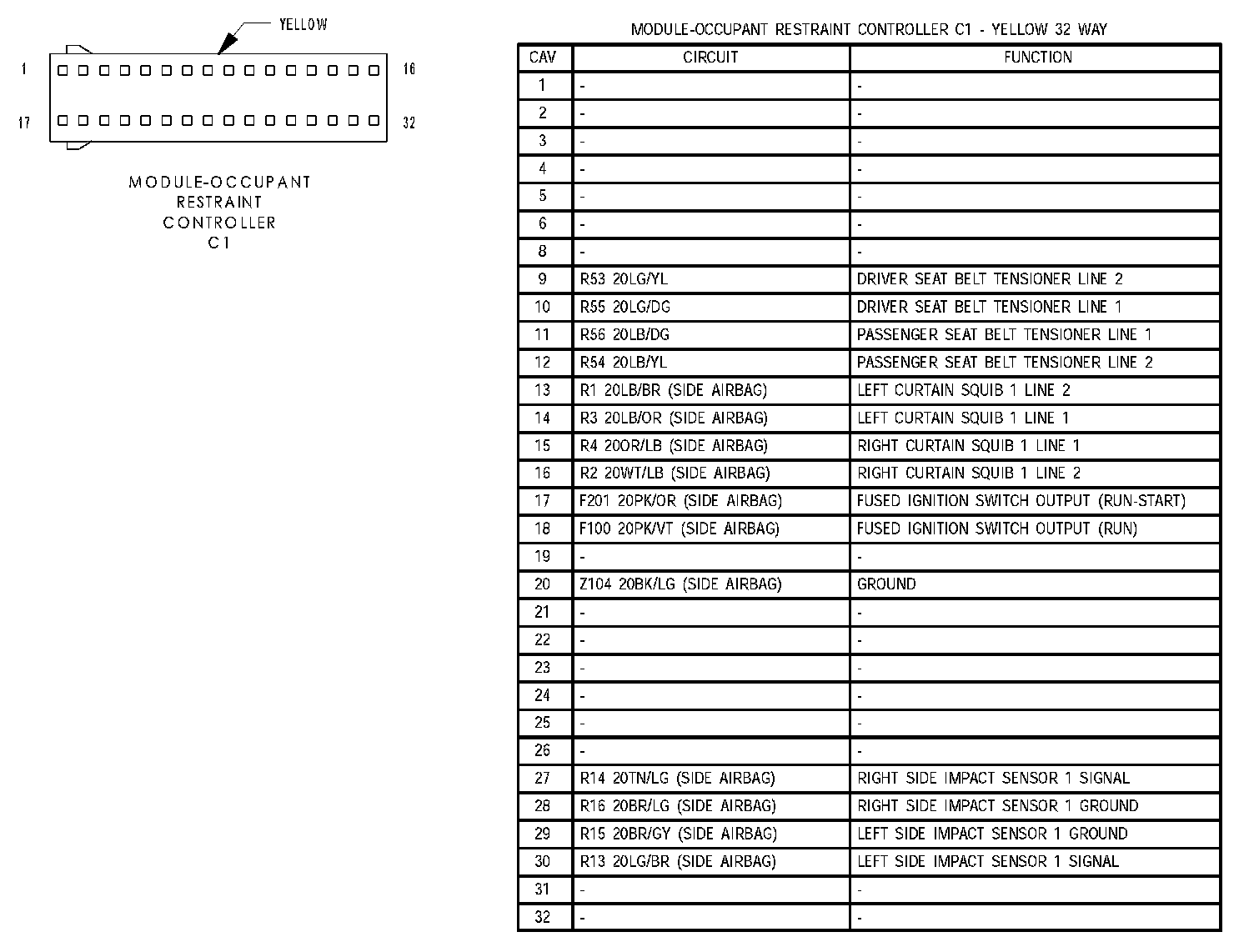

Module Occupant Restraint Controller C1:



Module Occupant Restraint Controller C2 (SAR):
