Impact Sensor: Diagrams

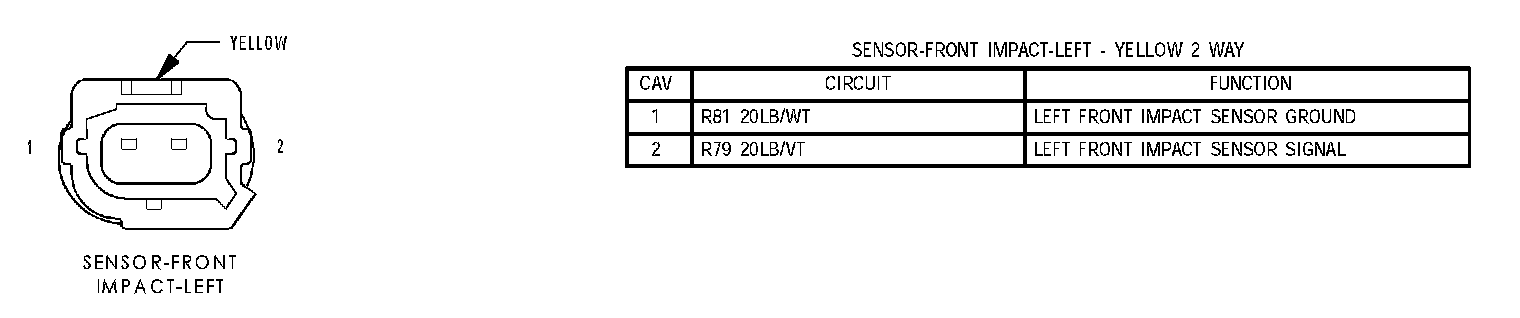

Sensor Front Impact Left:

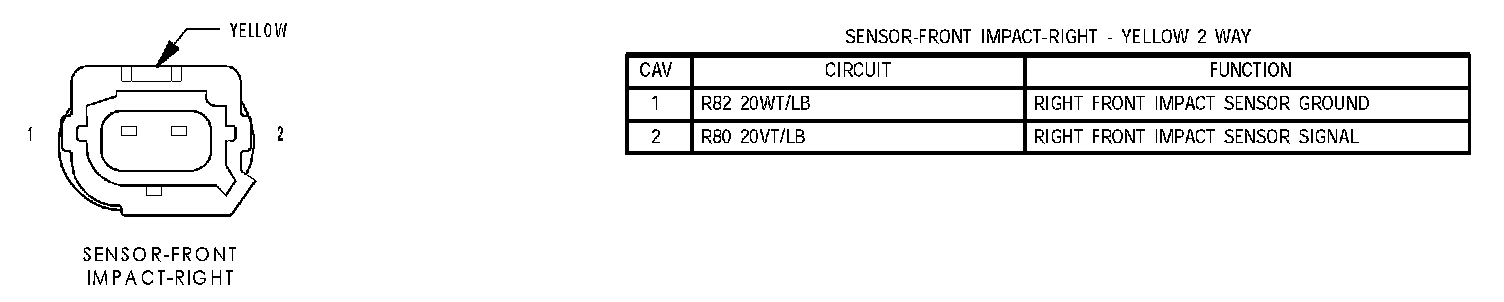

Sensor Front Impact Right:

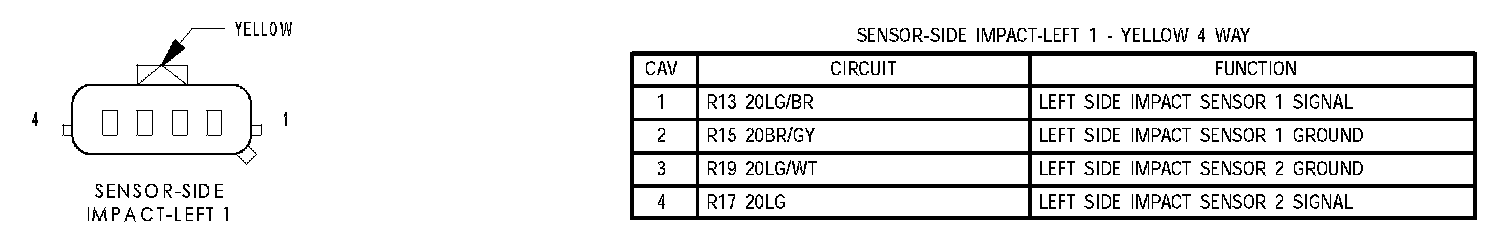

Sensor Side Impact Left:

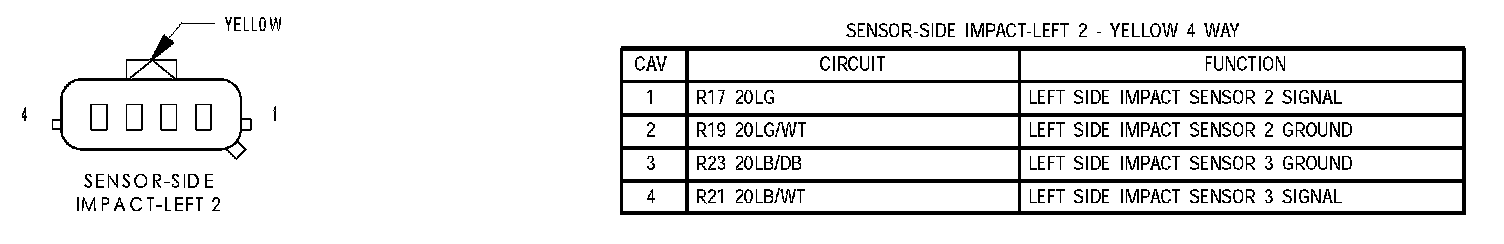

Sensor Side Impact Left 2:

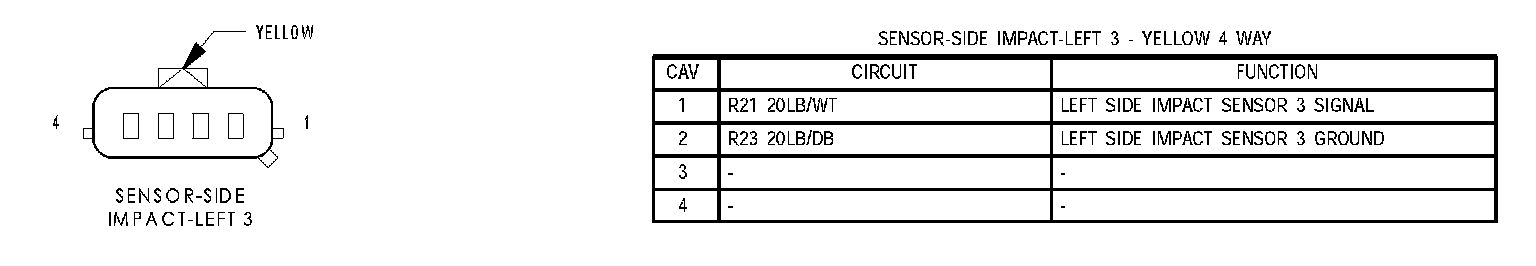

Sensor Side Impact Left 3:

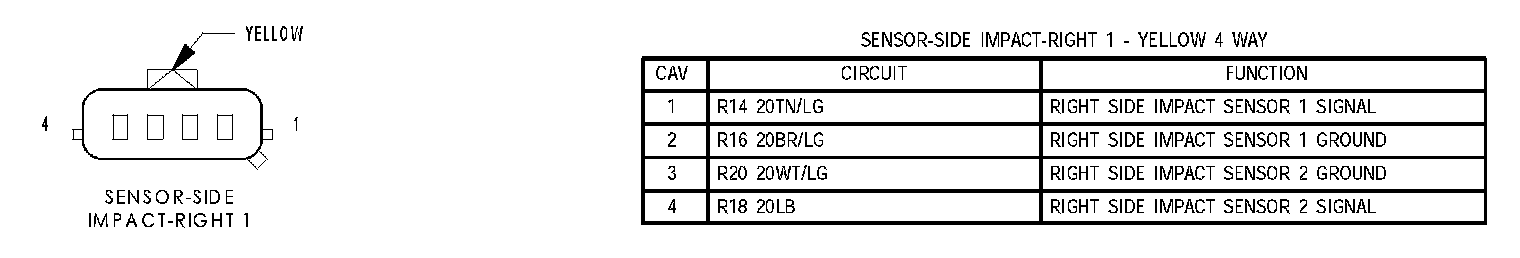

Sensor Side Impact Right 1:

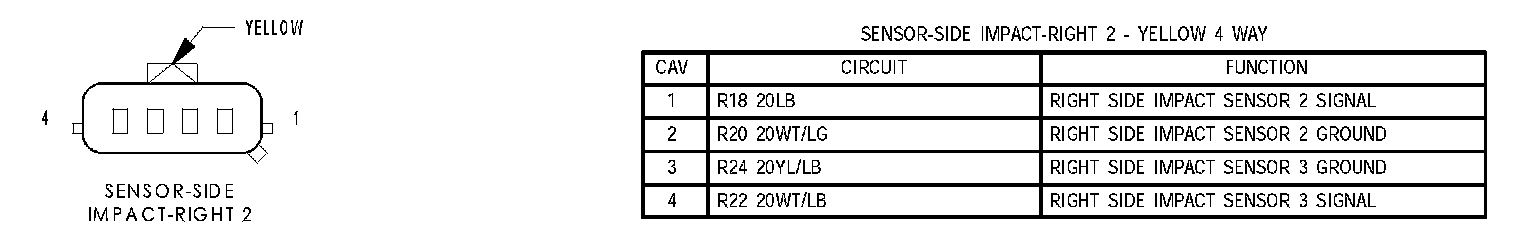

Sensor Side Impact Right 2:

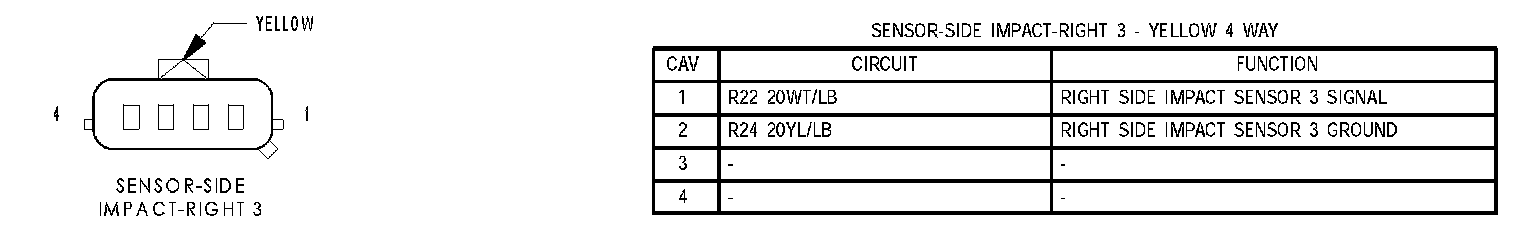

Sensor Side Impact Right 3:
